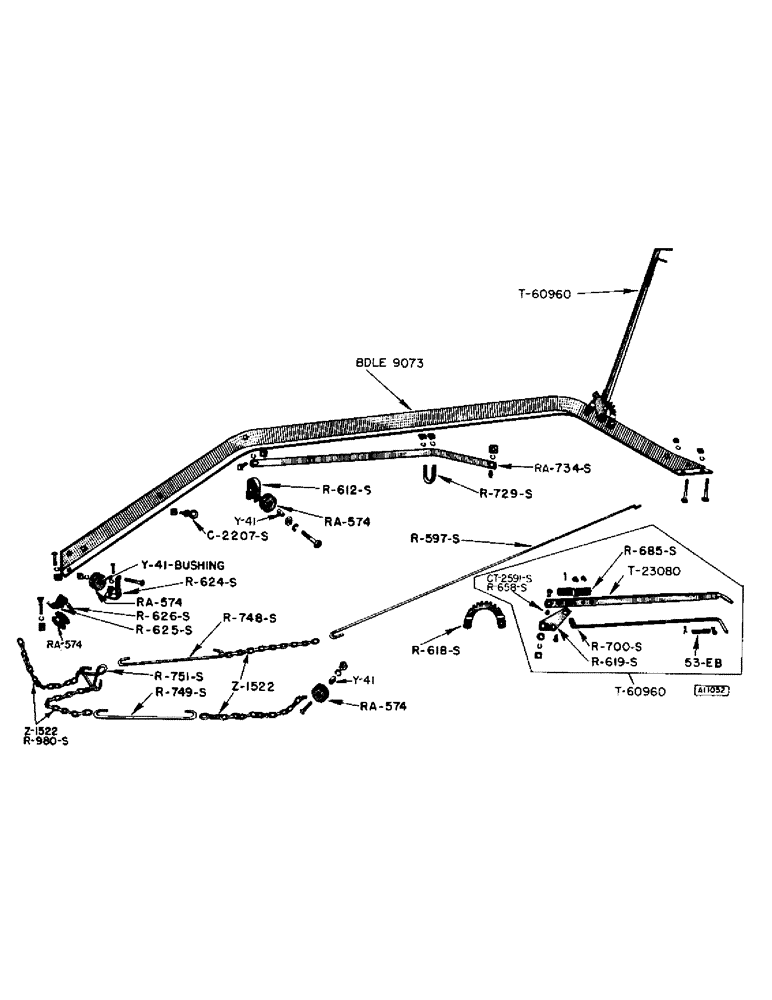

Запчасти Case IH F170 (23) - ARCH ANGLE, LEVER AND CHAIN ASSEMBLY

T23080

LEVER - rear lifting (YR. 39-)

1шт.

7/16" x 1-3/4" carriage bolt w/lockwasher and nut

1шт.

1-1/4" x 1/2" x 14 ga. washer

2шт.

5/16" x 3/4" cotter pin w/13/32" eye

1шт.

T60960

LEVER - rear lifting (Complete) (YR. 39-)

1шт.

C2207S

EYEBOLT - lift rod (YR. 39-)

1шт.

7/16" N.C. hex. nut

2шт.

CT2591S

BUSHING - rear lift lever (11/16" rd. x 11/16") (YR. 53-)

1шт.

RA574

SHEAVE - pulley (YR. 39-)

4шт.

3/8" x 2-3/4" N.C. hex. bolt w/lockwasher and nut

1шт.

R597S

ROD - lifting lever (3/8" rd. x 63") (YR. 39-)

1шт.

R606S

LEVER - rear lifting (Use T23080)

1шт.

AXR606S

LEVER - rear lifting (Use T60960)

1шт.

R612S

CLIP - pulley (Yr. 39-)

1шт.

3/8" x 2-3/4" carriage bolt w/lockwasher and nut

1шт.

R618S

QUADRANT - lever, outer end of reel (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R619S

PLATE - rod, rear lift lever (YR. 39-)

1шт.

3/8" x 1" round head rivet

1шт.

R624S

CLIP - pulley (YR. 39-)

1шт.

3/8" x 3" carriage bolt w/lockwasher and nut

1шт.

3/8" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

1шт.

R625S

CLIP - pulley sleeve (YR. 39-)

2шт.

3/8" x 7/8" round head rivet

1шт.

3/8" x 2-1/2" carriage bolt w/lockwasher and nut

1шт.

R626S

SUPPORT - pulley sheave (YR. 39-)

1шт.

7/16" x 1-3/4" carriage bolt w/lockwasher and nut

1шт.

R658S

X

BUSHING - rear lift lever (3/8" pipe x 11/16") (Use CT2591S) (YR. 39-53)

1шт.

R685S

GUIDE - plunger (YR. 39-)

1шт.

5/16" x 1" round head rivet

2шт.

R700S

ROD - latch, rear lift lever (3/8" rd. x 32-7/8") (YR. 39-)

1шт.

1/8" x 3/4" cotter pin

2шт.

RA724S

ARCH - (Use Bdle 9073)

1шт.

R729S

"U" BOLT - front stripper angle support (1/2" rd. x 6-1/8") (YR. 39-)

1шт.

1/2" lockwasher and nut

2шт.

RA734S

SUPPORT - front stripper angle (YR. 39-)

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher and nut

2шт.

R748S

ROD - rear lift, long (3/8" rd. x 20-5/8") (YR. 39-)

1шт.

R749S

ROD - rear lift, short (3/8" rd. x 18-5/16") (YR. 39-)

1шт.

R751S

EVENER - (YR. 39-)

1шт.

R980S

CHAIN - (18 link #40 Elwell straight machine) (YR. 58-)

4шт.

Y41

BUSHING - pulley (YR. 39-)

4шт.

Z1522

CHAIN - (18 links - #4-0 Elwell straight machine) (YR. 39-)

4шт.

53EB

SPRING - lever latch rod (17/32" I.D. x 23-32" O.D. x 3" long, 14 coils, compression) (YR. 39-)

1шт.

BDLE9073

ARCH - (YR. 39-)

1шт.
