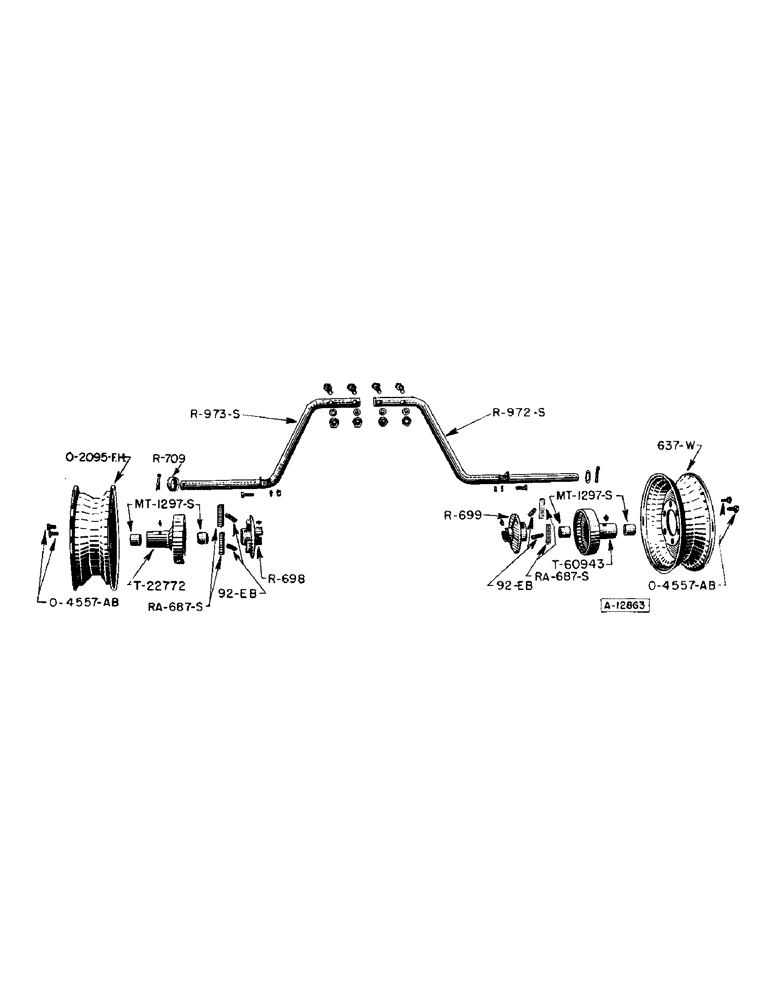

Запчасти Case IH F170 (22) - WHEELS AND SUPPORT AXLES, LOW WHEEL

T22772

BOX - wheel, w/(2) MT1297S bushings for O2095FH wheel (See T60943) (YR. 57-)

2шт.

T60943

BOX - wheel w/(2) MT1297S bushings (See T22772) (YR. 52-)

2шт.

B219-1

1/8" str. Lincoln fitting #5000

2шт.

MT1297S

BEARING - wheel box (#1704 duplex bearing) (YR. 52-)

4шт.

R697

BOX - wheel use T60943 (See T22772)

1шт.

R698

PLATE - pawl, L.H. (YR. 52-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

R699

PLATE - pawl, R.H. (YR. 52-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

R709

COLLAR - take up (YR. 53-)

2шт.

R711

BOX - wheel use T22772 (See T60943)

1шт.

RA687S

PAWL

- ratchet (YR. 39-)

4шт.

R972S

AXLE - support, R.H. (1-1/2" rd. x 42") (YR. 52-)

1шт.

1/2" x 1-3/4" N.C. hex. bolt w/lockwasher and nut

1шт.

5/8" x 2-1/2" N.C. hex. bolt w/lockwasher and nut

2шт.

2-1/4" x 1-9/16" x 16 ga. washer

3шт.

1/4" x 2" cotter pin

1шт.

R973S

AXLE - support, L.H. (1-1/2" rd. x 37") (YR. 52-)

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher and nut

1шт.

5/8" x 2-1/2" N.C. hex. bolt w/lockwasher and nut

2шт.

2-1/4" x 1-9/16" x 16 ga. washer

3шт.

1/4" x 2" cotter pin

1шт.

O4557AB

BOLTS - wheel (YR. 52-)

12шт.

92EB

SPRING - pawl plate (15/32" I.D. x 19/32" O.D. x 2-1/4" long, 2 coils, compression) (YR. 39-)

4шт.

637W

WHEEL - (Machinery item) for 6:70 x 15 tire (See O-2095 F.H.) (YR. 52-57)

2шт.

O2095FH

WHEEL - for 6:70 x 15 tire (See 637W) (YR. 57-)

2шт.

641W

WHEEL - main (Use O2095FH)

1шт.
