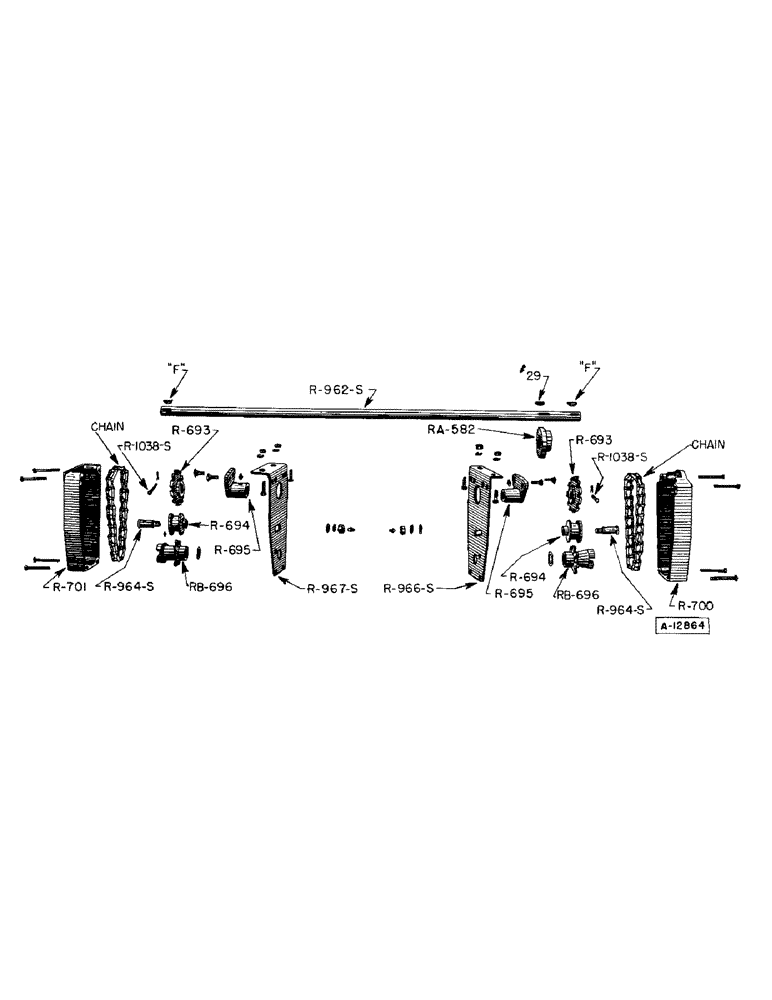

Запчасти Case IH F170 (21) - MAIN AXLE AND DRIVE CHAIN ASSEMBLY, LOW WHEEL

B12497

CHAIN - roller (20 links #2060 w/contour side bars) (YR. 52-)

1шт.

B12534

LINK

- connecting (#2060 w/contour side bars) (YR. 52-)

1шт.

B12535

LINK

- offset connecting (#2060 w/contour side bars) (YR. 52-)

1шт.

B12536

LINK - roller (#2060 w/contour side bars) (YR. 52-)

1шт.

RA582

CLUTCH - axle (YR. 52-)

1шт.

R693

SPROCKET - drive, main axle (YR. 52-)

2шт.

R694

PULLEY - ilder (YR. 52-)

2шт.

R695

BEARING - main axle (YR. 52-)

2шт.

B219-31

1/8" x 30 degrees Lincoln fitting #5100

2шт.

1/2" x 1-1/2" carriage bolt w/lockwasher and nut

4шт.

RB696

SPROCKET ASSY.

SPROCKET - drive (YR. 52-)

2шт.

B219-20

1/4" straight Lincoln fitting #5042

2шт.

2-1/4" x 1-9/16" x 16 ga. washer

2шт.

R700

COVER - R.H. drive chain (YR. 52-)

1шт.

3/8" x 3-3/4" N.C. hex. bolt w/lockwasher and nut

4шт.

R701

COVER - L.H. drive chain (YR. 52-)

1шт.

3/8" x 3-3/4" N.C. hex. bolt w/lockwasher and nut

4шт.

R962S

AXLE - main (1-7/16" rd. x 68-1/8") (YR. 52-)

1шт.

"F" Woodruff key (Drive sprocket)

2шт.

#29 Woodruff key (Clutch)

1шт.

R964S

STUD - idler (1-3/8" rd. x 3-7/16") (YR. 52-)

2шт.

3/4" lockwasher and N.C. hex. nut

2шт.

1-1/2" x 13/16" x 14 ga. washer

2шт.

R966S

BRACKET - axle, R.H. (YR. 52-)

1шт.

1/2" x 1-1/2" carriage bolt w/lockwasher and nut

2шт.

R967S

BRACKET - axle, L.H. (YR. 52-)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

2шт.

R1038S

PIN - rivet, sprocket (5/16" x 2-3/4" button head drilled) (YR. 52-)

2шт.

1/8" x 3/4" cotter pin

2шт.

CHAIN - drive (23 pitches riveted roller chain w/contour side bars and including one offset connecting link) (Use 1-B12497 chain, 1-B12534 conn. link, 1-B12535 offset link and 1-B12536 roller link #2060)

2шт.
