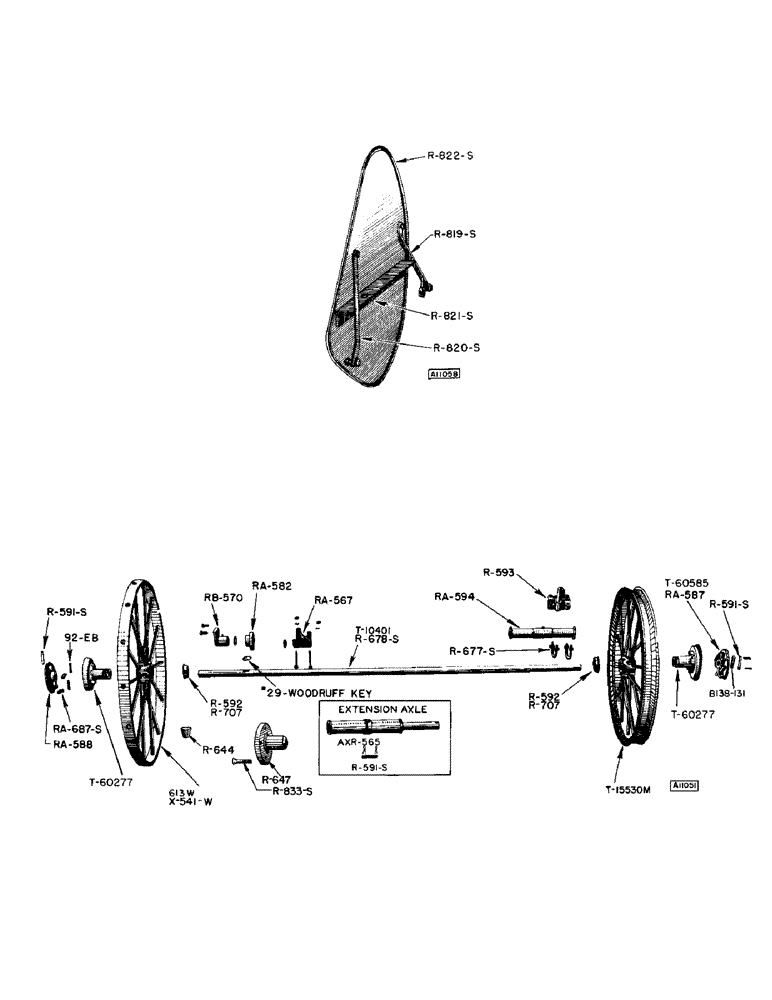

Запчасти Case IH F170 (18) - SHIELD FOR REEL HEAD

R819S

BRACE - sand guard to cross angle (YR. 40-)

1шт.

1/4" x 1" carriage bolt w/lockwasher and nut

1шт.

R820S

BRACE - front frame to sand guard (YR. 40-)

1шт.

1/4" x 1" carriage bolt w/lockwasher and nut

1шт.

R821S

ANGLE - sand guard front frame (1-1/2" x 1-1/2" x 1/2" x 13") (YR. 40-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

1шт.

R822S

GUARD - sand (YR. 40-)

1шт.

1/4" x 1/2" carriage bolt w/lockwasher and nut

2шт.

1/4" x 5/8" carriage bolt w/lockwasher and nut

3шт.

T1039

PLATE - pawl, L.H. (Use T60585)

1шт.

T10401

AXLE - main (Requires T60585 L.H. pawl plate) (YR. 55-)

1шт.

3/8" x 3-1/4" N.C. hex. bolt w/lockwasher and nut

1шт.

T60277

BOX - wheel (See R647) (YR. 39-)

2шт.

B219-23

1/4" str. Lincoln fitting #5050

2шт.

T60585

PLATE - pawl, L.H. (Use on T10401 axle-requires B138-131 roll pin) (YR. 55-)

1шт.

RA567

BEARING - center axle (YR. 39-)

1шт.

3/8" x 4" carriage bolt w/lockwasher and nut

1шт.

3/8" x 4-1/4" carriage bolt w/lockwasher and nut

1шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

RB570

BEARING - main axle (YR. 39-)

1шт.

1/2" x 1-3/4" carriage bolt w/lockwasher and nut

2шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

RA582

CLUTCH - axle (YR. 39-)

1шт.

No. 29 Woodruff key

1шт.

RA587

PLATE - pawl, L.H. (YR. 39-)

1шт.

RA588

PLATE - pawl, R.H. (Use on T10401 axle) See T60585 (YR. 39-55)

1шт.

RC589

BOX - wheel (See R647) (Use T60277)

1шт.

R592

NUT - wheel (Use on T60277 wheel box) (YR. 39-53)

2шт.

R593

SUPPORT - bearing, L.H. main axle (YR. 39-)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

1шт.

1/2" x 4" N.C. hex. bolt w/lockwasher and nut

2шт.

RA594

BEARING AND SLEEVE - L.H. main axle (YR. 39-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

R644

CLEAT - main wheel (Special for Peanuts) (YR. 43-) (Steel)

56шт.

7/16" x 2-1/4" carriage bolt w/lockwasher and nut (Steel)

56шт.

R647

BOX - wheel (For French and Hecht wheel (YR. 44-49) (Steel)

2шт.

R707

NUT - wheel (Use on T60277 wheel box (YR. 53-)

1шт.

R591S

PIN - main axle (1/2" rd. x 3-7/16") (Use in RA587 and RA588) (YR. 39-)

1шт.

1/8" x 3/4" cotter pin

1шт.

R677S

U-BOLT

"U" BOLT - L.H. main axle bearing (1/2" rd. x 8-1/4") (YR. 39-)

2шт.

1/2" lockwasher and nut

4шт.

R678S

AXLE - main (Use T10401 and T60585) (YR. 39-55)

1шт.

2" x 1-1/2" x 16 ga. washer

1шт.

RA687S

PAWL

- ratchet (YR. 39-)

4шт.

R833S

BOLT - for wheel box R647 (7/16" x 2-3/4" P#3 w/hex. nut) (YR. 44-49) (Steel)

4шт.

B138-131

PIN - roll, pawl plate (3/8" x 2-3/4") (YR. 55-58)

1шт.

92EB

SPRING - pawl (15/32" I.D. x 19/32" O.D. x 2-1/4" long, 2 coils, compression) (YR. 39-)

4шт.

A527W

WHEEL - pneumatic (Machinery item) for 4:00 x 36 tire and tube (Use T15530M) (YR. 39-57) (Pneumatic)

2шт.

A541W

WHEEL - steel (Machinery item) (Use 613W) (YR. 39-57) (Steel)

2шт.

X541W

WHEEL - steel (Special for Peanuts) (Machinery item) (Same as A541W except drilled for attaching R644 cleats) (YR. 43-) (Steel)

2шт.

T15530M

WHEEL - pneumatic for 4:00 x 36 tire and tube (YR. 57-) (Pneumatic)

2шт.

613W

WHEEL - steel (Machinery item) (YR. 57-) (Steel)

2шт.

AXR565

SLEEVE - extension (YR. 39-)

1шт.

R591S

PIN - extension sleeve to axle (1/2" rd. x 3-7/16") (YR. 47-)

1шт.

1/8" x 3/4" cotter pin

2шт.
