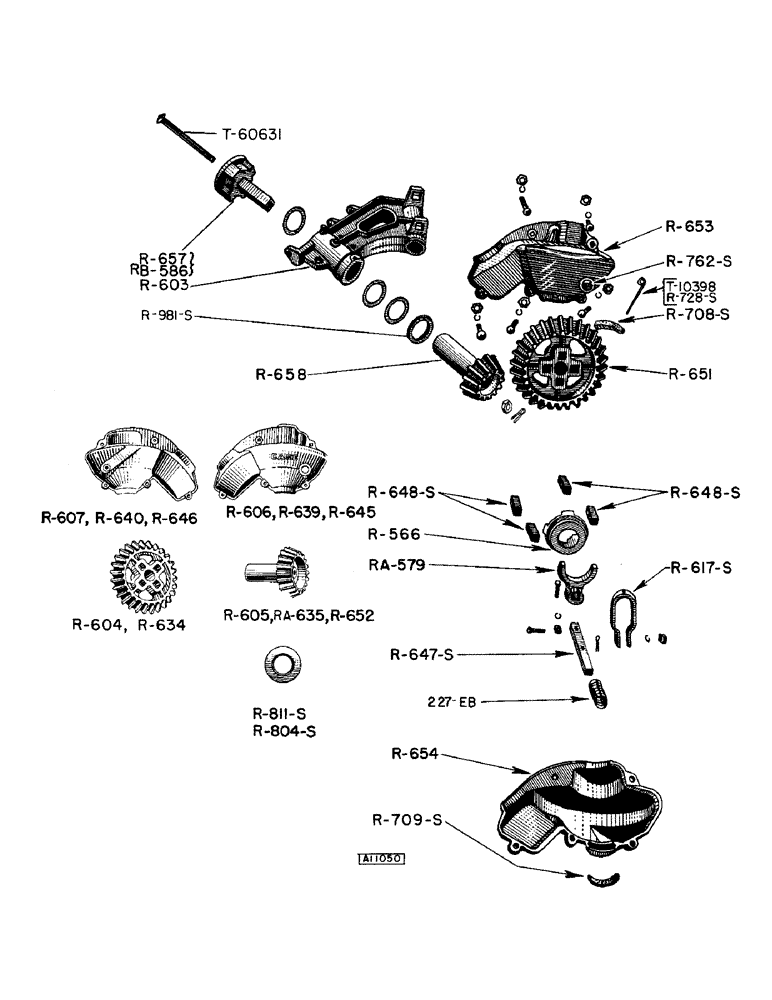

Запчасти Case IH F170 (16) - DRIVE GEAR AND GEAR CASE ASSEMBLY

T10398

GAUGE - oil (YR. 55-)

1шт.

T60631

BOLT - carriage (1/2" x 8" drilled) coupling (YR. 49-)

1шт.

1/2" N.C. hex. slotted nut

1шт.

1/8" x 1" cotter pin

1шт.

R566

COLLAR - clutch (YR. 39-)

1шт.

RA579

FORK - shifter (YR. 39-)

1шт.

5/16" x 1-3/4" N.C. hex. bolt w/lockwasher and nut

1шт.

RB586

COUPLING - drive, reel shaft bearing (See R657) (YR. 39-40)

1шт.

R603

HOSE

FRAME - gear (YR. 39-)

1шт.

1/8" straight Lincoln fitting #5000

2шт.

R604

GEAR - drive (27 tooth) (YR. 1939)

1шт.

R605

PINION - drive (18 tooth) (YR. 1939)

1шт.

R606

HOUSING - upper gear (YR. 1939)

1шт.

R607

HOUSING - lower gear (YR. 1939)

1шт.

R634

GEAR - drive, 29 tooth (See R651) (YR. 40-48)

1шт.

RA635

PINION - drive (16 tooth) (See R652) (YR. 40-47)

1шт.

R639

HOUSING - upper gear (YR. 1940)

1шт.

R640

HOUSING - lower gear (YR. 1940)

1шт.

R645

HOUSING - upper gear (See R653) (YR. 40-48)

1шт.

R646

HOUSING - lower gear (See R654) (YR. 40-48)

1шт.

R651

GEAR - drive, 30 tooth (See R634) (YR. 48-)

1шт.

R652

PINION - drive (See RA635) (See R658) (YR. 47-49)

1шт.

R653

HOUSING - upper gear (See R645) (YR. 48-)

1шт.

3/8" x 1-1/2" carriage bolt w/lockwasher and nut

1шт.

3/8" x 2-1/2" carriage bolt w/lockwasher and nut

3шт.

3/8" x 3-3/4" carriage bolt w/lockwasher and nut

1шт.

R654

HOUSING - lower gear (See R646) (YR. 48-)

1шт.

1/4" pipe plug

1шт.

R657

COUPLING - drive, reel shaft bearing (See RB586) (YR. 49-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

R658

PINION - drive, 13 tooth (See R652) (YR. 49-)

1шт.

3-1/2" x 2-1/2" x 22 ga. washer

3шт.

3" x 2-9/32" x 22 ga. washer

1шт.

R617S

HANDLE - shifting, clutch (YR. 39-)

1шт.

5/16" x 1-3/4" carriage bolt w/lockwasher and nut

1шт.

R647S

SHAFT - clutch shifter (3/4" sq. x 7-3/4") (YR. 39-)

1шт.

1/4" x 1-1/4" cotter pin

1шт.

R648S

FINGER - clutch (YR. 39-)

4шт.

R708S

FELT STRIP - gear housing, upper (YR. 39-)

1шт.

R709S

FELT STRIP - gear housing, lower (YR. 39-55)

1шт.

R728S

GAUGE - oil (Use T10398) (YR. 39-55)

1шт.

R762S

PLUG - pipe, gear housing (YR. 39-)

1шт.

R804S

WASHER - for R605 pinion (YR. 1939)

1шт.

R811S

WASHER - wear, pinion and frame (Use R981S) (YR. 1940)

1шт.

R840S

BOLT - carriage coupling (Use T60631)

1шт.

R981S

WASHER - wear, pinion (3-1/2" x 2-1/2" x #11) (YR. 52-)

1шт.

227EB

SPRING - clutch (2-5/8" long x 1-1/8" I.D., 8-1/2" coils, compression) (YR. 39-)

1шт.
