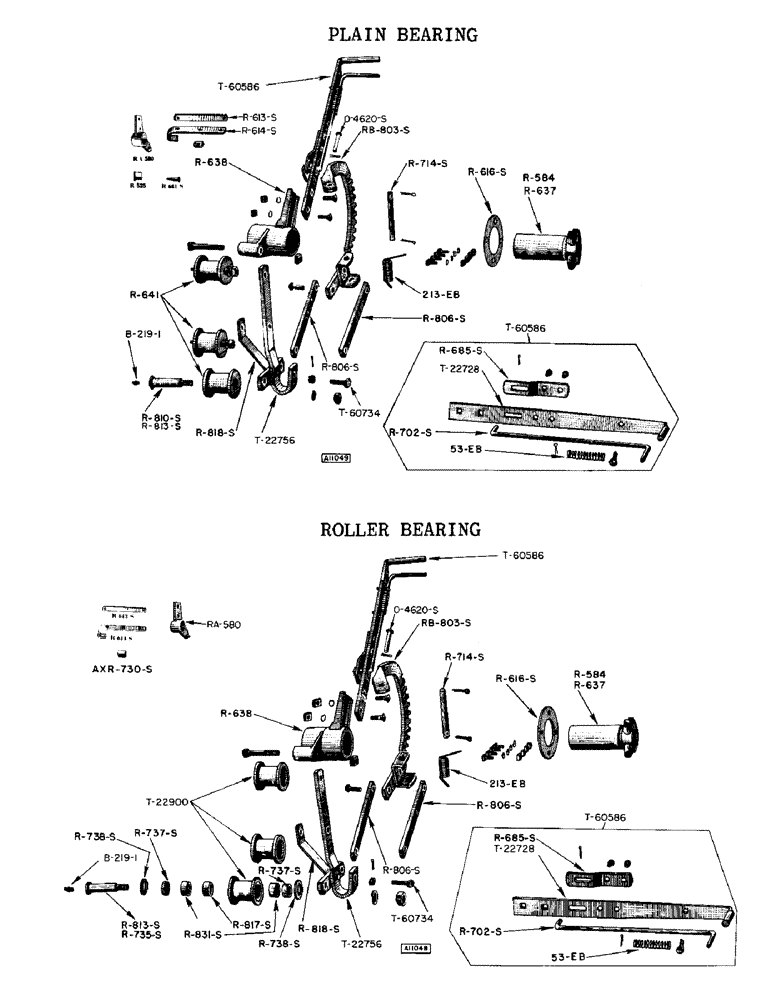

Запчасти Case IH F170 (14) - ECCENTRIC ROLLER ADJUSTMENT SUPPORT, BRACE AND LEVER, PLAIN BEARING, ROLLER BEARING

T22728

LEVER - tooth adjusting (YR. 39-)

1шт.

5/16" x 3/4" cotter pin w/13/32" eye

1шт.

T22756

SUPPORT - eccentric roller (YR. 40-)

1шт.

1/2" x 3-1/4" N.C. hex. bolt w/lockwasher and nut

1шт.

T22900

ROLLER - reel eccentric head w/2-R831S bearings (YR. 40-) (Roller bearing)

3шт.

T60586

LEVER - tooth adjusting (Complete) (YR. 39-)

1шт.

3/8" x 1-1/4" carriage bolt w/lockwasher and nut

2шт.

T60734

BOLT - (3/8" x 1-1/2" drilled hex.) roller support (YR. 40-)

1шт.

1/8" x 1" cotter pin

1шт.

3/8" N.C. hex. slotted nut

1шт.

O4620S

RIVET PIN - quadrant and frame (1/2" x 1-1/2" round head drilled) (YR. 39-)

1шт.

3/16" x 1-1/4" cotter pin

1шт.

R525

ROLLER - reel eccentric head (YR. 1939) (Plain bearing)

3шт.

RA580

LEVER - tooth adjusting (YR. 1939)

1шт.

R584

BEARING - drive, reel shaft (YR. 1939)

1шт.

R637

BEARING - drive, reel shaft (YR. 40-)

1шт.

R638

LEVER - tooth adjusting (YR. 40-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

R641

ROLLER - reel eccentric head (YR. 40-) (Plain bearing)

3шт.

R643

ROLLER - reel eccentric head (Use T22900)

1шт.

R605S

LEVER - tooth adjusting (Use T22728)

1шт.

AXR605S

LEVER - tooth adjusting (Use T60586)

1шт.

R613S

BAR - parallel (YR. 1939)

2шт.

R614S

SUPPORT - eccentric roller (YR. 39-40)

1шт.

R616S

RING - retaining, universal joint (YR. 39-)

1шт.

5/16" x 3/4" N.C. hex. bolt w/lockwasher and nut

4шт.

R681S

STUD - roller, eccentric reel head-for R525 (YR. 1939) (Plain bearing)

3шт.

R685S

GUIDE - plunger (YR. 39-)

1шт.

5/16" x 1" round head rivet

2шт.

R702S

ROD - latch, tooth adjusting lever (3/8" rd. x 19-5/8") (YR. 39-)

1шт.

1/8" x 3/4" cotter pin

2шт.

R714S

PIN - frame and clip (1/2" rd. x 4-1/2") (YR. 39-)

1шт.

3/16" x 1" cotter pin

2шт.

AXR730S

ROLLER - reel eccentric head, w/2-R831S bearings (YR. 1939) (Roller bearing)

3шт.

R735S

STUD - roller, eccentric reel head-for AXR730S (YR. 1939) (Roller bearing)

3шт.

R737S

RETAINER - grease, felt (YR. 39-) (Roller bearing)

6шт.

R738S

WASHER - wear, For felt grease retainers (YR. 39-) (Roller bearing)

6шт.

RB803S

QUADRANT - tooth adjusting (YR. 39-)

1шт.

R806S

BAR - parallel (YR. 40-)

2шт.

3/8" x 1-3/8" round head rivet

1шт.

AXR809S

SUPPORT - eccentric roller (Use T22756)

1шт.

R810S

STUD - roller, eccentric reel head-for R641 (Use R813S)

1шт.

R813S

STUD - (Hardened) eccentric reel head-for R643 (YR. 40-)

3шт.

B219-1

1/8" straight Lincoln fitting #5000 (YR. 40-)

3шт.

1/2" lockwasher and N.C. hex. nut

3шт.

R817S

SPACER - bearing, eccentric head rollers (YR. 40-) (Roller bearing)

3шт.

R818S

HAMMERSTRAP - support for rollers (YR. 39-)

1шт.

3/8" x 1-3/8" round head rivet

1шт.

R831S

BEARING

- eccentric rollers (Torrington #B1210) (YR. 39-) (Roller bearing)

6шт.

RA837S

BOLT - roller support (Use T60734)

1шт.

53EB

SPRING - lever latch rod (17/32" I.D. x 23/32" O.D. x 3" long, 14 coils, compression) (YR. 39-)

1шт.

213EB

SPRING - tooth adjusting lever quadrant (9/16" I.D. x 55/64" O.D. x 2" long, 11-1/2 coils) (YR. 39-)

1шт.
