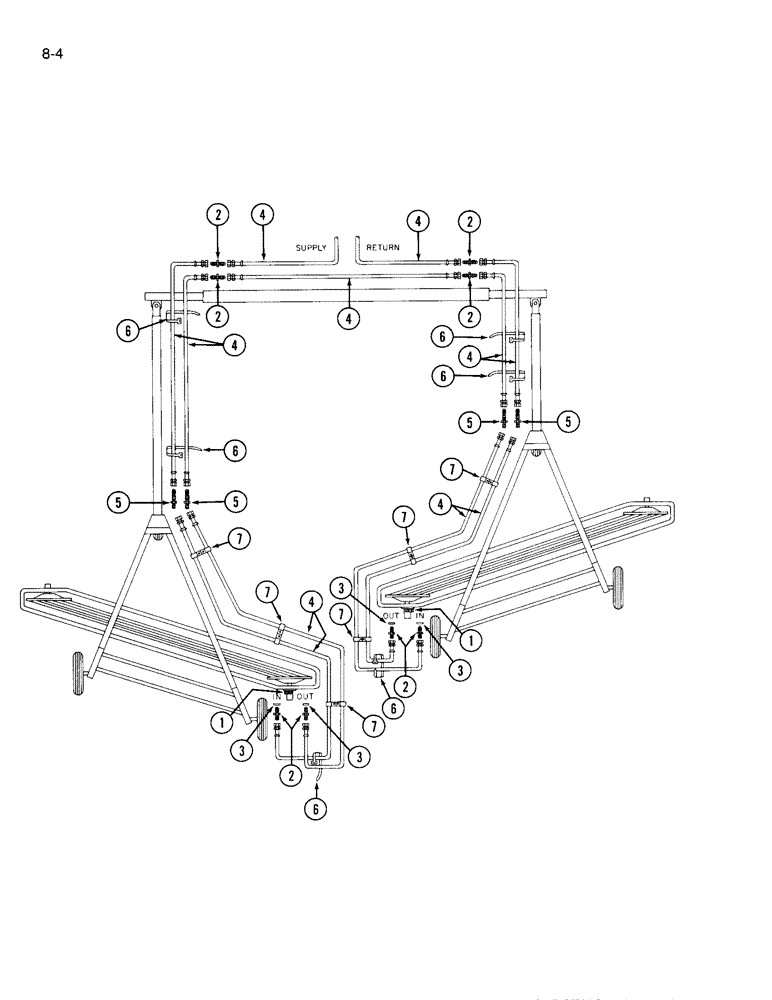

Запчасти Case IH 970 (8-4) - DUAL RAKE CIRCUIT, TWO SWATHS INTO ONE ROLL (08) - HYDRAULICS

1

REF

INSTRUCTION

MOTOR - hydraulic, See Figure 8-6

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

8шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

4

ZA400698

HOSE ASSY.

HOSE - hydraulic, 1/2 x 130 inch

11шт.

5

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION - bulkhead, 5/8 inch

4шт.

6

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

4шт.

7

299413C1

CLAMP

- hose, closed coated

3шт.
