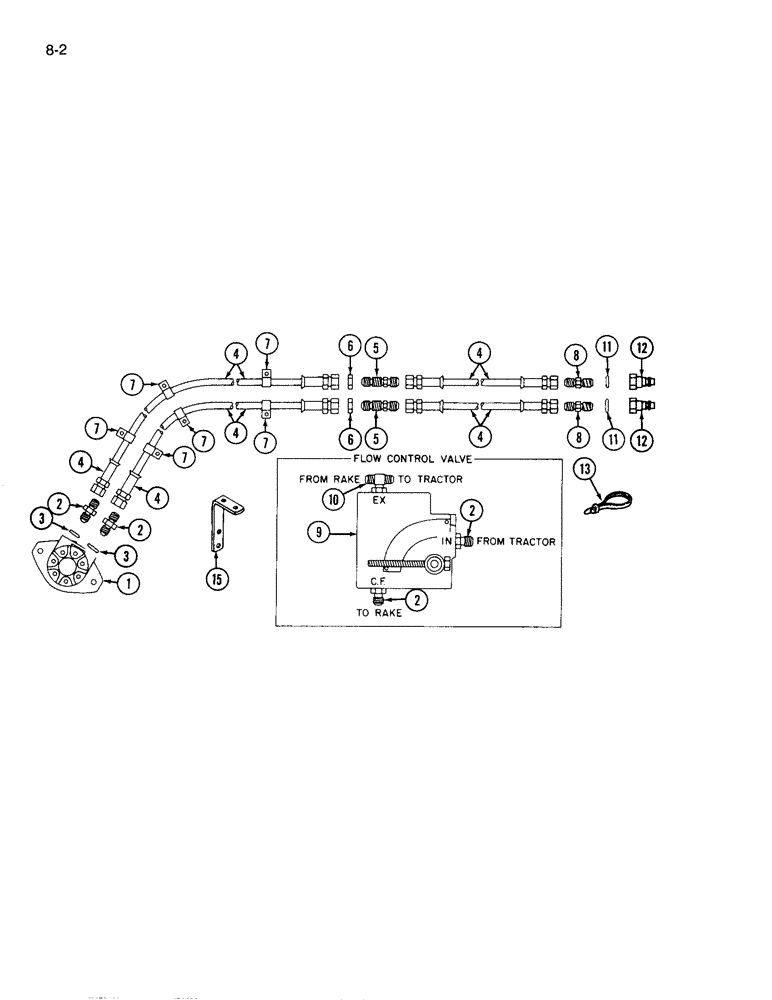

Запчасти Case IH 970 (8-2) - HYDRAULIC MOTOR FLOW CONTROL VALVE AND HOSES (08) - HYDRAULICS

1

REF

INSTRUCTION

MOTOR - hydraulic, See Figure 8-6

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

4

ZA400698

HOSE ASSY.

HOSE - hydraulic, 1/2 x 130 inch

4шт.

5

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION - bulkhead, 5/8 inch

2шт.

6

NLS

NO LONGER SERVICED

- hex, 7/8 NF

2шт.

7

299413C1

CLAMP

- hose, closed coated

6шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss (Used on couplers with 7/8-14 straight thread)

2шт.

8

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

ADAPTER - short, 1/2 inch tube 3/4-16 thread x 5/8 inch7/8-1 (Used on couplers with 3/4-16 straight thread)

2шт.

8

9402710

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

ADAPTER - flared tube, 5/8 inch tube, 7/8-14 thread x 1/2 in (Used on couplers with 1/2-14 pipe thread)

2шт.

9

ZA733125

VALVE

- flow control, Includes: ring and o-ring

1шт.

Required for use with tractors having closed center hydraulic systems with flow rates that cannot be adjusted to 10 GPM or less.

1шт.

675683R1

SNAP RING,#93, Ext

Ring, Snap, #93, Ext

2шт.

391912R1

O-RING,0.737" ID x 0.103" Width

- 3/4 ID x 3/32 inch

2шт.

10

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

ASSEMBLY - adjustable, 7/8-14 inch thread

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used on couplers with 7/8-14 straight thread

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 3/4"-16 straight thread

2шт.

12

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread (Will work with ISO female half but at low efficiency)

2шт.

12

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type (Will not work with ISO female half)

2шт.

12

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8-14 straight thread (ISO standard)

2шт.

12

1285718C2

QUICK MALE COUPLING

- self sealing male, 3/4-16 thread (ISO Standard)

2шт.

13

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

4шт.

15

ZA401216

BRACKET

- control valve mounting

1шт.

180044

SPRING

- hex, 1/4 NC x 2 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
