Запчасти Case IH 960 (9-02) - MAIN FRAME (09) - CHASSIS

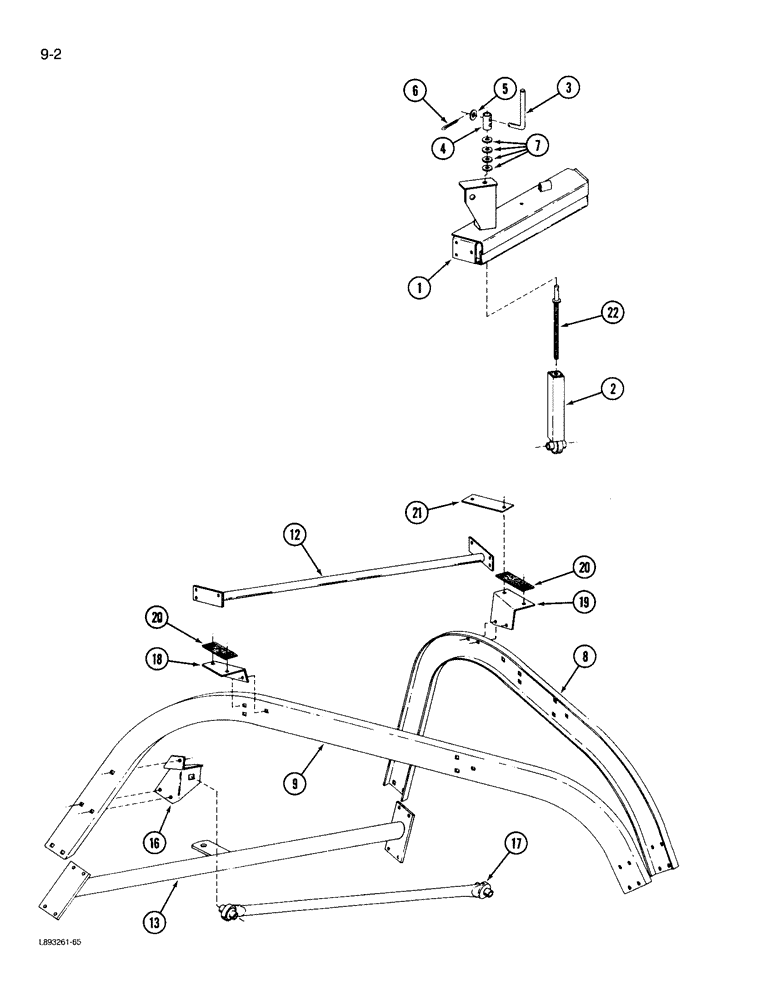

Схема запчастей Case IH 960 - (9-02) - MAIN FRAME (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

ZA401074

SUPPORT

BULKHEAD - assembly (860 and 960 Rake)

1шт.

1

ZA401154

SUPPORT

BULKHEAD - assembly (970 Rake)

1шт.

2

ZA401070

TUBE

- lower

1шт.

3

ZA401095

HANDLE

- lift

1шт.

4

ZA401096

ADAPTER

1шт.

5

95-81058

WASHER,17/32" x 7/8" x .060"

- flat, 17/32 x 7/8 x 3/64 inch

1шт.

6

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

7

95-81023

WASHER,25/32" x 1 1/2" x .060"

- 25/32 x 1-1/2 x 3/64 inch

4шт.

8

ZA401212

FRAME

CHANNEL - frame, left, with decals (860 and 960 Rake)

1шт.

REF

INSTRUCTION

DECAL - caution, See Figure 9-30

1шт.

REF

INSTRUCTION

DECAL - warning, See Figure 9-30

1шт.

8

ZA401031

FRAME

CHANNEL - frame, left (970 Rake), Includes: decals

1шт.

9

ZA401030

FRAME

CHANNEL - frame, right (860 and 960 Rake), Includes: decals

1шт.

9

ZA401213

FRAME

CHANNEL - frame, right, with decals (970 Rake)

1шт.

REF

INSTRUCTION

DECAL - caution, See Figure 9-30

1шт.

REF

INSTRUCTION

DECAL - warning, See Figure 9-30

1шт.

12

ZA401092

BRACE

- diagonal (860 and 960 Rake), Includes: decals

1шт.

12

ZA401107

BRACE

- diagonal (970 Rake), Includes: decals

1шт.

13

1253998C91

BRACE

- rear, left, with decals (860 and 960 Rake) (Replaces ZA401529)

1шт.

REF

INSTRUCTION

DECAL - important, See Figure 9-30

1шт.

REF

INSTRUCTION

DECAL - warning, See Figure 9-30

1шт.

13

1253997C91

BRACE

- rear, right, with decals (970 Rake) (Replaces ZA401530)

1шт.

REF

INSTRUCTION

DECAL - important, See Figure 9-30

1шт.

REF

INSTRUCTION

DECAL - warning, See Figure 9-30

1шт.

16

ZA401097

ANCHOR

left (860 and 960 Rake)

1шт.

16

ZA401168

ANCHOR

right (970 rake)

1шт.

17

ZA401089

BRACE

PIPE - diagonal

1шт.

18

ZA401068

ANGLE

- lift, left (860 and 960 Rake)

1шт.

18

ZA401059

ANGLE

- lift, right (970 Rake)

1шт.

19

ZA401058

ANGLE

- lift, left (860 and 960 Rake)

1шт.

19

ZA401069

ANGLE

- lift, right (960 hydraulic drive and 970 Rake)

1шт.

20

ZA400120

PLATE

WEAR STRIP

2шт.

21

ZA401176

BRACKET

- hose (Used only on hydraulic drive rakes)

1шт.

22

ZA401080

ROD

- lift

1шт.

Выбрано товаров: 34
