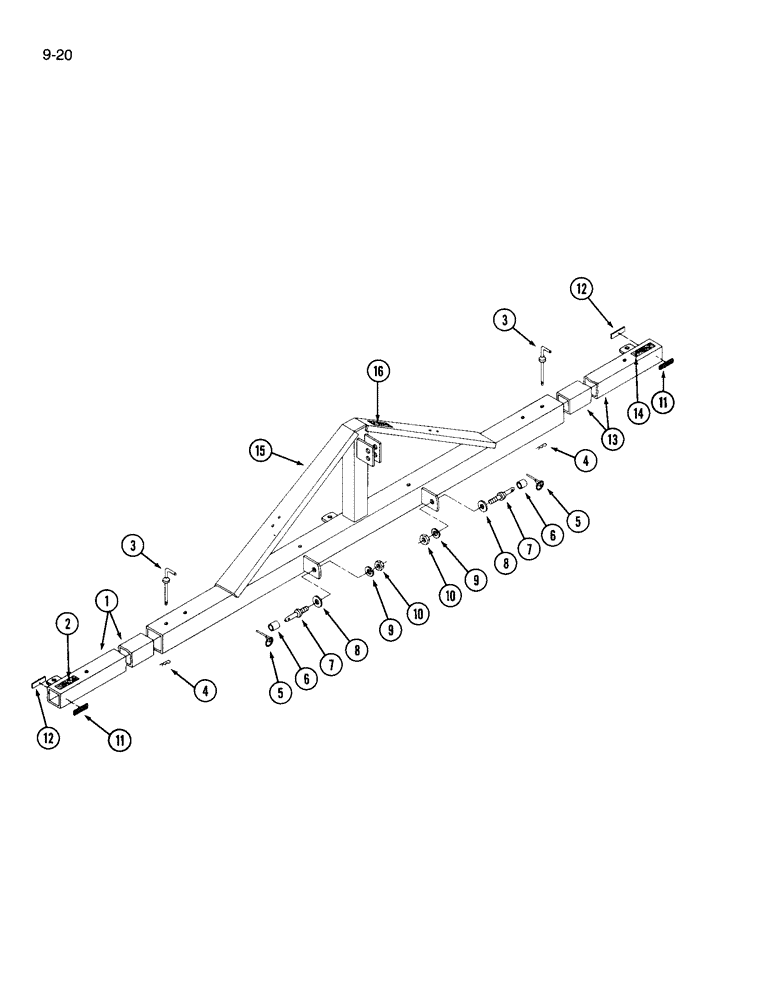

Запчасти Case IH 960 (9-20) - DUAL RAKE HITCH (09) - CHASSIS

1

1253995C91

TUBE

- right hand, Includes: Ref. 2

1шт.

2

REF

INSTRUCTION

DECAL - important, See Figure 9-30

1шт.

3

ZA722152

PIN

- frame

2шт.

4

148155C1

PIN

- cotter, hair type

2шт.

5

621006C1

PIN

- lock

2шт.

6

ZA400734

SPACER

- 57/64 ID x 1-1/8 OD x 1-7/8 inch long (Category I to Category II)

2шт.

6

ZA400735

SPACER

- 1-9/64 ID x 1-7/16 OD x 1-7/8 inch long (Category II to Category III)

2шт.

7

525921R1

STUD

PIN - link

2шт.

8

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

- flat, 29/32 X 1-1/2 X 1/4 inch

2шт.

9

192-29

LOCK WASHER,7/8"

7/8"

2шт.

10

425-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

11

1284365C1

REFLECTOR,Reflector Amber

- amber

2шт.

12

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

13

1253994C91

TUBE

- left hand, Includes: Ref. 14

1шт.

14

REF

INSTRUCTION

DECAL - important, See Figure 9-30

1шт.

15

NSS

NOT SOLD SEPARAT

FRAME

1шт.

16

1336824C1

PRODUCT GRAPHIC

DECAL - caution

1шт.
