Запчасти Case IH 960 (9-14) - DRIVELINE (09) - CHASSIS

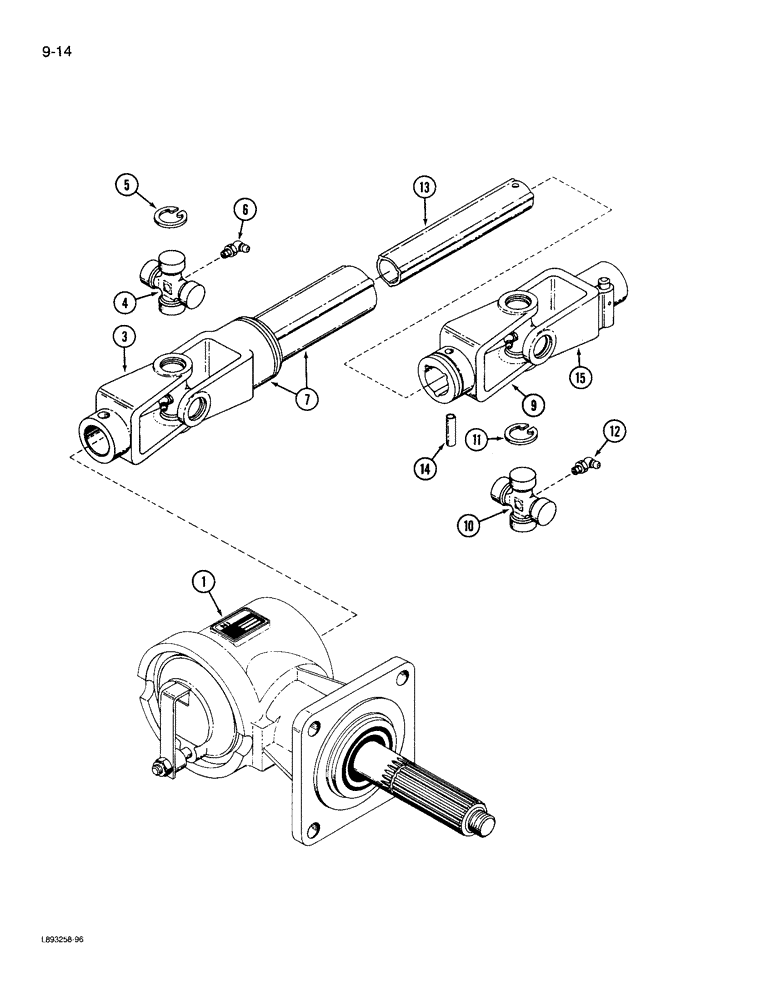

Схема запчастей Case IH 960 - (9-14) - DRIVELINE (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

GEARBOX ASSEMBLY, See Figure 9-12

1шт.

ZA401221

PTO

SHAFT - universal, outer half, Includes: Ref. 3 - 7

1шт.

3

ZA401217

YOKE

- shaft

1шт.

ZA210369

KIT

- cross repair, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CROSS

1шт.

5

NSS

NOT SOLD SEPARAT

SNAP RING

4шт.

6

ZA210343

NIPPLE, LUBE

FITTING - grease

1шт.

7

ZA401219

YOKE

ASSEMBLY

1шт.

ZA401222

PTO

SHAFT - universal, inner half, Includes: Ref. 9 - 15

1шт.

9

ZA210356

YOKE

- shaft

1шт.

ZA210369

KIT

- cross repair, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

CROSS

1шт.

11

NSS

NOT SOLD SEPARAT

SNAP RING

4шт.

12

ZA210343

NIPPLE, LUBE

FITTING - grease

1шт.

13

ZA401218

TUBE

- inner

1шт.

14

ZA210355

PIN

- roll

1шт.

15

ZA401220

YOKE

ASSEMBLY

1шт.

Выбрано товаров: 17
