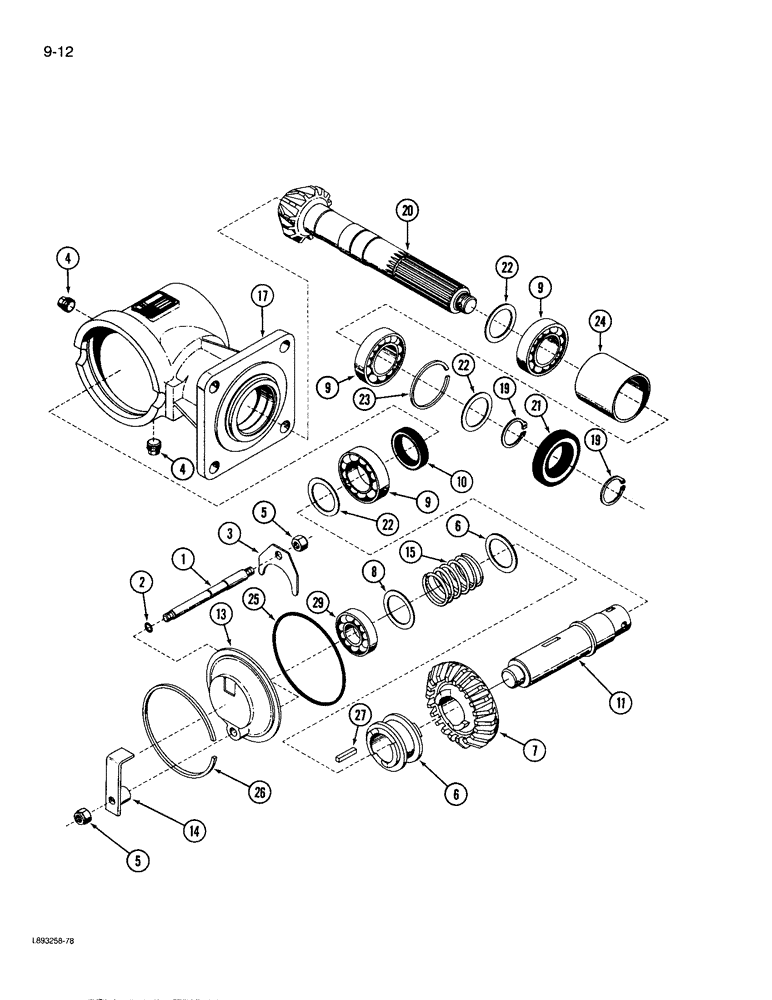

Запчасти Case IH 960 (9-12) - GEARBOX ASSEMBLY (09) - CHASSIS

ZA401026

GEARBOX ASSY

GEARBOX ASSEMBLY (860 and 960 Rake), Includes: Ref. 1 - 29

1шт.

ZA401027

GEARBOX ASSY

GEARBOX ASSEMBLY (970 Rake), Includes: Ref. 1 - 29

1шт.

1

ZA401223

ROD

- clutch

1шт.

2

ZA401224

RING

O-RING

1шт.

3

ZA401225

FORK

1шт.

4

221-843

PLUG,Hex Soc, 3/8"-18

- square head, 3/8 inch PT

2шт.

5

ZA401226

LOCK NUT

NUT - 10 mm - 1.5

2шт.

6

ZA401227

COLLAR

- clutch, left (860 and 960 Rake)

1шт.

6

ZA401228

COLLAR

- clutch, right (970 Rake)

1шт.

7

ZA401229

GEAR

- drive, left (860 and 960 Rake)

1шт.

7

ZA401230

GEAR

- drive, right (970 Rake)

1шт.

8

ZA401231

SHIM

1шт.

9

1344644C1

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

- ball

3шт.

10

ZA401245

OIL SEAL

- oil

1шт.

11

ZA401232

SHAFT

- input

1шт.

Ref item 11--key not pictured is 126-124 per Fred Hoch JJS 5-1-97

1шт.

13

ZA401234

COVER

1шт.

14

ZA401235

LEVER

1шт.

15

ZA401236

SPRING

1шт.

17

ZA401237

HOUSING

- gearbox

1шт.

19

933029R1

SNAP RING,M35, Ext

RING - retaining, external, 32 mm

2шт.

20

ZA401239

PINION

SHAFT - pinion

1шт.

21

1344645C1

SEAL

1шт.

22

ZA401246

SHIM

3шт.

23

933076R1

SNAP RING,M72, Int

RING - retaining, internal, 76 mm OD

1шт.

24

ZA401240

SPACER

1шт.

25

ZA401241

RING

O-RING

1шт.

26

ZA401242

RING

- retaining

1шт.

27

ZA401243

KEY

1шт.

29

1980950C1

BALL BEARING,0.9839" ID x 2.0472" OD x 0.5906"

- ball

1шт.
