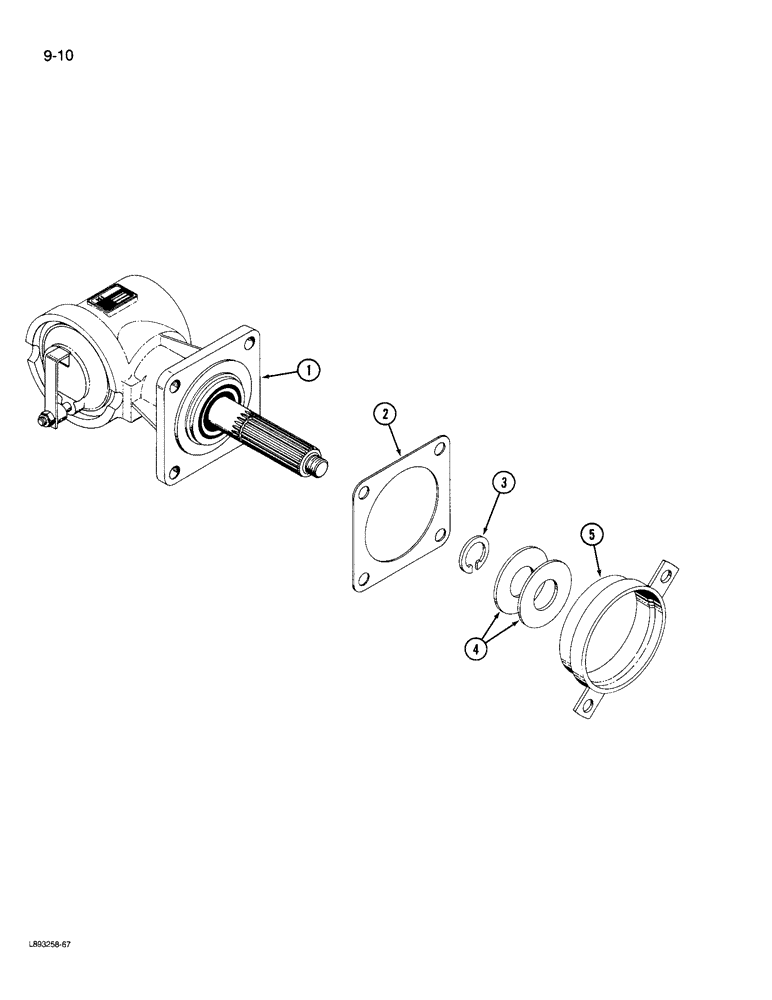

Запчасти Case IH 960 (9-10) - REEL DRIVE (09) - CHASSIS

1

REF

INSTRUCTION

GEARBOX ASSEMBLY (860 and 960 Rakes), See Figure 9-12

1шт.

1

REF

INSTRUCTION

GEARBOX ASSEMBLY (970 Rake), See Figure 9-12

1шт.

2

ZA401111

SHIM

- gearbox

1шт.

3

933029R1

SNAP RING,M35, Ext

RING - retaining, external, 32 mm

1шт.

Used only on hydraulic drive rakes.

1шт.

4

608085R1

WASHER

- flat, 1-13/32 x 2 x 3/64 inch

2шт.

Used only on hydraulic drive rakes.

1шт.

5

ZA401100

SHIELD

- gearbox

1шт.
