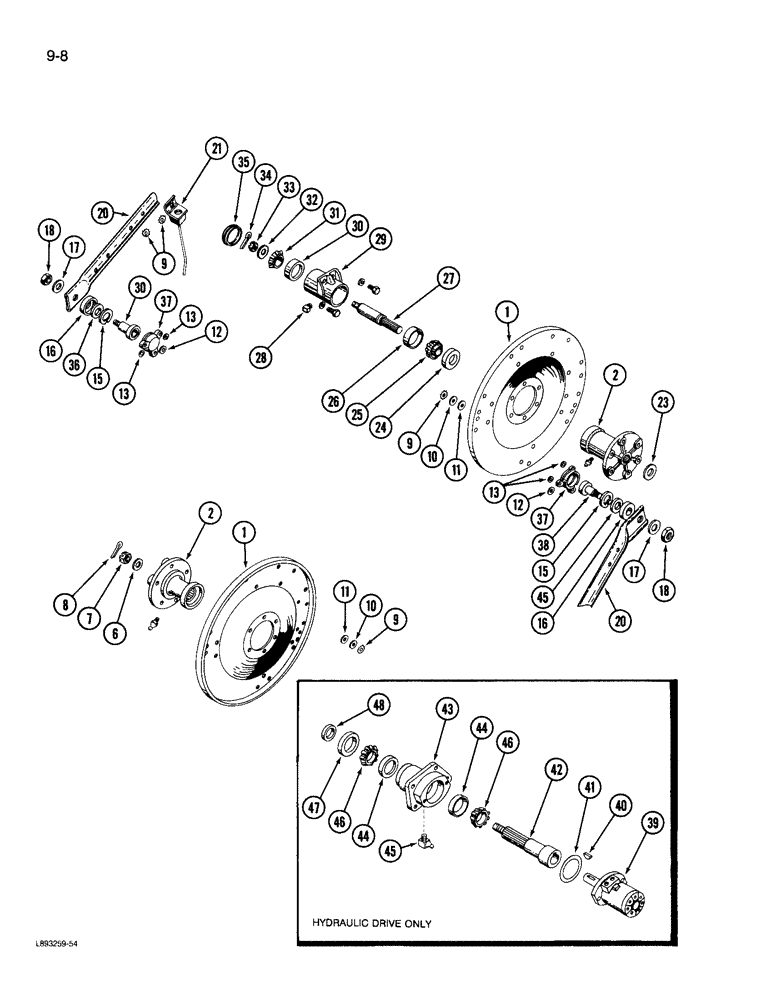

Запчасти Case IH 960 (9-08) - REEL HEADS AND TOOTH BAR (09) - CHASSIS

1

ZA400027

HEAD

- reel

2шт.

2

ZA400020

HUB ASSY.

HUB - reel

2шт.

6

26070R1

WASHER,15/16" x 1 3/4" x .179", HDN

- hardened flat, 15/16 x 1-3/4 x 3/16 inch

1шт.

7

26963R1

NUT,7/8"-14, G8

NUT - castle, 7/8 inch NF, Grade 8

1шт.

8

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

9

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

100шт.

10

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

10шт.

11

1254009C1

WASHER

- neoprene, 1-3/8 x 13/32 x 1/16 inch

10шт.

12

1254010C1

WASHER

- neoprene, 1-3/4 x 13/32 x 1/16 inch

10шт.

13

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

20шт.

15

272842R1

SNAP RING,1.875", Int, #187

RING - retaining, 2-5/64 inch

10шт.

16

ZA400032

SHIELD

- dust

10шт.

17

96311C2

WASHER

- 1-3/32 x 25/32 x 3/16 inch

10шт.

18

9413972

LOCK NUT,3/4"-16, GB

NUT - hex, 3/4 inch NF

10шт.

20

ZA401113

BAR

- tooth, 8-1/2 inches (860 Rake)

5шт.

20

ZA401003

BAR

- tooth, 9-1/2 inches (960 and 970 Rakes)

5шт.

21

ZA400672

TOOTH

- rubber (860 Rake)

90шт.

21

ZA400672

TOOTH

- rubber (960 Rake)

100шт.

21

ZA400673

TOOTH

- rubber (970 Rake)

100шт.

23

351107R1

WASHER

- 17/32 x 2 x 1/4 inch

1шт.

24

1254003C1

SEALING WASHER

1шт.

25

453279R91

ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"

- cone

1шт.

26

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING - tapered roller

1шт.

#26 should be st974. 6-5-98 cw

1шт.

27

ZA400188

SHAFT

- reel

1шт.

28

221-849

PLUG,Hex Soc, 1/8"-27

- hex, 1/8 inch

1шт.

29

ZA400017

SUPPORT

- front reel, Includes: Ref. 30 & 31

1шт.

30

572564R1

BEARING CUP

CUP - tapered roller bearing

1шт.

31

463911R91

ROLLER BEARING,1" ID x 0.58"

CONE - tapered roller

1шт.

32

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

33

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4 inch NF

1шт.

34

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

35

811012C1

CAP

- hub

1шт.

36

21757R1

WASHER

- flat, 25/32 x 1-1/4 x 1/32 inch

10шт.

ZA400217

BEARING ASSY

BEARING ASSEMBLY - tooth bar, Includes: Ref. 37 & 38

10шт.

37

ZA400216

HOUSING

- bearing

10шт.

38

ZA400031

BALL BEARING,0.75" ID x 1.8504" OD x 2.125"

BEARING - tooth bar

10шт.

39

REF

INSTRUCTION

MOTOR - hydraulic, See Figure 8-6

1шт.

40

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

41

347360R1

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

42

ZA400876

SHAFT

1шт.

43

ZA400890

HOUSING

BEARING ASSEMBLY, Includes: Ref. 44

1шт.

44

61801C1

BEARING CUP,63mm OD x 13.5mm W

CUP - jackshaft bearing, 2-15/32 inch ID

2шт.

45

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

46

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

CONE - jackshaft bearing, 1-15/32 inch ID

2шт.

47

96320C1

OIL SEAL

SEAL - oil

1шт.

48

ZA400881

SPACER

1шт.
