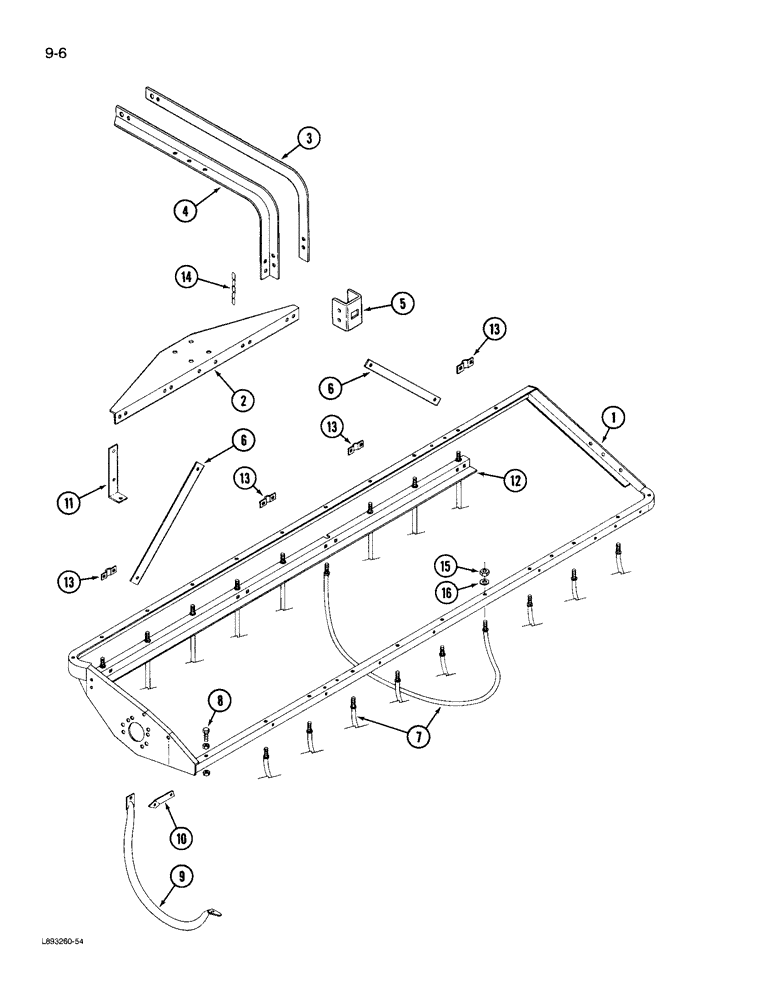

Запчасти Case IH 960 (9-06) - SUBFRAME AND BASKET ASSEMBLY (09) - CHASSIS

1

ZA401151

FRAME ASSY

FRAME - basket (860 Rake)

1шт.

1

ZA401127

FRAME

- basket (960 Rake)

1шт.

1

ZA401128

FRAME

- basket (970 Rake)

1шт.

2

ZA401104

GUSSET

- basket, subframe support

1шт.

3

ZA401109

TOW BAR

TONGUE - angle, subframe, right

1шт.

4

ZA401108

TOW BAR

TONGUE - angle, subframe, left

1шт.

5

ZA401091

ANCHOR

- basket

1шт.

6

ZA400183

BRACE

- strap

2шт.

7

ZA400644

BAR

- stripper (860 Rake)

8шт.

7

ZA400644

BAR

- stripper (960 Rake)

9шт.

7

ZA400645

BAR

- stripper (970 Rake)

9шт.

8

ZA401126

BOLT

- special, 1/2-BNCX3 (located on opposite side of basket on 970 Rake)

1шт.

9

ZA400648

BAR

- rear render, left (860 and 960 Rake)

1шт.

9

ZA400649

BAR

- rear fender, right (970 Rake)

1шт.

10

ZA400646

BAR

BRACE - left (860 and 960 Rake)

1шт.

10

ZA400647

BAR

BRACE - right (970 Rake)

1шт.

11

ZA401186

BRACKET

- slow moving vehicle

1шт.

12

ZA401153

STRIPPER

- 83-1/8 inch (860 Rake)

1шт.

12

ZA401114

STRIPPER

- 94-5/8 inch (960 and 970 Rake)

1шт.

13

ZA401115

CLAMP

4шт.

14

ZA401116

CHAIN LINK

CHAIN - stop

1шт.

15

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC (860 Rake)

16шт.

15

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC (960 and 970 Rake)

18шт.

16

496-81004

WASHER,41/64" x 1.047" x .134", HDN

- flat, 13/32 x 1-1/2 x 1/4 inch (860 Rake)

16шт.

16

496-81004

WASHER,41/64" x 1.047" x .134", HDN

- flat, 13/32 x 1-1/2 x 1/4 inch (960 and 970 Rake)

18шт.
