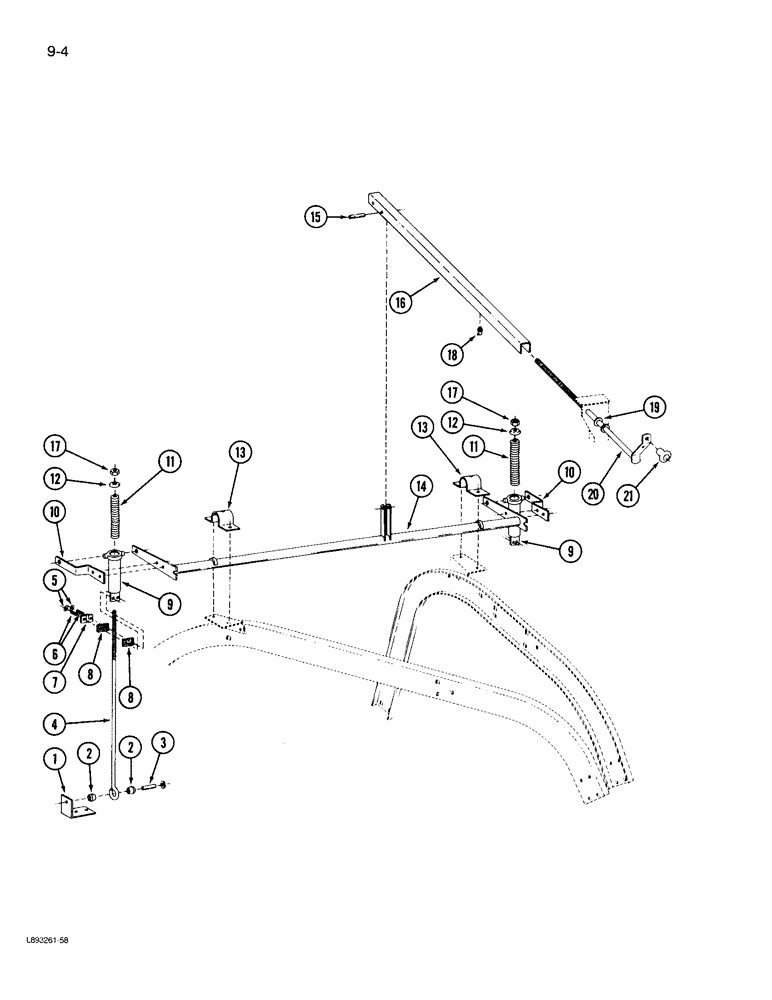

Запчасти Case IH 960 (9-04) - LIFT ASSEMBLY (09) - CHASSIS

1

ZA400104

BRACKET

- angle

2шт.

2

1265877C1

RUBBER BUSHING

BUSHING - rubber

4шт.

3

91185C1

SPACER

- bushing, 9/16 x 1-1/4 inch

2шт.

4

ZA400101

ROD

- lifting

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

6

1265875C1

SPRING

- backstop

4шт.

7

1265896C1

PAD

PLATE - brake

2шт.

8

1265878C1

LINING

PAD - brake lining

4шт.

9

ZA400102

HOLDER

HOUSING - lift rod, right

1шт.

Used with 1265898C1 - left side mounted on 970

1шт.

9

ZA400103

HOLDER

HOUSING - lift rod, left

1шт.

Used with 1265897C1 - right side mounted on 970

1шт.

10

ZA400134

BRACKET

- offset

2шт.

11

1265898C1

SPRING

- compression (19 coils, used with ZA400102)

1шт.

11

1265897C1

SPRING

- compression (22 coils, used with ZA400103)

1шт.

12

1265874C1

SPRING WASHER

- spring

2шт.

13

ZA400119

CAP

- bearing

2шт.

14

ZA401048

TUBE

- lift assembly, left (860 and 960 Rake)

1шт.

14

ZA401049

TUBE

- lift assembly, right (970 Rake)

1шт.

15

1265873C1

SPACER

1шт.

16

ZA400123

LINK

- lift

1шт.

17

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

18

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

19

1265872C1

WASHER

- phenolic

1шт.

20

ZA400125

CRANK

- lift

1шт.

21

1265871C1

KNOB

- lift crank

1шт.
