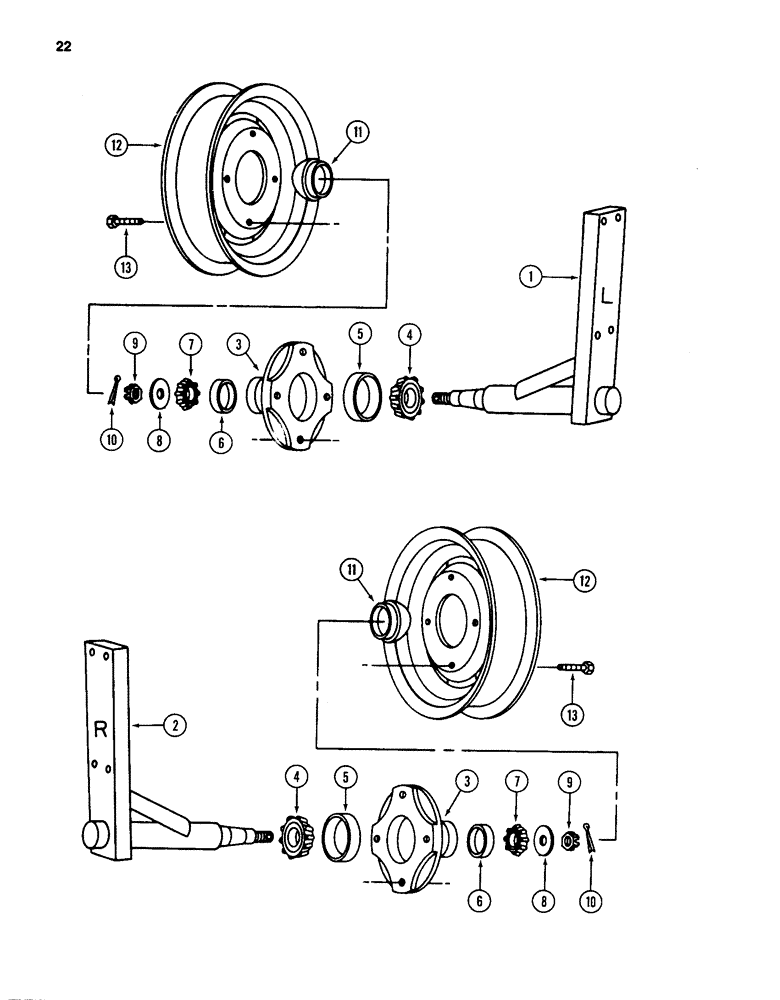

Запчасти Case IH 96 (22) - SPINDLES BEARINGS HUBS & WHEELS, 96 AND 97 HYDRAULIC DRIVE RAKES

1

ZA400882

SPINDLE

ASSEMBLY - left

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

ZA400883

SPINDLE

ASSEMBLY - right

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

465492R2

HUB

- wheel

2шт.

4

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSEMBLY - hub inner

2шт.

5

651817R1

BEARING CUP

BEARING - cup

1шт.

6

651814R1

BEARING CUP

BEARING - hub outer cup

2шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSEMBLY - hub outer cone

2шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

8

130999

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/64 inch (18 x 44 x 3 mm)

2шт.

9

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

2шт.

10

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

11

522021R1

CAP

- hub

2шт.

12

455169R92

WHEEL

ASSEMBLY - 15 inch (For 5.00-15 tire)

2шт.

13

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- wheel hub

8шт.
