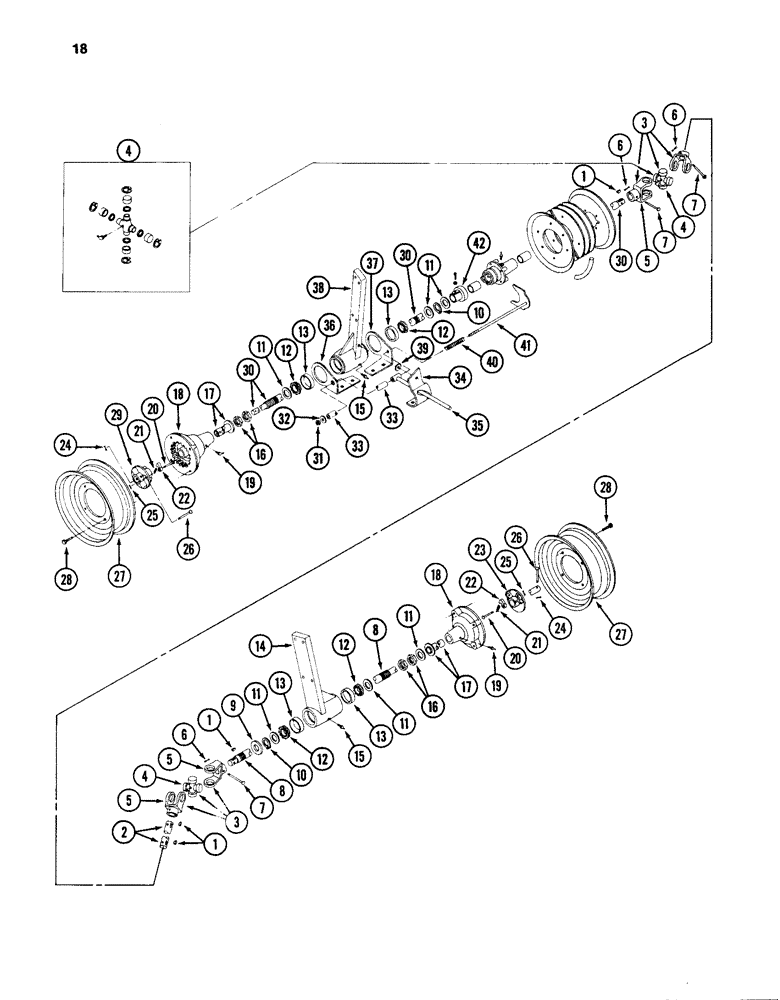

Запчасти Case IH 96 (18) - WHEELS AND WHEEL DRIVE, 96 AND 97 GROUND DRIVE RAKES

1

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

4шт.

2

ZA400519

SHAFT

AXLE

1шт.

3

ZA400513

JOINT

ASSEMBLY - universal

2шт.

4

150635R92

SPIDER

KIT - cross

1шт.

5

1265899C1

YOKE

2шт.

6

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

7

1254012C1

RIVET

- DRILLED, 1/4 x 2-1/4 inch

3шт.

8

ZA400517

SHAFT

- drive (13-13/32 inch long)

1шт.

9

Q3484

WASHER

- flat, 1-9/32 x 1-7/8 x 1/16 inch (33 x 47 x 1 mm)

1шт.

10

152450R1

SNAP RING,#125, Ext

RING - external retaining, 1-5/32 inch

2шт.

11

22050R1

WASHER

FLAT - flat, 1-9/32 x 1-3/4 x 1/16 inch (33 x 44 x 1 mm)

2шт.

12

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSEMBLY - shaft

4шт.

13

651817R1

BEARING CUP

BEARING - cup

1шт.

14

ZA400851

BRACKET

ASSEMBLY - wheel

1шт.

651817R1

BEARING CUP

BEARING - cup

2шт.

15

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8 inch PTF, short, 30 degree

2шт.

16

133613H

NUT

- hex, 1-1/4 inch NF

4шт.

17

ZA400594

SLEEVE

ASSEMBLY

2шт.

18

ZA400084

HUB

- wheel drive

2шт.

19

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 1/8 inch PTF, short, 45 degree

2шт.

20

1978921C1

RIVET

- drilled, 1/4 x 1-3/8 inch ( replaced ZA013239 )

2шт.

21

1254006C1

SPRING

2шт.

22

ZA400083

PAWL

- drive

2шт.

23

ZA400081

HUB

- right ratchet

1шт.

24

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

25

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

26

96318C1

RIVET

- drilled, 3/8 x 3-1/8 inch

2шт.

27

455169R92

WHEEL

ASSEMBLY - 15 inch (For 5.00-15 tire)

2шт.

28

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- wheel hub

8шт.

29

ZA400082

HUB

- left ratchet

1шт.

30

ZA400518

SHAFT

- drive (19-23/32 inch long)

1шт.

31

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

32

131016

WASHER

- flat, 21/32 x 1-5/16 x 5/64 inch (17 x 33 x 2 mm)

1шт.

33

27803R1

SPACER,7/8" Tube x 3 1/4"

- tube, 7/8 x 3-1/4 inch

1шт.

34

ZA400537

CAM

- shifter (96 Rake)

1шт.

34

ZA400538

CAM

- shifter (97 Rake)

1шт.

35

ZA400096

SLIDE

- shifter

1шт.

36

ZA400533

BRACKET

- shifter (96 Rake)

1шт.

36

ZA400534

BRACKET

- shifter (97 Rake)

1шт.

37

ZA400535

BRACKET

- shifter (96 Rake)

1шт.

37

ZA400536

BRACKET

- shifter (97 Rake)

1шт.

38

ZA400850

BRACKET

ASSEMBLY - wheel

1шт.

651817R1

BEARING CUP

BEARING - cup

2шт.

39

27387R1

WASHER,17/32" x 1.002" x .150", Stainless

- flat, 0.531 x 1.002 x 1.134 inch (14 x 26 x 4 mm)

4шт.

40

1254005C1

SPRING

1шт.

41

ZA400587

YOKE

ASSEMBLY

1шт.

42

ZA400656

CLUTCH

HUB - clutch (96 Rake)

1шт.

42

ZA400657

CLUTCH

HUB - clutch (97 Rake)

1шт.
