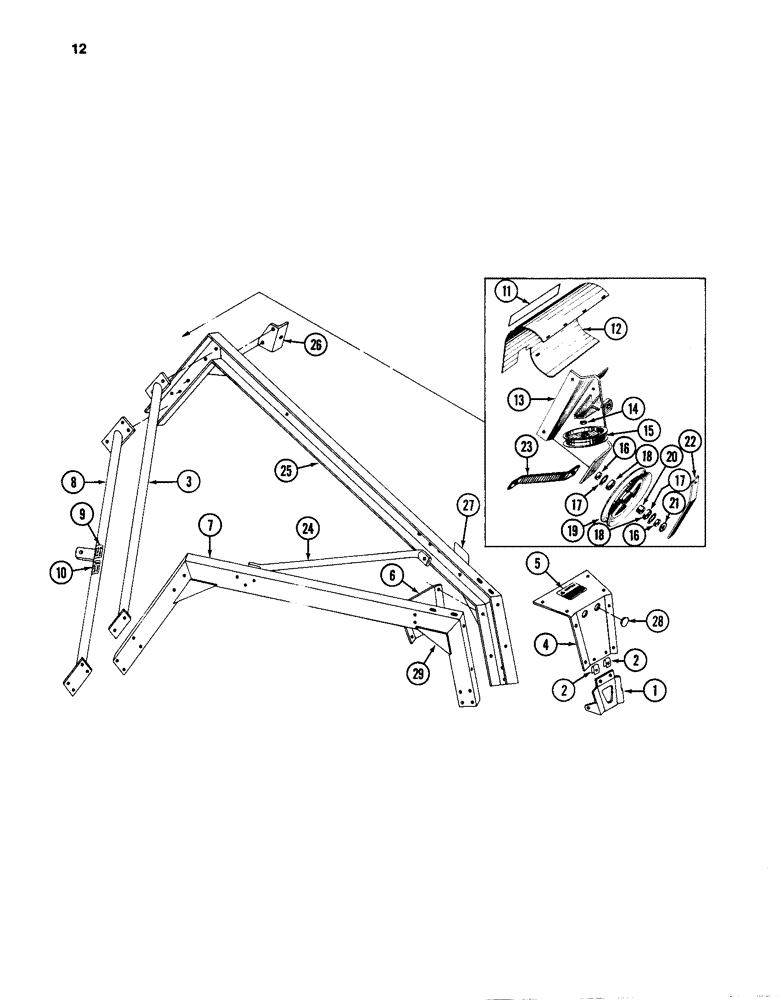

Запчасти Case IH 96 (12) - MAIN FRAME, BELT SHIELD AND DRIVE PARTS, 96 AND 97 RAKES

1

ZA400724

COVER

- pivot (96 Rake prior to P.I.N. 000576, 97 Rake Prior to P.I.N. 000526)

1шт.

1

ZA400783

COVER

- pivot (96 Rake P.I.N. 000576 and after, 97 Rake P.I.N. 000526 and after)

1шт.

2

488837C1

SPRING NUT

- speed, 5/16 inch

4шт.

3

ZA400725

BRACE

ASSEMBLY - middle (96 Rake)

1шт.

3

ZA400726

BRACE

ASSEMBLY - middle (97 Rake)

1шт.

4

1265870C91

SUPPORT

ASSEMBLY - upper

1шт.

5

1336824C1

PRODUCT GRAPHIC

DECAL - caution, general safety

1шт.

6

ZA400653

PLATE

- lower

1шт.

7

ZA400602

CHANNEL

- right frame (96 Rake)

1шт.

7

ZA400603

CHANNEL

- right frame (97 Rake)

1шт.

8

1253998C91

BRACE

ASSEMBLY - rear left (96 Rake)

1шт.

8

1253997C91

BRACE

ASSEMBLY - rear right (97 Rake)

1шт.

9

ZA764771

PRODUCT GRAPHIC

DECAL - warning, no riders

1шт.

10

NSS

NOT SOLD SEPARAT

DECAL - important (97 Rake only)

1шт.

11

NSS

NOT SOLD SEPARAT

DECAL - belt and clutch instruction (See Note A)

1шт.

12

ZA400666

SHIELD

- belt (96 Rake)(See Note A)

1шт.

12

ZA400667

SHIELD

- belt (97 Rake)(See Note A)

1шт.

13

ZA400668

BRACKET

- idler mounting (96 Rake)(See Note A)

1шт.

13

ZA400669

BRACKET

- idler mounting (97 Rake)(See Note A)

1шт.

14

384678R1

SPACER

- 1/2 x 3/4 inch (See Note A)

1шт.

15

ZA400870

PULLEY

- idler (See Note A)

1шт.

16

60847C1

BUSHING

SPACER - 21/32 x 7/8 inch (See Note A)

2шт.

17

273026R1

SNAP RING,1.375", Int, #137

RING - internal retaining, 1.526 inch (See Note A)

2шт.

18

582010R91

BEARING ASSY,0.625" ID x 1.375" OD x 0.4331"

- ball (See Note A)

2шт.

19

ZA400075

PULLEY

SHEAVE - (See Note A)

1шт.

20

HA4457

SPACER

- pipe, 1/2 x 5/8 inch (See Note A)

1шт.

21

NLS

NO LONGER SERVICED

- flat, 21/32 x 1-5/16 x 5/64 inch (17 x 33 x 2 mm) (See Note A)

1шт.

22

ZA400077

BRACKET

- shield (See Note A)

1шт.

23

ZA400651

BRACKET

- tie (96 Rake)(See Note A)

1шт.

23

ZA400652

BRACKET

- tie (97 Rake)(See Note A)

1шт.

24

ZA400067

BRACE

- diagonal

1шт.

25

ZA400600

CHANNEL

- left frame (96 Rake)

1шт.

25

ZA400601

CHANNEL

- left frame (97 Rake)

1шт.

26

ZA400732

BRACKET

- left anchor (96 Rake)(See Note B)

1шт.

26

ZA400733

BRACKET

- left anchor (97 Rake)(See Note B)

1шт.

27

1336838C1

PRODUCT GRAPHIC

DECAL - warning, to avoid injury (See Note B)

1шт.

28

454174

PLUG - button, 15/16 inch diameter (See Note A)

2шт.

29

ZA400822

PACKAGE

- channel gusset (96 Rake prior to P.I.N. 000707, 97 Rake prior to P.I.N. 00552)(See Note A)

1шт.

NSS

NOT SOLD SEPARAT

GUSSET

4шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - installing

1шт.
