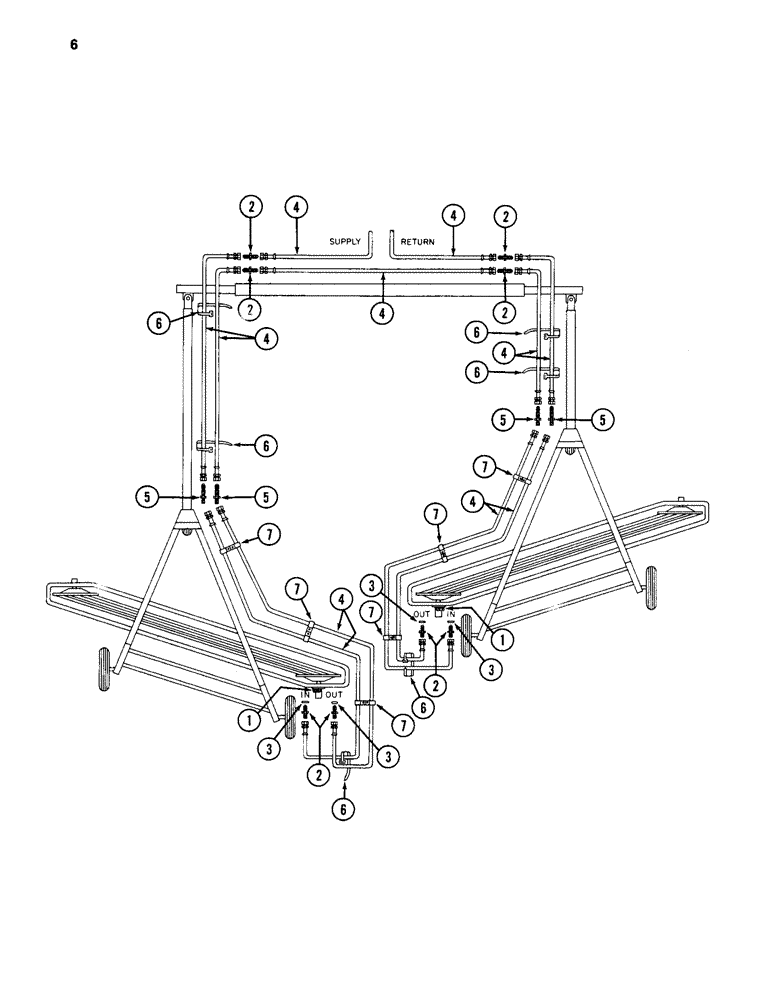

Запчасти Case IH 96 (06) - DUAL RAKE CIRCUIT, 2 SWATHS INTO 1 ROLL, 96 AND 97 HYDRAULIC RAKE

1

ZA400572

MOTOR

ASSEMBLY - hydraulic (17.9 cubic inch)(See Page 9)

1шт.

2

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - Short, 5/8 inch tube, 7/8-14 thread

8шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

4шт.

4

ZA400698

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 1/2 inch ID x 130 inch (3302 mm)

11шт.

5

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION - bulkhead, 5/8 inch tube, 7/8-14 thread

4шт.

6

306132C1

CABLE TIE,14.5" L

STRAP - hose tie 14 in

4шт.

7

299413C1

CLAMP

- coated closed, 13/16 inch diameter

3шт.
