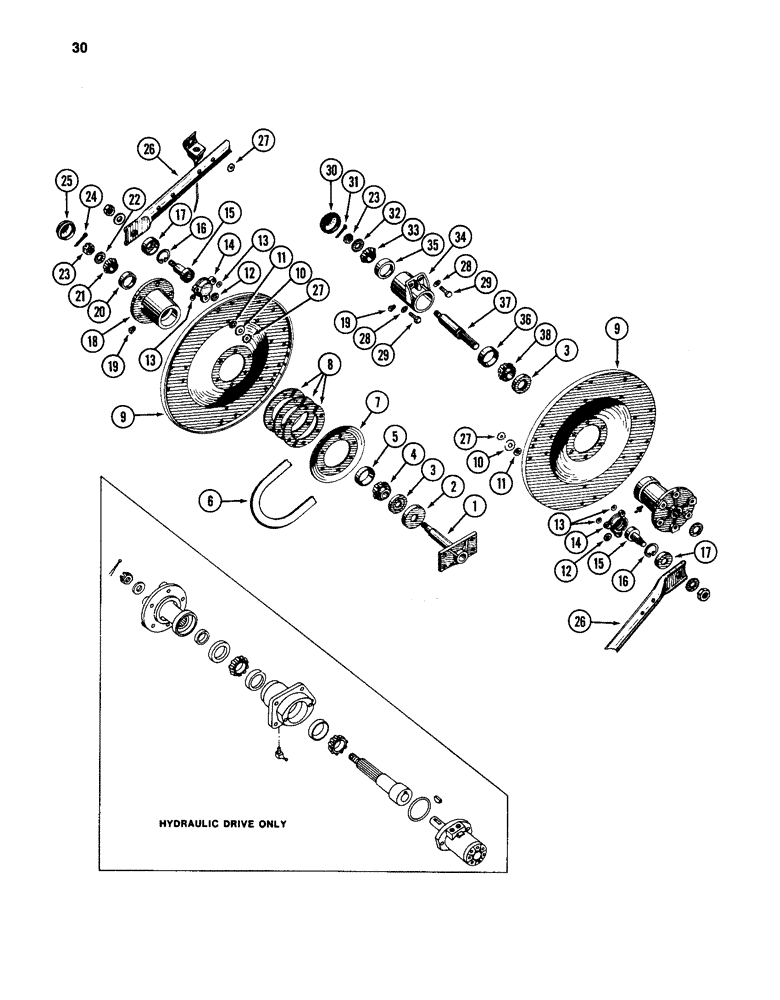

Запчасти Case IH 96 (30) - REEL ASSEMBLY, CONTINUED

1

1254007C1

SUPPORT

- left (Ground drive only)

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

4шт.

2

1254008C1

SHIELD

- dust (Ground drive only)

1шт.

3

1254003C1

SEALING WASHER

(Ground drive only)

2шт.

4

455798R91

ROLLER BEARING,1.181" ID x 2.717" OD x 1.0623"

ASSEMBLY - cone (Ground drive only)

1шт.

5

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING - cup (Ground drive only)

1шт.

6

ZA400875

BELT,0.879" W x 140.99" L

Round (Ground drive only) 0.879" W x 140.99" L

1шт.

7

ZA400025

PULLEY

- half (Ground drive only)

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

6шт.

8

ZA400026

SHIM

(Ground drive only)

6шт.

9

ZA400027

HEAD

- reel

2шт.

10

477589R1

WASHER

- 13/32 x 1-1/2 x 7/64 inch (10 x 39 x 3 mm)

10шт.

11

1254009C1

WASHER

- neoprene, 13/32 x 1-3/8 x 1/16 inch

10шт.

12

1254010C1

WASHER

- neoprene, 13/32 x 1-3/4 x 1/16 inch

10шт.

13

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch (10 x 19 x 3 mm)

1шт.

14

ZA400217

BEARING ASSY

BEARING ASSEMBLY - tooth bar

10шт.

15

ZA400031

BALL BEARING,0.75" ID x 1.8504" OD x 2.125"

BEARING - tooth bar

1шт.

16

272842R1

SNAP RING,1.875", Int, #187

RING - internal retaining, 2.072 inch

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

30шт.

17

ZA400032

SHIELD

- dust

10шт.

18

ZA400023

HUB

ASSEMBLY - reel (Ground drive only)

1шт.

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING - cup

1шт.

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

BEARING - cup

1шт.

19

444854

PLUG,Hex Soc, 1/8"-27 NPTF

- hex socket drain, 1/8-27 PT

2шт.

20

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

BEARING - cup (Ground drive only)

1шт.

21

594446R91

ROLLER BEARING

BEARING ASSEMBLY - Cone (Ground drive only)

1шт.

22

21713R1

WASHER,25/32" x 1 3/4" x .120"

- flat, 25/32 x 1-3/4 x 7/64 inch (20 x 44 x 3 mm) (Ground drive only)

1шт.

23

427640

SLOTTED NUT,3/4"-16, G5

NUT - slotted hex, 3/4 inch NF (2 for ground drive, 1 for hydraulic drive)

1шт.

24

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

25

518842R1

CAP

- hub (Ground drive only)

1шт.

26

ZA400028

BAR

- tooth (86 Rake)

5шт.

26

ZA400532

BAR

- tooth (96 and 97 Rakes)

5шт.

27

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

28

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch (14 x 31 x 1 mm)

2шт.

29

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

2шт.

30

811012C1

CAP

- hub

1шт.

31

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

32

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 0.054 inch (20 x 38 x 1 mm)

1шт.

33

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING ASSEMBLY - cone

1шт.

34

ZA400017

SUPPORT

ASSEMBLY - front reel

1шт.

35

572564R1

BEARING CUP

BEARING - cup

1шт.

36

13822V

BEARING

- cup

1шт.

37

ZA400188

SHAFT

- reel

1шт.

38

453279R91

ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"

ASSEMBLY - cone

1шт.
