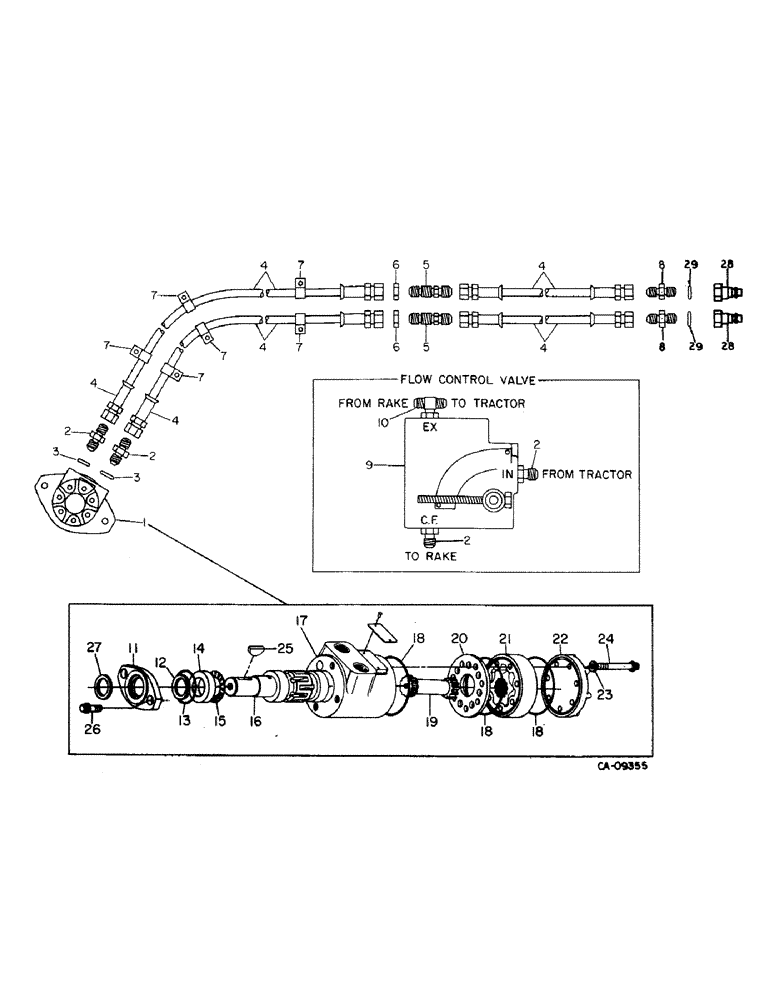

Запчасти Case IH 96 (G-11) - HYDRAULIC MOTOR, FLOW CONTROL VALVE AND HOSES, HYDRAULIC DRIVE RAKES

1

ZA400572

MOTOR

ASSY, hydraulic, 17.9 cubic in.

1шт.

2

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

4

ZA400698

HOSE ASSY.

HOSE ASSY, 1/2 x 130 in. hydraulic

4шт.

5

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 5/8 C-Z hyd fld tube bulkhead

1шт.

6

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8 NF jam type 5

2шт.

7

299413C1

CLAMP

.812 dia PHC coated med clo

6шт.

8

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel, used on couplers with 7/8-14 straight thread

2шт.

8

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, C-Z hyd fld 5/8 to 1/2 sht, used on couplers with 3/4-16 straight thread

2шт.

8

9402710

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 5/8 C-Z hyd flared tube, used on couplers with 1/2-14 in. pipe thread

2шт.

9

ZA733125

VALVE

ASSY, flow control, only serviceable items are

1шт.

For use on tractors with closed center hydraulic systems that cannot be adjusted below 10 GPM and also two connectors, 9410204.

1шт.

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 class 6

2шт.

675683R1

SNAP RING,#93, Ext

Ring, Snap, #93, Ext

2шт.

413-432

1/4 x 2 type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

10

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

5/8 C-Z hyd fld tube adj

1шт.

For use on tractors with closed center hydraulic systems that cannot be adjusted below 10 GPM and also two connectors, 9410204.

1шт.

11

ZA400900

FLANGE

mounting, 2 bolt

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL, order kit, 63789C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, order kit, 63789C1

1шт.

14

63779C1

BEARING CUP,27.94mm ID x 42.16mm OD x 10.16mm L

RACE, needle bearing

1шт.

15

63780C91

THRUST BEARING

needle thrust

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT, output, order hydraulic motor assy

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING, motor, order hydraulic motor assy

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING, housing, order kit, 63789C1

1шт.

19

653944R1

DRIVE

1шт.

63781C1

SPACER

drive

1шт.

20

63791C1

PLATE

spacer

1шт.

21

NSS

NOT SOLD SEPARAT

GEROTOR SET, order hydraulic motor assy

1шт.

22

63792C1

CAP

end

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER, seal, order kit, 63789C1

1шт.

24

57950C1

SCREW,12 Pt Flg, 5/16"-18 x 2 3/4", G8

5/16-24 x 2-3/4 12 pt wrench drive cap

7шт.

25

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

26

1413632R1

12 PT SCREW,Flg, 5/16" - 24 x 7/8", Gr 8

SCREW, 5/16-18 x 7/8 12 point wrench drive cap

4шт.

27

NSS

NOT SOLD SEPARAT

SEAL, order kit, 63789C1 (NSS)

1шт.

63789C1

KIT

hydraulic motor repair seal, consists of ref nos. 12, 13, 18, 23 and 27

1шт.

28

395149R1

QUICK MALE COUPLING

COUPLER, self-sealing male half, poppet type, 7/8-14 straight thread, will work w/ISO female half but at low efficiency

2шт.

28

544787R91

COUPLING, BREAK AWAY

COUPLER, self-sealing male half, ball type, 7/8-14 straight thread, will not work w/ISO female half

2шт.

28

1272399C2

QUICK MALE COUPLING

COUPLER, self-sealing male half, ISO standard, 7/8-14 straight thread

2шт.

28

1285718C2

QUICK MALE COUPLING

COUPLER, self-sealing male half, ISO standard, 3/4-16 straight thread

2шт.

29

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, used on couplers with 7/8-14 straight thread

2шт.

29

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, used on couplers with 3/4-16 straight thread

2шт.
