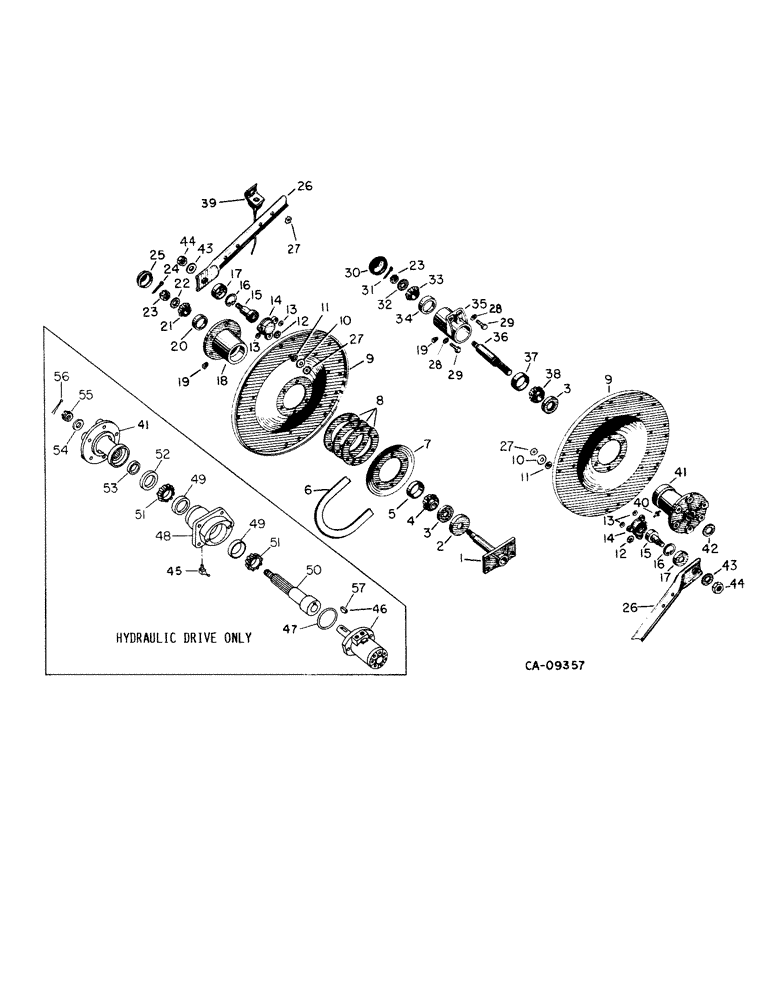

Запчасти Case IH 96 (G-09) - REEL ASSEMBLY

1

1254007C1

SUPPORT

LH

1шт.

Ground drive rakes only.

1шт.

2

1254008C1

SHIELD

dust

1шт.

Ground drive rakes only.

1шт.

3

1254003C1

SEALING WASHER

2шт.

Ground drive rakes only.

1шт.

4

455798R91

ROLLER BEARING,1.181" ID x 2.717" OD x 1.0623"

ASSY, cone

1шт.

Ground drive rakes only.

1шт.

5

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, cup

1шт.

Ground drive rakes only.

1шт.

6

ZA400875

BELT,0.879" W x 140.99" L

Round 0.879" W x 140.99" L

1шт.

7

ZA400025

PULLEY

half

1шт.

Ground drive rakes only.

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

6шт.

8

ZA400026

SHIM

6шт.

Ground drive rakes only.

1шт.

9

ZA400027

HEAD

reel

2шт.

10

477589R1

WASHER

.406 x 1.500 x .105

10шт.

11

1254009C1

WASHER

13/32 x 1-3/8 x 1/16 neoprene

10шт.

12

1254010C1

WASHER

13/32 x 1-3/4 x 1/16 neoprene

10шт.

13

142619H

WASHER

.406 x .750 x .105

20шт.

14

ZA400217

BEARING ASSY

tooth bar

10шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

30шт.

15

ZA400031

BALL BEARING,0.75" ID x 1.8504" OD x 2.125"

BEARING, tooth bar

10шт.

16

272842R1

SNAP RING,1.875", Int, #187

RING, 2.072 int ret

10шт.

17

ZA400032

SHIELD

dust

10шт.

18

ZA400023

HUB

ASSY, reel, includes ref nos. 5 and 20

1шт.

Ground drive rakes only.

1шт.

19

444854

PLUG,Hex Soc, 1/8"-27 NPTF

1/8-27 pln hex/skt auto drain

2шт.

Ground drive rakes only.

1шт.

20

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

1шт.

Ground drive rakes only.

1шт.

21

594446R91

ROLLER BEARING

BEARING ASSY, cone

1шт.

Ground drive rakes only.

1шт.

22

21713R1

WASHER,25/32" x 1 3/4" x .120"

.781 x 1.750 x .105

1шт.

23

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

24

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

25

518842R1

CAP

hub, replaces 614406R1

1шт.

Ground drive rakes only.

1шт.

26

ZA400532

BAR

tooth

5шт.

27

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

100шт.

28

178374R1

WASHER

.531 x 1.250 x .054

2шт.

29

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

30

811012C1

CAP

hub

1шт.

31

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

32

21753R1

WASHER

.781 x 1.500 x .054 znd

1шт.

33

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING ASSY, cne

1шт.

34

572564R1

BEARING CUP

BEARING, cup

1шт.

35

ZA400017

SUPPORT

ASSY, front reel, includes ref nos. 34 and 37

1шт.

36

ZA400188

SHAFT

reel

1шт.

37

13822V

BEARING

cup

1шт.

38

453279R91

ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"

ASSY, cone

1шт.

39

ZA400672

TOOTH

rubber, 96 rake

100шт.

39

ZA400673

TOOTH

rubber, 97 rake

100шт.

441549R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT, 3/8 x 2-1/2 crg type 5

100шт.

40

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

41

ZA400020

HUB ASSY.

HUB ASSY, reel

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

6шт.

42

351107R1

WASHER

35/64 x 2 x 1/4

1шт.

43

ZA010044

WASHER, 25/32 x 1-3/32 x 3/16

10шт.

44

9413972

LOCK NUT,3/4"-16, GB

NUT, 3/4-NF cad p/t lock type 5

10шт.

45

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

46

ZA400572

MOTOR

ASSY, hydraulic, 17.9 cubic in, for components see list of parts under details of hydraulic motor

1шт.

47

347360R1

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

3-1/4 x 3-7/16 class 5

1шт.

48

ZA400890

HOUSING

ASSY, bearing, includes ref nos. 45 and 49

1шт.

49

61801C1

BEARING CUP,63mm OD x 13.5mm W

BEARING, housing cup

2шт.

50

ZA400876

SHAFT

ASSY, drive

1шт.

51

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

BEARING ASSY, cone

2шт.

52

ZA015001

SEAL, oil

1шт.

53

ZA400881

SPACER

1-3/8 ID x 1-15/16 OD x 13/16 in. thick

1шт.

54

390311C1

WASHER,15/16" x 1 3/4" x .134", HDN

.938 x 1.750 x .134 hdn

1шт.

55

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF slt type 5

1шт.

56

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

57

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.
