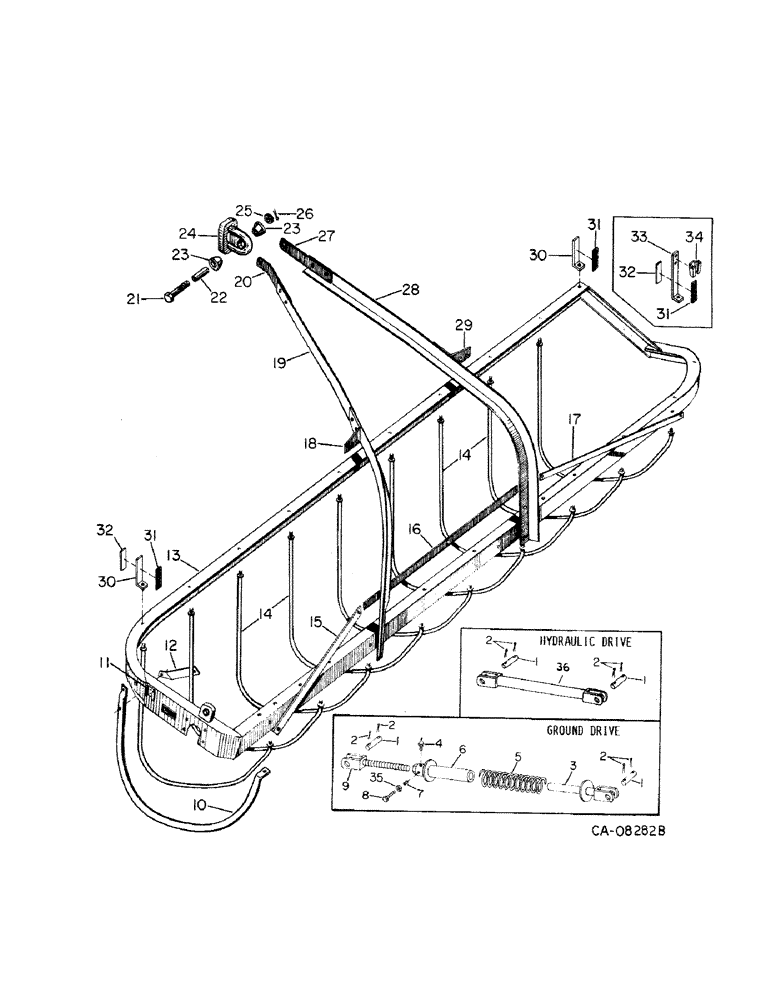

Запчасти Case IH 96 (G-07) - FRAME AND BASKET

1

ZA400113

PIN

1 in. x 2-3/8 in.

2шт.

2

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

3

ZA400439

TUBE

ASSY, rear

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

5

ZA400448

SPRING

compression, 12 active coils

1шт.

6

ZA400438

TUBE

ASSY, front

1шт.

7

1254004C1

PLUG

1шт.

8

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

1шт.

9

ZA400443

ROD

ASSY, front

1шт.

10

ZA400648

BAR

rear fender, 96 rake

1шт.

10

ZA400649

BAR

rear fender, 97 rake

1шт.

11

1265864C1

BRACKET

SMV, 96 rake only

1шт.

12

ZA400646

BAR

BRACE, LH, 96 rake

1шт.

12

ZA400647

BAR

BRACE, RH, 97 rake

1шт.

13

ZA400520

FRAME

ASSY, main, 96 rake

1шт.

13

ZA400521

FRAME

ASSY, main, 97 rake

1шт.

14

ZA400644

BAR

stripper, 96 rake

9шт.

14

ZA400645

BAR

stripper, 97 rake

9шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

17шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

1шт.

15

ZA400181

BRACE

STRAP, brace left

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

2шт.

16

ZA400182

BRACE

STRAP, brace center

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

2шт.

17

ZA400183

BRACE

STRAP, brace right

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

2шт.

18

ZA400681

ANGLE

CLIP, support LH, 96 rake

1шт.

18

ZA400682

ANGLE

CLIP, support LH, 97 rake

1шт.

19

ZA400561

FRAME

ASSY, sub angle LH, 96 rake

1шт.

19

ZA400562

FRAME

ASSY, sub angle LH, 97 rake

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

3шт.

20

ZA400036

STRAP

pivot left

1шт.

22177R1

RIVET,But Hd, 1/2" x 1"

1/2 x 1 znp but/hd sol

2шт.

21

91186C1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1/2 x 2-1/2 dld type 8, also order spacer, 91185C1

1шт.

22

91185C1

SPACER

9/16 x 1-1/4 in. long, also order bolt, 91186C1

1шт.

23

1265877C1

RUBBER BUSHING

BUSHING, rubber

2шт.

274

ZA400156

HOLDER

JAW, tilt adjusting

1шт.

25

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 slt type 5

1шт.

26

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

27

ZA400040

STRAP

pivot right

1шт.

22177R1

RIVET,But Hd, 1/2" x 1"

1/2 x 1 znp but/hd sol

2шт.

28

ZA400565

FRAME

ASSY, sub angle RH, 96 rakes

1шт.

28

ZA400566

FRAME

ASSY, sub angle RH, 97 rakes

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

3шт.

29

ZA400683

ANGLE

CLIP, support RH, 96 rake

1шт.

29

ZA400684

ANGLE

CLIP, support RH, 97 rake

1шт.

22177R1

RIVET,But Hd, 1/2" x 1"

1/2 x 1 znp but/hd sol

2шт.

30

ZA400862

BRACKET

small, 2 used on 96 rake, 1 used on 967 rake

1шт.

124847

COLLAR

5/8 jam type 5

1шт.

31

175311C1

REFLECTOR

red

2шт.

32

174732C1

REFLECTOR

amber

1шт.

33

ZA400861

BRACKET

large, 97 rake only

1шт.

34

398976R1

BRACKET

SUPPORT, SMV, 97 rake only

1шт.

35

120377

NUT,3/8" - 16, Gr 5

1шт.

36

ZA400743

ROD

ASSY

1шт.
