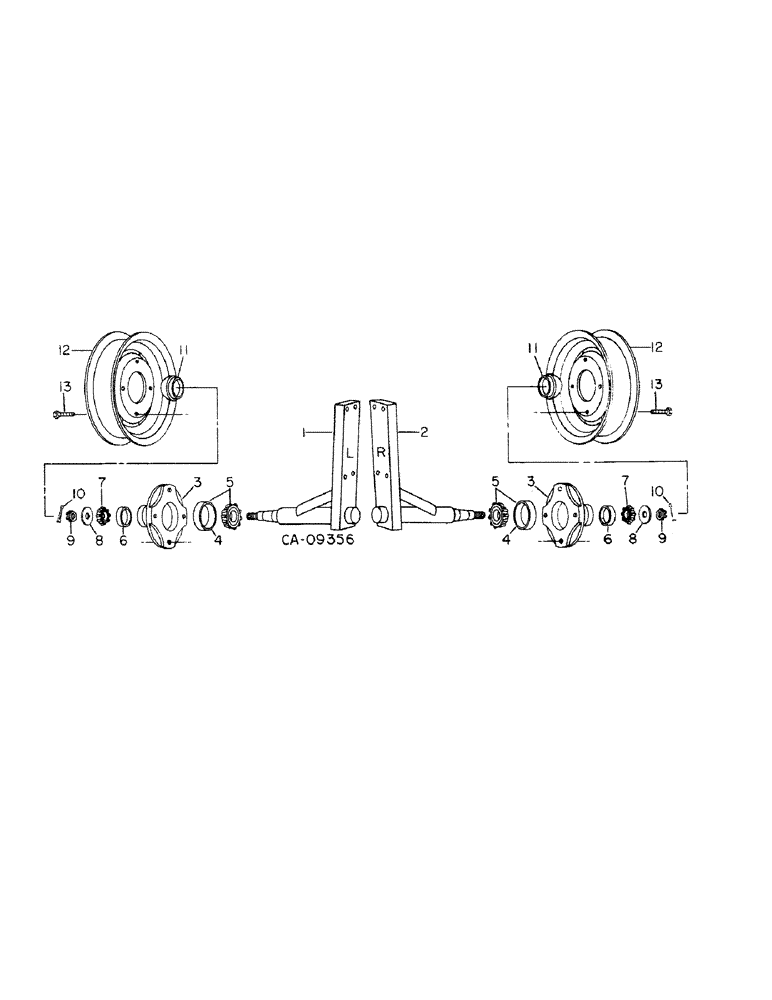

Запчасти Case IH 96 (G-06) - SPINDLES, BEARINGS, HUBS AND WHEELS, HYDRAULIC DRIVE RAKES

1

ZA400882

SPINDLE

ASSY, LH

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

ZA400883

SPINDLE

ASSY, RH

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

465492R2

HUB

wheel

1шт.

4

651817R1

BEARING CUP

BEARING, hub inner cup

2шт.

5

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL ASSY, hub inner cone

2шт.

6

651814R1

BEARING CUP

BEARING, hub outer cup

2шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, hub outer cone

2шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

8

130999

WASHER,5/8"

.688 x 1.750 x .108

2шт.

9

NLS

NO LONGER SERVICED

5/8-NF slt type 5

2шт.

10

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

11

522021R1

CAP

hub

2шт.

12

455169R92

WHEEL

ASSY, 15 inch, for 5.00-15 tire

2шт.

13

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel hub

8шт.
