Запчасти Case IH 96 (G-02) - MAIN FRAME, BELT SHIELD AND DRIVE PARTS

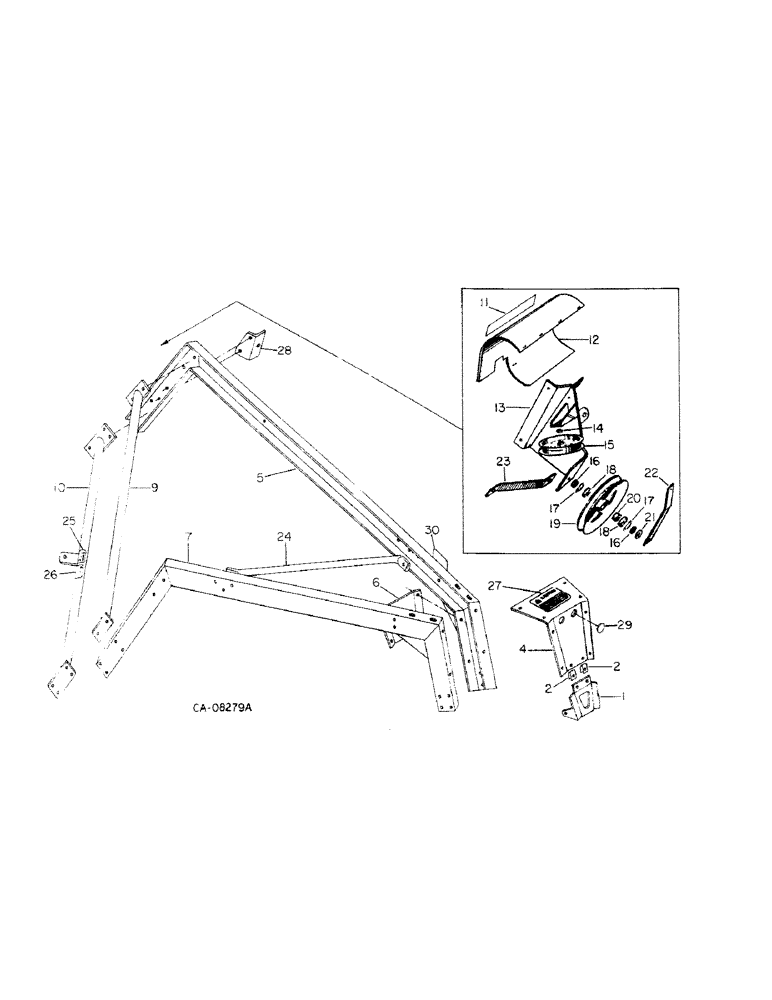

Схема запчастей Case IH 96 - (G-02) - MAIN FRAME, BELT SHIELD AND DRIVE PARTS

Артикул

Название

Примечание

Количество

1

ZA400724

COVER

pivot, 96 rake w/serial no. 575 & below, 97 rake w/serial no. 525 & below

1шт.

1

ZA400783

COVER

pivot, 96 rake w/serial no. 576 & above, 97 rake w/serial no. 526 & above

1шт.

2

488837C1

SPRING NUT

5/16 "U" type speed

4шт.

3

(Not used this application)

1шт.

4

1265870C91

SUPPORT

W/PRODUCT GRAPHIC, ZA017043

1шт.

5

ZA400600

CHANNEL

96 rake

1шт.

5

ZA400601

CHANNEL

97 rake

1шт.

6

ZA400653

PLATE

lower

1шт.

7

ZA400602

CHANNEL

96 rake

1шт.

7

ZA400603

CHANNEL

97 rake

1шт.

8

(Not used this application)

1шт.

9

ZA400725

BRACE

ASSY, middle, 96 rake

1шт.

9

ZA400726

BRACE

ASSY, middle, 97 rake

1шт.

10

1253998C91

BRACE

W/PRODUCT GRAPHIC, ZA764771, rear LH, 96 rake

1шт.

10

1253997C91

BRACE

W/PRODUCT GRAPHIC, ZA764771 and ZA017044, rear RH, 97 rake (NSS)

1шт.

11

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, belt and clutch instruction

1шт.

Ground drive rakes.

1шт.

12

ZA400666

SHIELD

belt, 96 rake

1шт.

Ground drive rakes.

1шт.

12

ZA400667

SHIELD

belt, 97 rake

1шт.

Ground drive rakes.

1шт.

13

ZA400668

BRACKET

ASSY, idler mounting, 96 rake

1шт.

Ground drive rakes.

1шт.

13

ZA400669

BRACKET

ASSY, idler mounting, 97 rake

1шт.

Ground drive rakes.

1шт.

14

384678R1

SPACER

1/2 x 3/4 x 1/2 in. long

1шт.

Ground drive rakes.

1шт.

15

ZA400870

PULLEY

ASSY

1шт.

Ground drive rakes.

1шт.

16

60847C1

BUSHING

SPACER

2шт.

Ground drive rakes.

1шт.

17

273026R1

SNAP RING,1.375", Int, #137

RING, 1.526 int ret

2шт.

Ground drive rakes.

1шт.

18

582010R91

BEARING ASSY,0.625" ID x 1.375" OD x 0.4331"

ball

2шт.

Ground drive rakes.

1шт.

19

ZA400075

PULLEY

SHEAVE

1шт.

Ground drive rakes.

1шт.

20

HA4457

SPACER

1/2 x .625 std pipe

1шт.

Ground drive rakes.

1шт.

21

131016

WASHER

.656 x 1.312 x .074

1шт.

Ground drive rakes.

1шт.

22

ZA400077

BRACKET

shield

1шт.

Ground drive rakes.

1шт.

23

ZA400651

BRACKET

tie, 96 rake

1шт.

Ground drive rakes.

1шт.

23

ZA400652

BRACKET

tie, 97 rake

1шт.

Ground drive rakes.

1шт.

24

ZA400067

BRACE

diagonal

1шт.

25

ZA764771

PRODUCT GRAPHIC

warning, no riders

1шт.

26

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, important, 97 rake

1шт.

27

ZA017043

PRODUCT GRAPHIC, caution, general safety

1шт.

28

ZA400732

BRACKET

anchor LH, 96 rake

1шт.

Hydraulic drive rakes.

1шт.

28

ZA400733

BRACKET

anchor RH, 97 rake

1шт.

Hydraulic drive rakes.

1шт.

29

454174

PLUG, 15/16 hole dia znp button

2шт.

Ground drive rakes.

1шт.

30

ZA017291

PRODUCT GRAPHIC, warning, to avoid injury

1шт.

Hydraulic drive rakes.

1шт.

Выбрано товаров: 59
