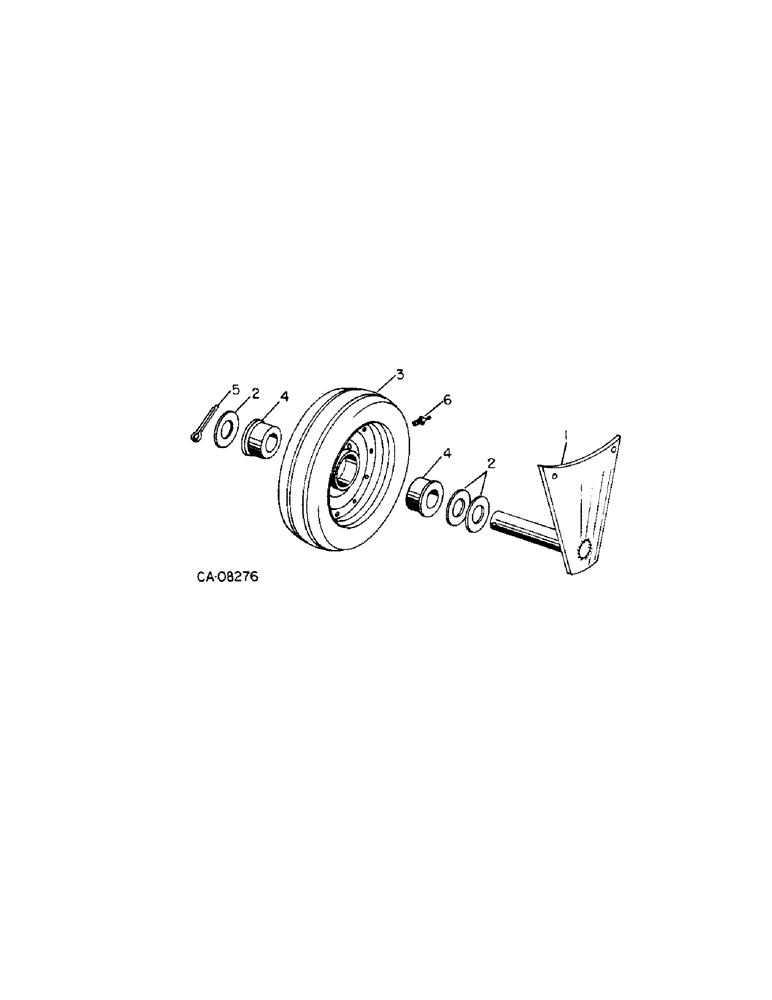

Запчасти Case IH 96 (G-18[A]) - GAUGE WHEEL

1

ZA400195

BRACKET

ASSY, wheel

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

2шт.

2

21211R1

WASHER

.781 x 1.500 x .164

3шт.

3

ZA400214

WHEEL

ASSY, includes ref nos. 4 and 6

1шт.

4

202248C1

BUSHING

BEARING, 3/4 in. ID x 1-1/2 in. OD

2шт.

5

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
