Запчасти Case IH 96 (G-17) - CASTER WHEEL AND CONNECTIONS

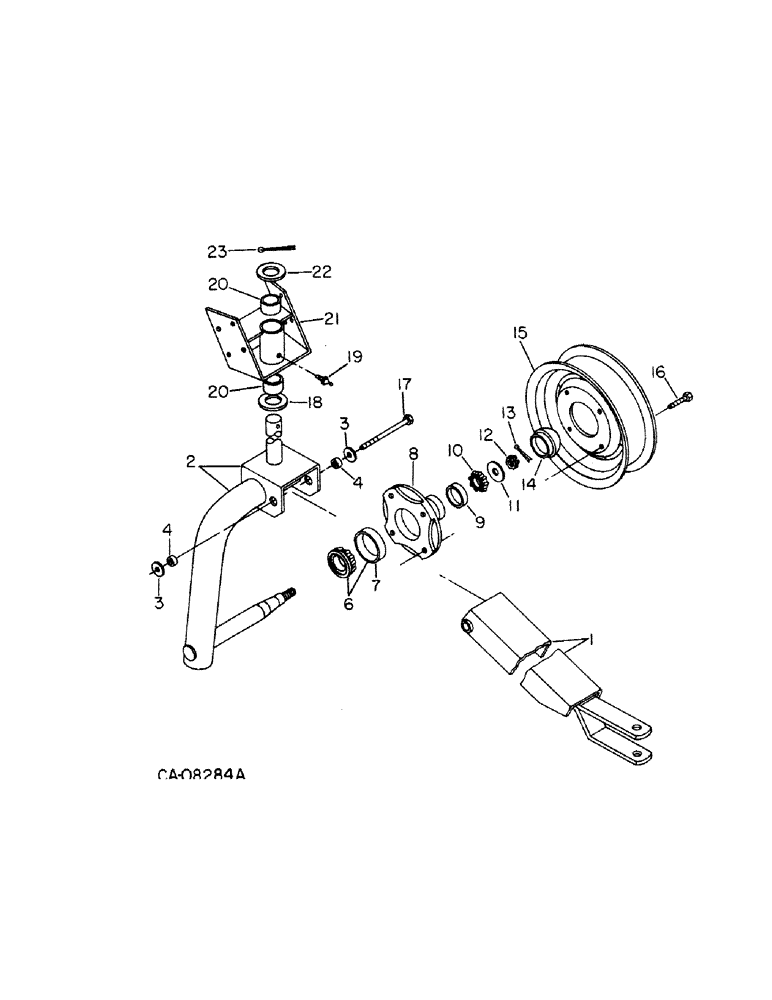

Схема запчастей Case IH 96 - (G-17) - CASTER WHEEL AND CONNECTIONS

Артикул

Название

Примечание

Количество

1

ZA400685

TOW BAR

TONGUE ASSY, short hitch, 96 rake

1шт.

1

ZA400787

EXTENSION

TONGUE ASSY, long hitch, 97 rake

1шт.

2

ZA400578

SPINDLE

ASSY

1шт.

3

131016

WASHER

.656 x 1.312 x .074

2шт.

4

60847C1

BUSHING

SPACER, 21/32 x 7/8 x 5/16

2шт.

5

(Not used)

1шт.

6

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL ASSY, hub inner cone

1шт.

7

651817R1

BEARING CUP

BEARING, hub inner cup

1шт.

8

465492R2

HUB

wheel

1шт.

9

651814R1

BEARING CUP

BEARING, cup

1шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, cone

1шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

11

446257

WASHER,3/4" x 1 3/4" x .148"

.812 x 1.750 x .122

1шт.

12

125267

NUT

5/8-NF slt type 5

1шт.

13

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

14

522021R1

CAP

hub

1шт.

15

455169R92

WHEEL

ASSY, 15 in., for 5.00-15 tire

1шт.

16

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel hub

4шт.

17

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

1шт.

18

446302

WASHER, 1.438 x 3.000 x .150 pln

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

20

1254000C1

BUSHING

pivot

2шт.

21

ZA400437

PIVOT

ASSY, includes ref no. 20, replaces ZA400728 for 96 rake w/serial no. 575 and below, 97 rake w/serial no. 525 and below by also ordering cover, ZA400783

1шт.

22

22481R1

WASHER

1.406 x 2.250 x .054

2шт.

23

103411

SPLIT (COTTER), 3/16" x 2"

1шт.

Выбрано товаров: 25
