Запчасти Case IH 96 (G-16) - DUAL HITCH ATTACHMENT

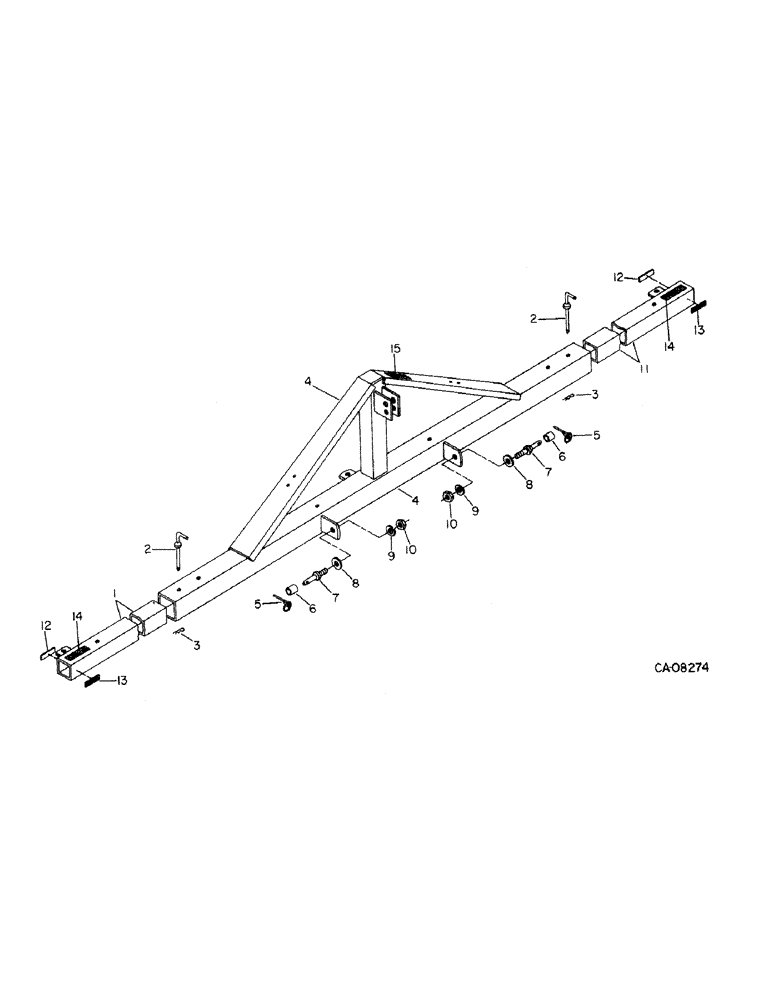

Схема запчастей Case IH 96 - (G-16) - DUAL HITCH ATTACHMENT

Артикул

Название

Примечание

Количество

1

1253995C91

TUBE

W/PRODUCT GRAPHIC, RH

1шт.

2

ZA722152

PIN

ASSY, frame

2шт.

3

480523R1

HAIR PIN COTTER

quick attachable

2шт.

4

FRAME ASSY, not serviced separately

1шт.

5

621006C1

PIN

ASSY, linch

2шт.

6

380579R91

BUSHING

PARTS ACCESSORY, bushing & pin adapter, for use w/category I implements when mounted on category II hitch

1шт.

7

525921R1

STUD

PIN, link, w/7/8 thread

2шт.

8

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

29/32 x 1-1/2 x 1/4 flat

2шт.

9

NLS

NO LONGER SERVICED

7/8"

2шт.

10

426767

NUT,7/8"-14, G5

7/8-NF type 5

2шт.

11

1253994C91

TUBE

W/PRODUCT GRAPHIC, LH

1шт.

12

175311C1

REFLECTOR

red

2шт.

13

174732C1

REFLECTOR

amber

2шт.

14

PRODUCT GRAPHIC, important (NSS)

2шт.

15

ZA017043

PRODUCT GRAPHIC, caution, general safety

1шт.

Выбрано товаров: 15
