Запчасти Case IH 9 (B-08) - DRIVE

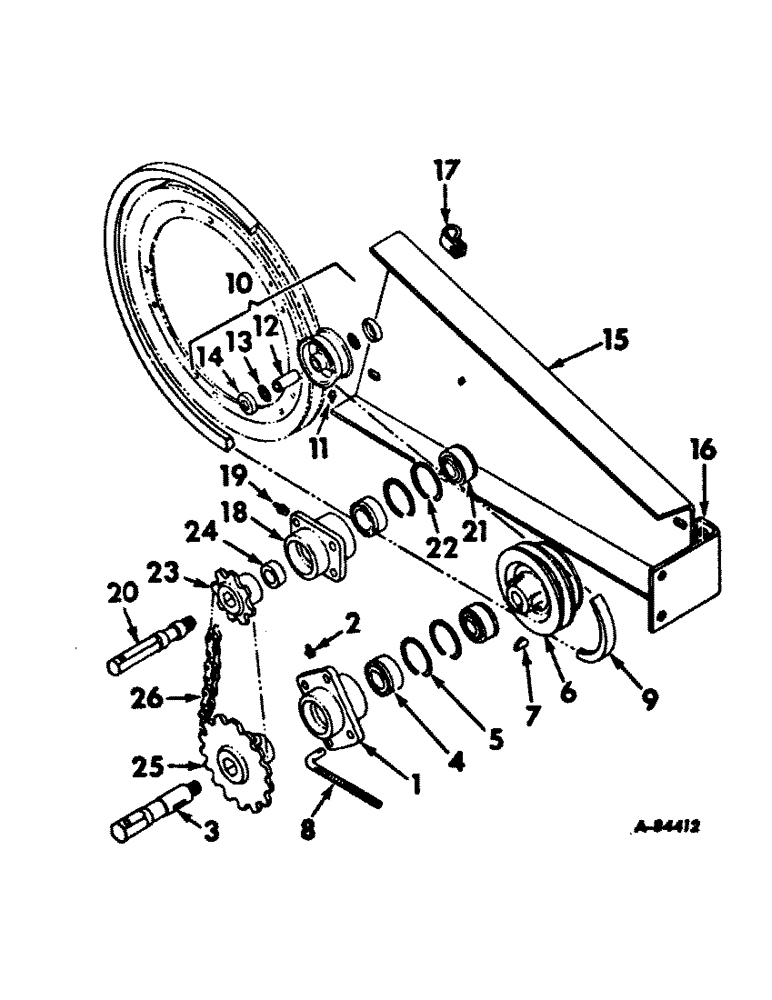

Схема запчастей Case IH 9 - (B-08) - DRIVE
4
20
17
9
2
19
14
11
10
3
26
25
22
24
16
7
15
1
18
13
6
23
5
8
21
12

Артикул

Название

Примечание

Количество

1

473360R1

HOUSING

HUB

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. lock

2шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap. lub

1шт.

3

480376R1

SHAFT, drive pulley

1шт.

N42395

WASHER

1-9/32 x 1-3/4 x 12 ga

1шт.

444257

TEE,3/8"-18 Fem x Male Run x Fem Br

WASHER, 13/16 x 1-3/4 x .148 C-Z

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 C-Z ESNA stop

1шт.

4

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, roller

2шт.

5

457381R1

RING

bearing retaining

2шт.

6

480377R1

PULLEY, drive

1шт.

7

117979

KEY

5/16 x 1-1/8 Woodruff C

1шт.

8

480378R1

ROD, tightener

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

26267K

BELT,0.785" W x 119.66" L

Drive 0.785" W x 119.66" L

1шт.

10

464893R91

ASSEMBLY

IDLER ASSY, drive belt

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 C-Z hex-hd cap

1шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. lock

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

6шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap. lub

1шт.

12

464898R1

BUSHING

BEARING, idler

1шт.

13

464900R1

THRUST WASHER

thrust

2шт.

14

464899R1

CUP WASHER

cupped

2шт.

15

480387R11

SHIELD W/PRODUCT GRAPHIC, drive

1шт.

16

480388R1

BRACKET, shield

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. lock

2шт.

19760R1

BOLT, 3/8 x 5/8 C-Z sq-nk crg

2шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. lock

2шт.

17

480389R1

CLAMP

2шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

SCREW, 1/2 x 3/4 C-Z hex-hd cap

1шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. lock

1шт.

18

473360R1

HOUSING

HUB, see note A

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

4шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. lock

4шт.

19

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap. lub, see note A

1шт.

20

480391R1

SHAFT, drive sprocket, see note A

1шт.

446256

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 zn-pltd ESNA stop

1шт.

21

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, roller, see note A

2шт.

22

457381R1

RING

bearing retaining, see note A

2шт.

23

480392R1

SPROCKET, drive, see note A

8шт.

24

289304R1

SPACER

see note A

1шт.

25

480393R1

SPROCKET, driven, 15T, see note A

1шт.

112998

SCREW

1/2-13 x 1-1/2 sq-hd cone-pt set

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

26

CHAIN, drive, see note A, use 22 links of 1-1/4 extended pitch roller chain from 10 ft. rolls marked 569089R91, 1 connecting link 456980R91 and 2 offset links 456929R91

1шт.

456980R91

CHAIN LINK

LINK, #2050 double pitch connecting

1шт.

456929R91

CHAIN LINK

LINK, #2050 double pitch offset

1шт.

Выбрано товаров: 50
