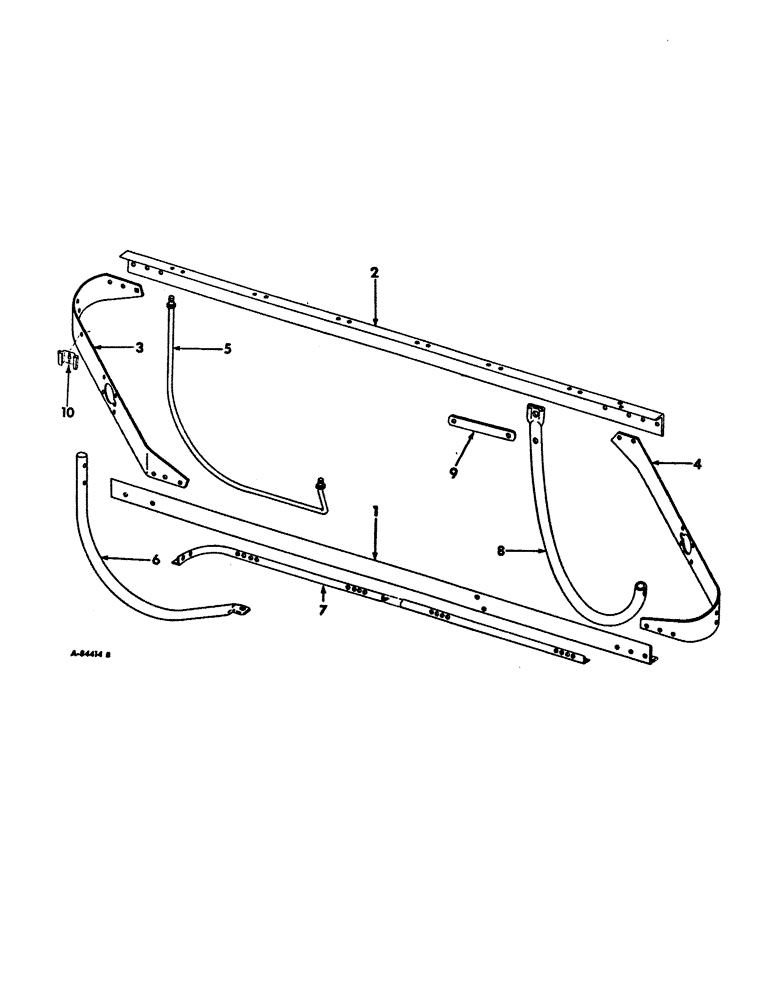

Запчасти Case IH 9 (B-07) - STRIPPER FRAME, STRIPPERS, BRACE AND SAFETY LIGHT BRACKET

1

473506R2

ANGLE, rear frame

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

6шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 C-Z hex-hd mach

2шт.

473361R1

NUT, 1/2-13 hex. flange lock

6шт.

2

473504R2

ANGLE, front frame

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

3шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

477913R1

BOLT, 1/2 x 1-1/2 long neck crg

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

1шт.

473361R1

NUT, 1/2-13 hex. flange lock

5шт.

3

473367R1

FRAME, left end

1шт.

4

473368R2

FRAME

right end

1шт.

5

473373R1

STRIPPER

5шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

10шт.

667927R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-16 hex. 2-way lock

10шт.

6

473374R1

ROD

STRIPPER, end left

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

1шт.

473361R1

NUT, 1/2-13 hex. flange lock

3шт.

7

473901R1

ANGLE, stripper brace

1шт.

23272K

BOLT,3/8" - 16 x 1 3/8"

U-BOLT

5шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. flange lock

10шт.

645151R1

BOLT,3/8" - 24

U-BOLT

1шт.

666639R1

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 hex. lock

2шт.

8

473513R1

STRIPPER

RH end

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

2шт.

473361R1

NUT, 1/2-13 C-Z hex. flange lock

3шт.

9

457862R2

BRACE

RH end stripper

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. flange lock

1шт.

10

398976R1

BRACKET

SOCKET, safety light bracket

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. 2-way lock

1шт.

480093R1

TOOL

stripper straightening

1шт.
