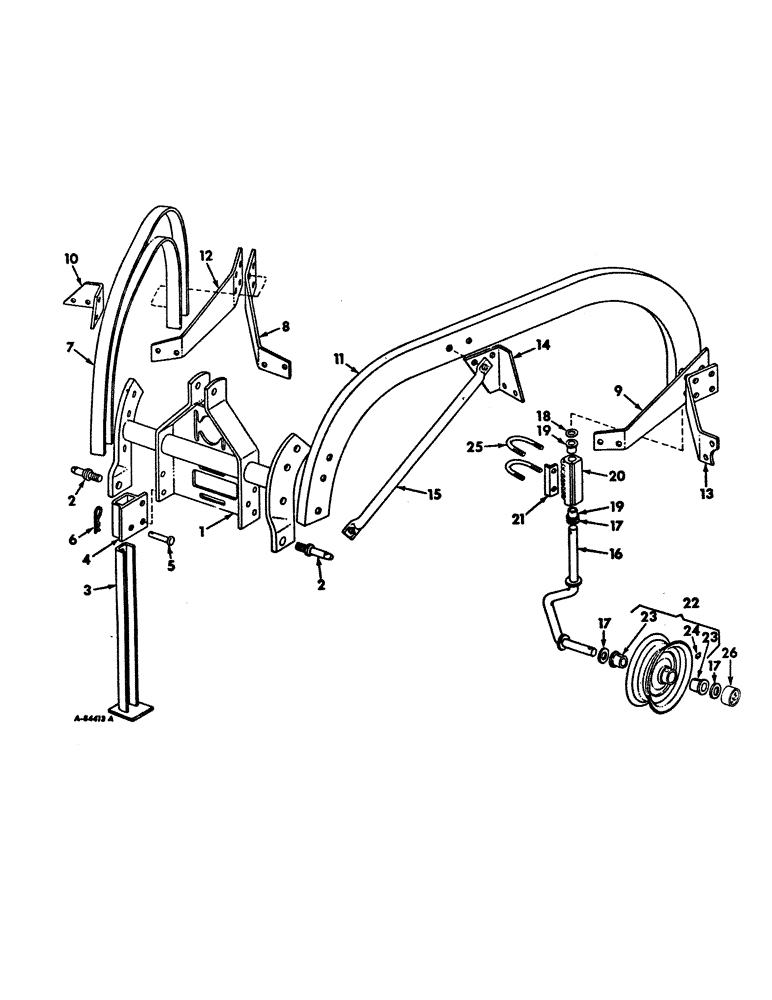

Запчасти Case IH 9 (B-03) - MAIN FRAME, HITCH AND CASTER WHEELS

1

480358R91

HITCH ASSY, three point

1шт.

2

525921R1

STUD

PIN, link

2шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex.

2шт.

131047

WASHER,7/8"

7/8"

2шт.

3

480365R11

SUPPORT ASSY

1шт.

4

480366R11

BRACKET ASSY, support

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8 x 1-1/2 C-Z hex-hd cap

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

5

21933R1

PIN

5/8 x 2-1/2 C-Z std-hd

1шт.

6

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

7

480367R1

BEAM, right

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

3шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

6шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

3шт.

8

480369R1

BRACKET, right rear RH

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. lock

2шт.

9

480368R1

BRACKET, right rear LH

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. lock

2шт.

10

480370R1

BRACKET, right front

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. lock

2шт.

11

480371R1

BEAM, left

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

4шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

2шт.

12

480373R1

BRACKET, left rear RH

1шт.

13

480372R1

BRACKET, left rear LH

1шт.

14

480374R1

BRACKET, left front

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

3шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. lock

3шт.

15

480375R1

PIPE, brace

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 C-Z

4шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

2шт.

16

480396R11

AXLE ASSY, caster wheel

2шт.

20038R1

NUT

WASHER, 1-1/32 x 1-5/8 x 16 ga C-Z

2шт.

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

17

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

4шт.

18

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

2шт.

19

277523R1

BUSHING

caster wheel housing

4шт.

20

480397R1

HOUSING, caster wheel

2шт.

21

480398R1

ANGLE, housing

2шт.

22

480427R91

WHEEL ASSY, caster, 2.50A x 8 rim for 4.80/4.00 x 8 tires

1шт.

23

480428R1

BUSHING

BEARING, wheel

4шт.

24

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap, lub

1шт.

25

298786R1

BOLT

U 3/8-16 x 3

4шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. lock

8шт.

26

481189R1

CAP

wheel hub

2шт.
