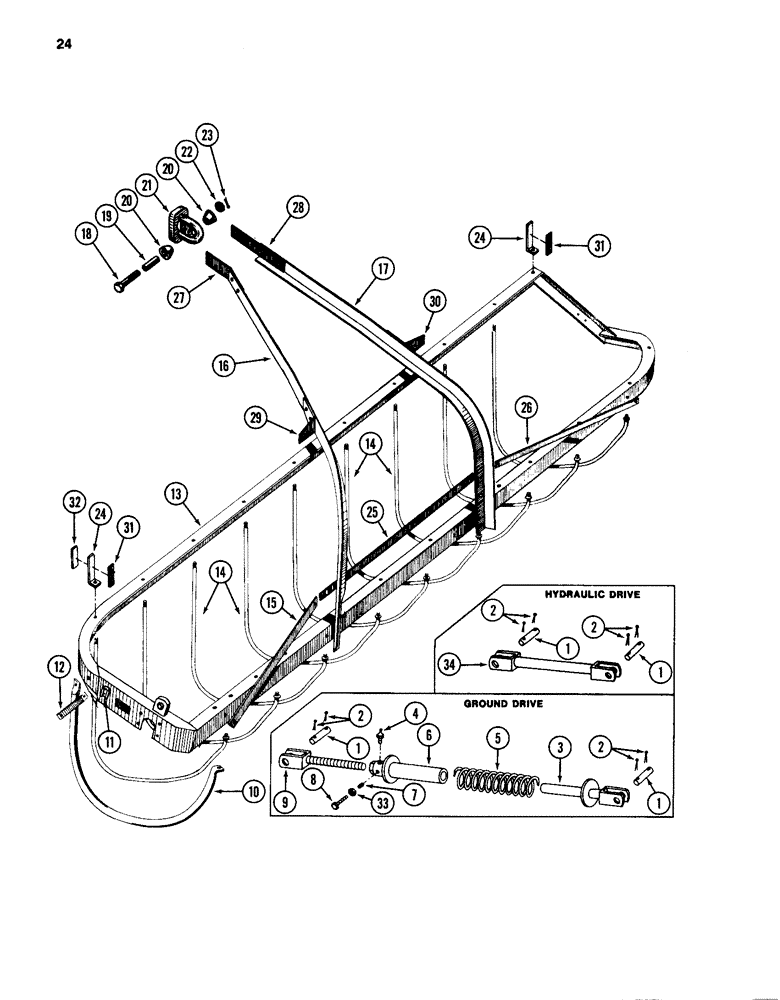

Запчасти Case IH 86 (24) - FRAME AND BASKET, 86 RAKE

1

ZA400113

PIN

- 1 inch diameter x 2-3/8 inch long

2шт.

2

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

3

ZA400439

TUBE

ASSEMBLY - rear

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

5

ZA400448

SPRING

- compression

1шт.

6

ZA400438

TUBE

ASSEMBLY - front

1шт.

7

1254004C1

PLUG

1шт.

8

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

9

ZA400443

ROD

ASSEMBLY - front

1шт.

10

ZA400648

BAR

- rear fender

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1шт.

11

1265864C1

BRACKET

- lamp

1шт.

135287

RIVET,Truss Hd, 3/16" x 9/16"

- truss head solid, 3/16 x 9/16 inch

1шт.

135331

RIVET,Truss Hd, 1/4" x 5/8"

- truss head solid, 1/4 x 9/16 inch

1шт.

12

ZA400646

BAR

BRACE - fender bar

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

13

ZA400011

FRAME

ASSEMBLY - main

1шт.

14

ZA400644

BAR

- stripper

8шт.

25528R1

NUT,5/8"-11, G8

- hex, 5/8 inch NC, Grade 8

15шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

1шт.

15

ZA400181

BRACE

STRAP - brace left

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

2шт.

16

ZA400561

FRAME

ASSEMBLY - sub angle left

1шт.

17

ZA400565

FRAME

ASSEMBLY - sub angle right

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

6шт.

18

91186C1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

- hex, drilled, 1/2 NC x 2-1/2 inch, Grade 8

1шт.

19

91185C1

SPACER

- 9/16 x 1-1/4 inch long

1шт.

20

1265877C1

RUBBER BUSHING

BUSHING - rubber

2шт.

21

ZA400156

HOLDER

JAW - tilt adjusting

1шт.

22

121592

SLOTTED NUT,1/2"-13, G5

NUT - slotted hex, 1/2 inch NC

1шт.

23

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

24

ZA400862

BRACKET

- small

2шт.

25

ZA400182

BRACE

STRAP - brace center

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

2шт.

26

ZA400183

BRACE

STRAP - brace right

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

2шт.

27

ZA400036

STRAP

- pivot left

1шт.

22177R1

RIVET,But Hd, 1/2" x 1"

- button head solid, 1/2 x 1 inch

2шт.

28

ZA400040

STRAP

- pivot right

1шт.

22177R1

RIVET,But Hd, 1/2" x 1"

- button head solid, 1/2 x 1 inch

2шт.

29

ZA400681

ANGLE

- support left

1шт.

22177R1

RIVET,But Hd, 1/2" x 1"

- button head solid, 1/2 x 1 inch

2шт.

30

ZA400683

ANGLE

- support right

1шт.

22177R1

RIVET,But Hd, 1/2" x 1"

- button head solid, 1/2 x 1 inch

2шт.

31

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

32

1284365C1

REFLECTOR,Reflector Amber

- amber

1шт.

33

120377

NUT,3/8" - 16, Gr 5

1шт.

34

ZA400743

ROD

ASSEMBLY

1шт.
