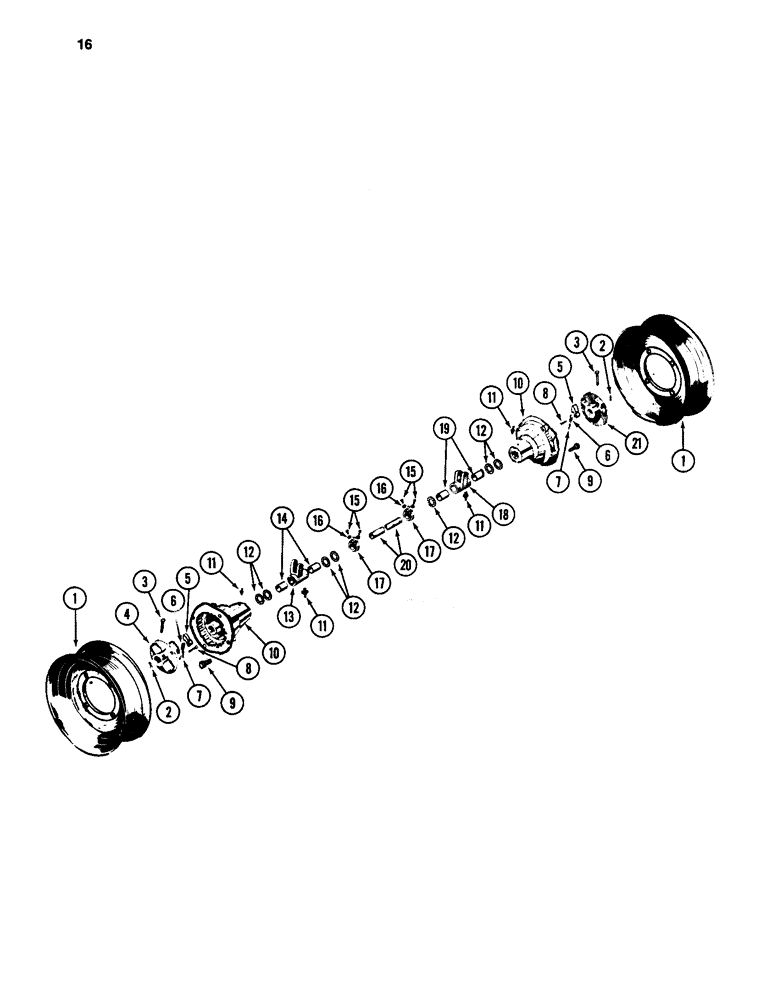

Запчасти Case IH 86 (16) - WHEELS AND WHEEL DRIVE, 86 HYDRAULIC DRIVE RAKE

1

455169R92

WHEEL

ASSEMBLY - 15 inch (For 5.00-15 Tire)

2шт.

2

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

3

96318C1

RIVET

- drilled, 3/8 x 3-1/8 inch

2шт.

4

ZA400082

HUB

- left ratchet

1шт.

5

ZA400083

PAWL

- drive

2шт.

6

1254006C1

SPRING

2шт.

7

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

8

ZA013239

RIVET - drilled, 1/4 x 1-3/8 inch

2шт.

9

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- wheel hub

8шт.

10

ZA400084

HUB

- wheel drive

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

12

Q3484

WASHER

- flat, 1-9/32 x 1-7/8 x 1/16 inch (33 x 47 x 1 mm)

1шт.

13

ZA400179

BRACKET

ASSEMBLY - bearing

1шт.

14

1265895C2

BUSHING

- bracket

2шт.

15

84983

SET SCREW,3/8" x 1"

SCREW - square head set, 3/8 NC x 1 inch

4шт.

16

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

17

1254001C1

COLLAR

- set

2шт.

18

ZA400088

BRACKET

ASSEMBLY - bearing

1шт.

19

1265895C2

BUSHING

- bracket

2шт.

20

ZA400080

SHAFT

- axle

1шт.

21

ZA400081

HUB

- right ratchet

1шт.
