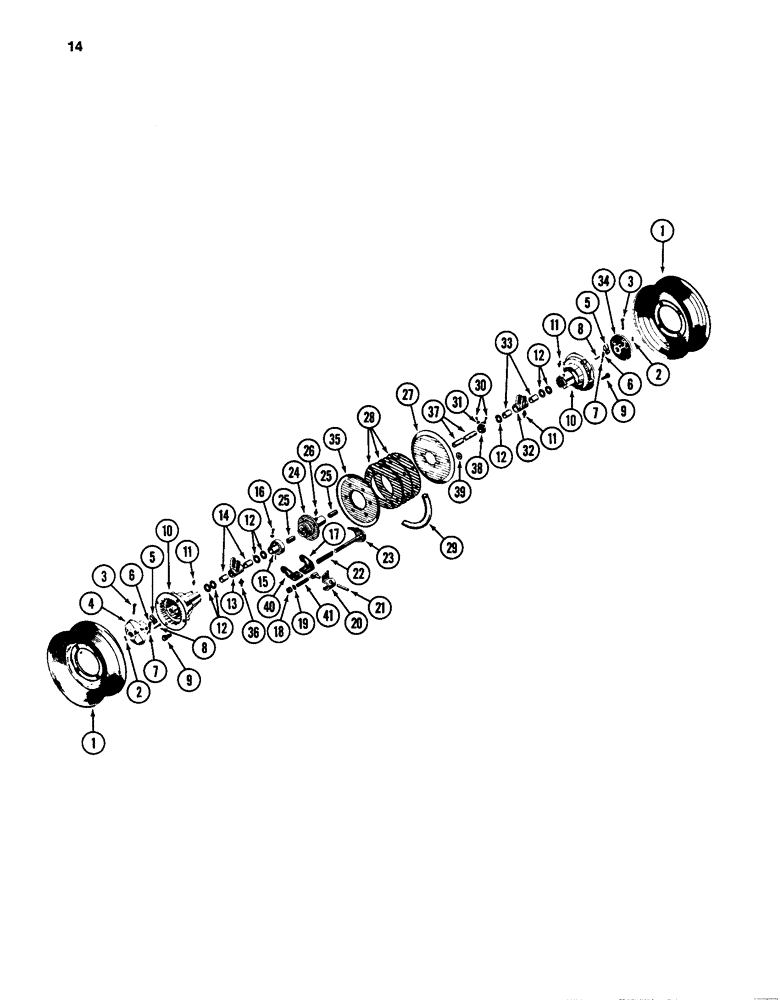

Запчасти Case IH 86 (14) - WHEELS AND WHEEL DRIVE, 86 GROUND DRIVE RAKE

1

455169R92

WHEEL

ASSEMBLY - 15 inch (For 5.00-15 Tire)

2шт.

2

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

3

96318C1

RIVET

- drilled, 3/8 x 3-1/8 inch

2шт.

4

ZA400082

HUB

- left ratchet

1шт.

5

ZA400083

PAWL

- drive

2шт.

6

1254006C1

SPRING

2шт.

7

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

8

1978921C1

RIVET

- drilled, 1/4 x 1-3/8 inch ( replaced ZA013239 )

2шт.

9

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- wheel hub

8шт.

10

ZA400084

HUB

- wheel drive

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

3шт.

12

Q3484

WASHER

- 1-9/32 x 1-7/8 x 1/16 inch (33 x 47 x 1 mm)

1шт.

13

ZA400179

BRACKET

ASSEMBLY - bearing

1шт.

14

1265895C2

BUSHING

- bracket

2шт.

15

ZA400656

CLUTCH

HUB - clutch

1шт.

16

1253999C1

SCREW

- set

1шт.

17

ZA400177

BRACKET

- shifter

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

18

9413960

LOCK NUT,5/8"-11, GB

NUT - prevailing torque lock, 5/8 inch NC

1шт.

19

NLS

NO LONGER SERVICED

- flat, 21/32 x 1-5/16 x 5/64 inch (17 x 33 x 2 mm)

1шт.

20

ZA400174

CAM

- shifter

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

1шт.

21

ZA400096

SLIDE

- shifter

1шт.

22

1254005C1

SPRING

- yoke

1шт.

23

ZA400172

YOKE

ASSEMBLY

1шт.

24

ZA400660

HUB

ASSEMBLY - drive

1шт.

25

1254011C1

BUSHING

- hub

2шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

27

ZA400092

PULLEY

SHEAVE - drive (half)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

6шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

28

ZA400191

SPACER

- (For sheave)

6шт.

29

ZA400875

BELT,0.879" W x 140.99" L

Round 0.879" W x 140.99" L

1шт.

30

84983

SET SCREW,3/8" x 1"

SCREW - square head set, 3/8 NC x 1 inch

2шт.

31

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

32

ZA400088

BRACKET

ASSEMBLY - bearing

1шт.

33

1265895C2

BUSHING

- bracket

2шт.

34

ZA400081

HUB

- right ratchet

1шт.

35

ZA400192

PULLEY

SHEAVE - left drive (Half)

1шт.

36

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8 inch PTF, short, 30 degree

1шт.

37

ZA400080

SHAFT

- axle

1шт.

38

1254001C1

COLLAR

- set

1шт.

39

21740R1

WASHER

- flat, 17/32 x 1-1/2 x 1/16 inch (14 x 38 x 1 mm)

6шт.

40

ZA400176

BRACKET

- shifter

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

41

1265894C1

BUSHING

1шт.
