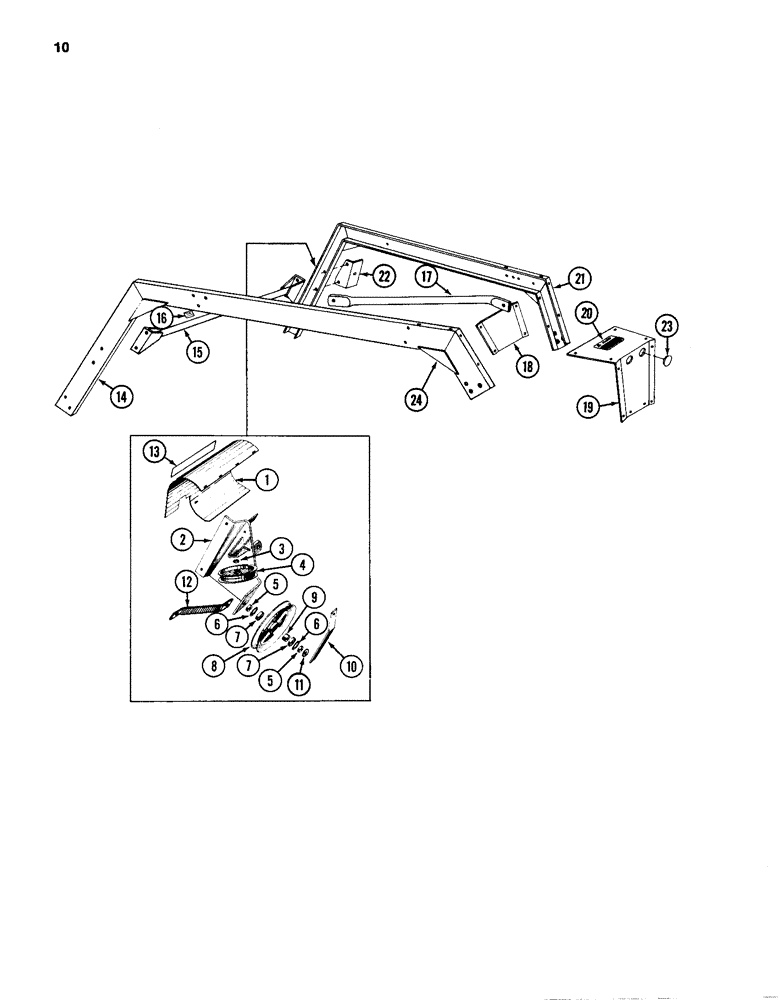

Запчасти Case IH 86 (10) - MAIN FRAME, BELT SHIELD AND DRIVE PARTS, 86 RAKE

1

ZA400666

SHIELD

- bolt (See Note A)

1шт.

2

ZA400668

BRACKET

- idler mounting (See Note A)

1шт.

3

384678R1

SPACER

- 1/2 x 3/4 inch (See Note A)

1шт.

4

ZA400870

PULLEY

- idler (See Note A)

1шт.

5

60847C1

BUSHING

SPACER - 21/32 x 7/8 inch (See Note A)

2шт.

6

273026R1

SNAP RING,1.375", Int, #137

RING - internal retaining, 1.526 inch (See Note A)

2шт.

7

582010R91

BEARING ASSY,0.625" ID x 1.375" OD x 0.4331"

- ball (See Note A)

2шт.

8

ZA400075

PULLEY

SHEAVE (See Note A)

1шт.

9

HA4457

SPACER

- pipe, 1/2 x 5/8 inch (See Note A)

1шт.

10

ZA400077

BRACKET

- shield (See Note A)

1шт.

11

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- flat, 21/32 x 1-5/16 x 5/64 inch (17 x 33 x 2 mm) (See Note A)

1шт.

12

ZA400211

BRACE

- tie (See Note A)

1шт.

13

NSS

NOT SOLD SEPARAT

DECAL - belt and clutch instruction (See Note A)

1шт.

14

ZA400776

CHANNEL

- right frame

1шт.

15

ZA400068

BRACE

ASSEMBLY - rear

1шт.

16

ZA764771

PRODUCT GRAPHIC

DECAL - warning, no riders

1шт.

17

ZA400067

BRACE

- diagonal

1шт.

18

ZA400653

PLATE

- lower

1шт.

19

1265870C91

SUPPORT

ASSEMBLY - upper

1шт.

20

1336824C1

PRODUCT GRAPHIC

DECAL - caution, general safety

1шт.

21

ZA400775

CHANNEL

- left frame

1шт.

22

ZA400732

BRACKET

- left anchor (See Note B)

1шт.

23

454174

PLUG - button, 15/16 inch diameter (See Note A)

2шт.

24

ZA400822

PACKAGE

- channel gusset (Prior to P.I.N. 000921)

1шт.

NSS

NOT SOLD SEPARAT

GUSSET

4шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - installing

1шт.
