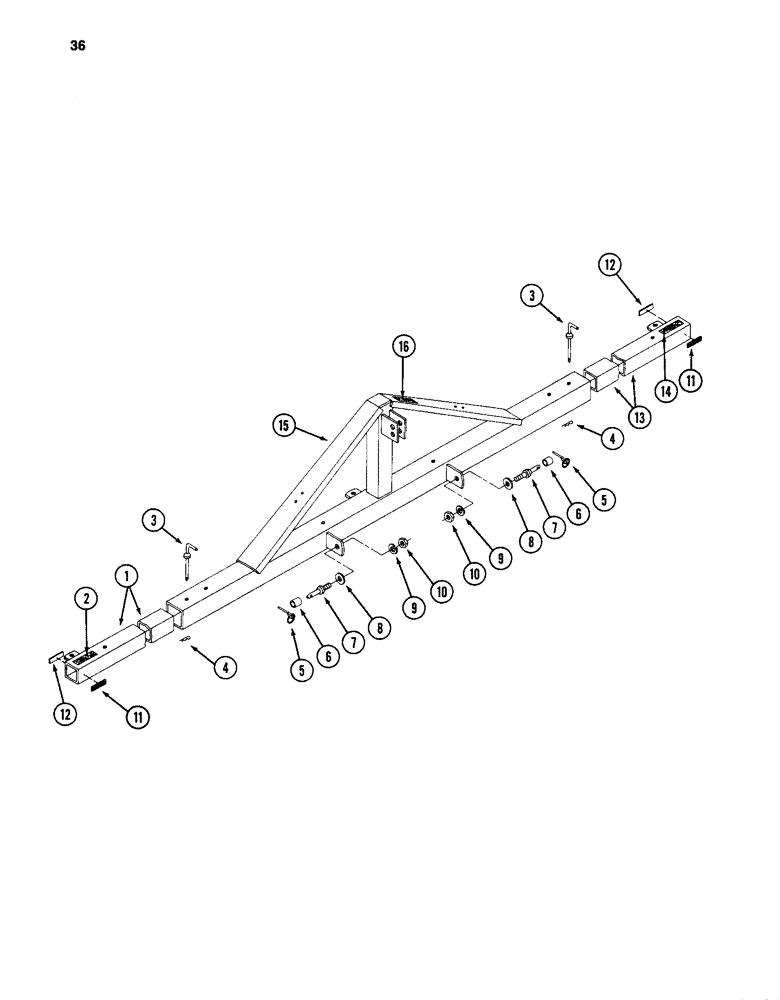

Запчасти Case IH 86 (36) - DUAL HITCH

1

1253995C91

TUBE

ASSEMBLY - right

1шт.

2

NSS

NOT SOLD SEPARAT

DECAL - important

1шт.

3

ZA722152

PIN

ASSEMBLY - frame

2шт.

4

480523R1

HAIR PIN COTTER

2шт.

5

D33805

PIN

- linch

2шт.

6

ZA400734

SPACER

- 57/64 ID x 1-1/8 OD x 1-7/8 inch long (Category I to Category II)

2шт.

6

ZA400735

SPACER

- 1-9/64 ID x 1-7/16 OD x 1-7/8 inch long (Category II to Category III)

2шт.

7

525921R1

STUD

PIN - link

2шт.

8

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

- flat, 29/32 x 1-1/2 x 1/4 inch (23 x 38 x 6 mm)

2шт.

9

NLS

NO LONGER SERVICED

7/8"

2шт.

10

426767

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

11

1284365C1

REFLECTOR,Reflector Amber

- amber

2шт.

12

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

13

1253994C91

TUBE

ASSEMBLY - left

1шт.

14

NSS

NOT SOLD SEPARAT

DECAL - important

1шт.

15

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY

1шт.

16

1336824C1

PRODUCT GRAPHIC

DECAL - caution (No Riders)

1шт.
