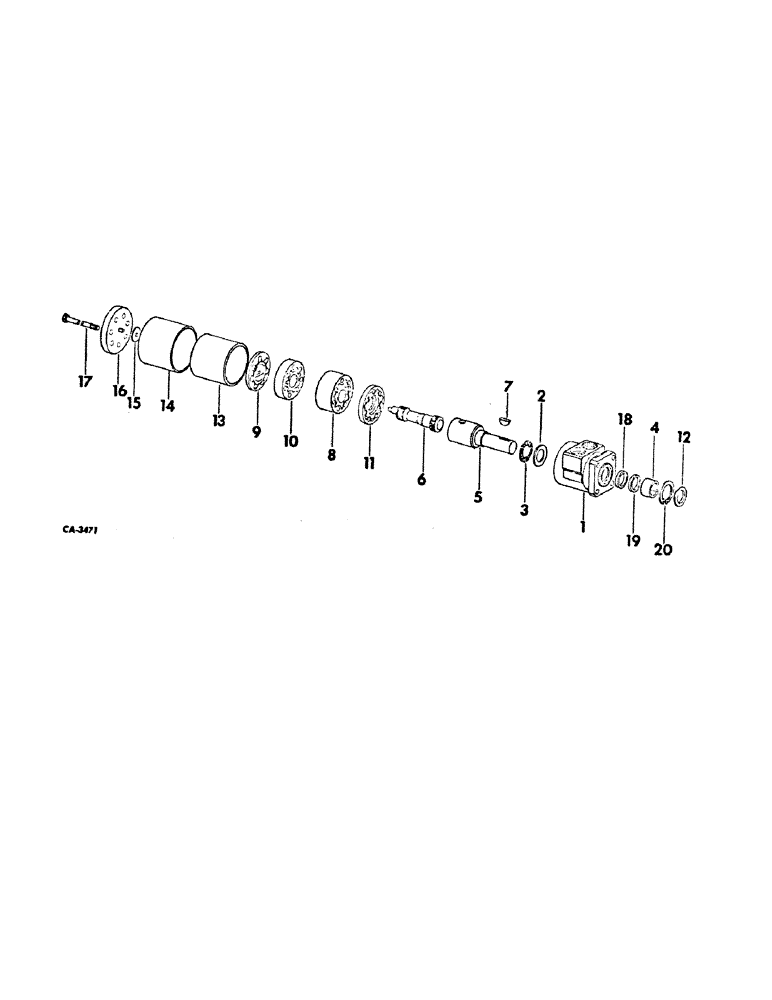

Запчасти Case IH 8 (E-8) - HYDRAULIC MOTOR / HYDRAULIC EQUIPMENT

59074C91

MOTOR ASSY, hydraulic

1шт.

1

59325C1

HOUSING ASSY

1шт.

2

619174C1

THRUST WASHER

WASHER, thrust

1шт.

3

619150C91

BEARING

thrust

1шт.

4

539671R91

BEARING, needle

1шт.

5

59326C1

SHAFT, coupling

1шт.

6

59327C1

LINK, drive

1шт.

7

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

8

59328C1

ROTOR ASSY

1шт.

9

59329C1

COMMUTATOR & RING ASSY

1шт.

10

59330C1

MANIFOLD

1шт.

11

59331C1

SPACER

1шт.

12

59338C1

SEAL, dirt

1шт.

13

59332C1

SEAL, rotor

1шт.

14

59333C1

RETAINER, seal

1шт.

15

535100R1

THRUST WASHER

1шт.

16

59334C1

PLATE ASSY, end

1шт.

17

59335C1

BOLT, 5/16-24 x 4-3/8 special hex-hd

7шт.

18

59336C1

SEAL, retainer

1шт.

19

59337C1

SPACER

1шт.

20

58102R1

SNAP RING,1.312", Int, #131

1шт.

542007R1

HYDRAULIC HOSE,0.50" ID x 220.00", SAE 100R1

HOSE ASSY, hyd 1/2 ID x 220 in., tractors w/rear remote hydraulic outlets

2шт.

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, tractors w/rear remote hydraulic outlets

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

540004R1

HOSE ASSY, hyd 1/2 ID x 155 in., tractors w/front remote hydraulic outlets

2шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, hyd male, for International 06 and 56 series tractors w/remote hyd outlets and 66 series tractors w/front only remote hyd outlets

1шт.

544787R91

COUPLING, BREAK AWAY

COUPLING ASSY, hyd male, for International 66 series tractors w/rear remote hydraulic outlets

2шт.

326078R1

CLAMP

hose

3шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

2шт.

371291R97

CYLINDER

ASSY, 2-1/2 x 8 double acting hydraulic, refer to cyl-1 for components

1шт.

363137R94

PACKAGE

KIT, hydraulic cylinder o-ring and seal service

1шт.
