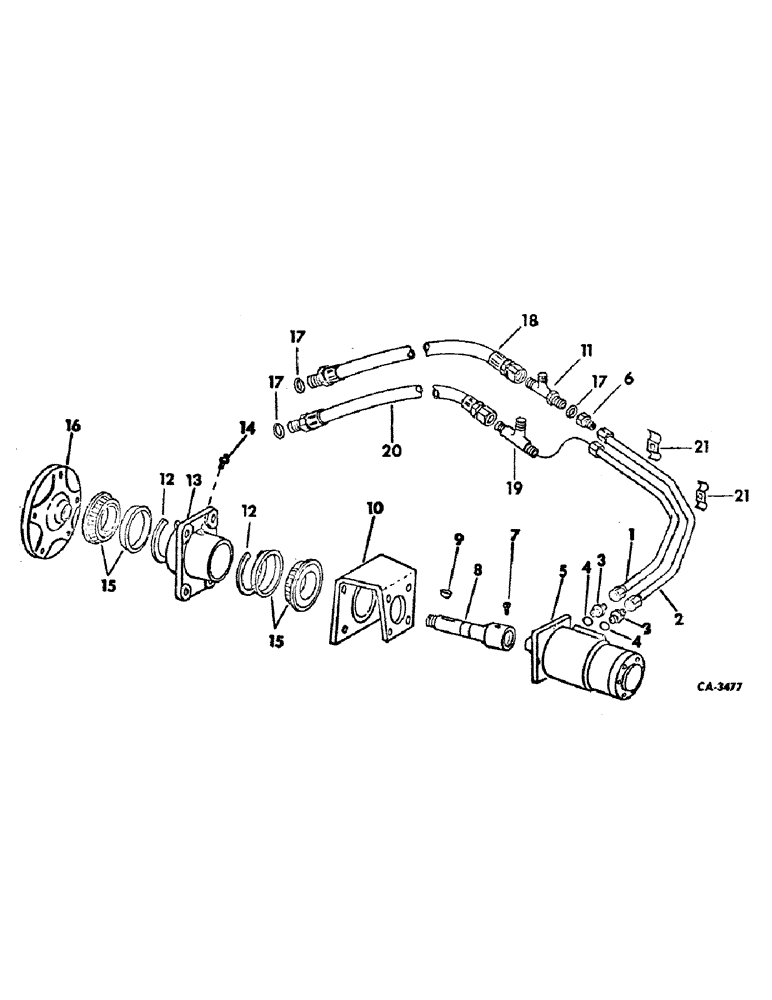

Запчасти Case IH 8 (E-5) - BASKET DRIVE

1

59077C1

TUBE ASSY, upper hydraulic

1шт.

2

59076C1

TUBE ASSY, lower hydraulic

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

4

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

2шт.

5

59074C91

MOTOR ASSY, hydraulic, for component details refer to hydraulic motor listing

1шт.

6

202858C91

VALVE

one way hydraulic line

1шт.

7

191951

SCREW,Hdls Hex Skt, 5/16" - 18 x 3/4", Cup Pt

5/16-18 x 3/4 C-Z hex-soc cup-pt set

1шт.

120376

NUT,5/16"-18, G5

1шт.

8

541198R1

SHAFT

drive

1шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 C-Z

1шт.

69442D

NUT

3/4-16 slt hex. jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

9

117979

KEY

5/16 x 1-1/8 Woodruff C

1шт.

10

59075C1

BRACKET, motor RH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

4шт.

540843R1

SCREW

3/8-16 x 3/4 C-Z flange

4шт.

11

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

7/8-14 C-Z 37 deg hyd flared tube adj str thd

1шт.

12

457381R1

RING

retaining

2шт.

13

473360R1

HOUSING

HUB, spider wheel bearing

1шт.

14

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap. lub

1шт.

15

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSY W/SEAL, roller

2шт.

16

473359R1

HUB

spider wheel

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

5шт.

540842R1

NUT

7/16-14 C-Z hex. flange lock

5шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

3шт.

18

60510C1

HOSE ASSY, 32 in. hydraulic

1шт.

19

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube 3-way

1шт.

20

467051R91

HOSE ASSY.

HOSE ASSY, 26 in. hydraulic

1шт.

21

515030R1

CLAMP

hose

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

2шт.
