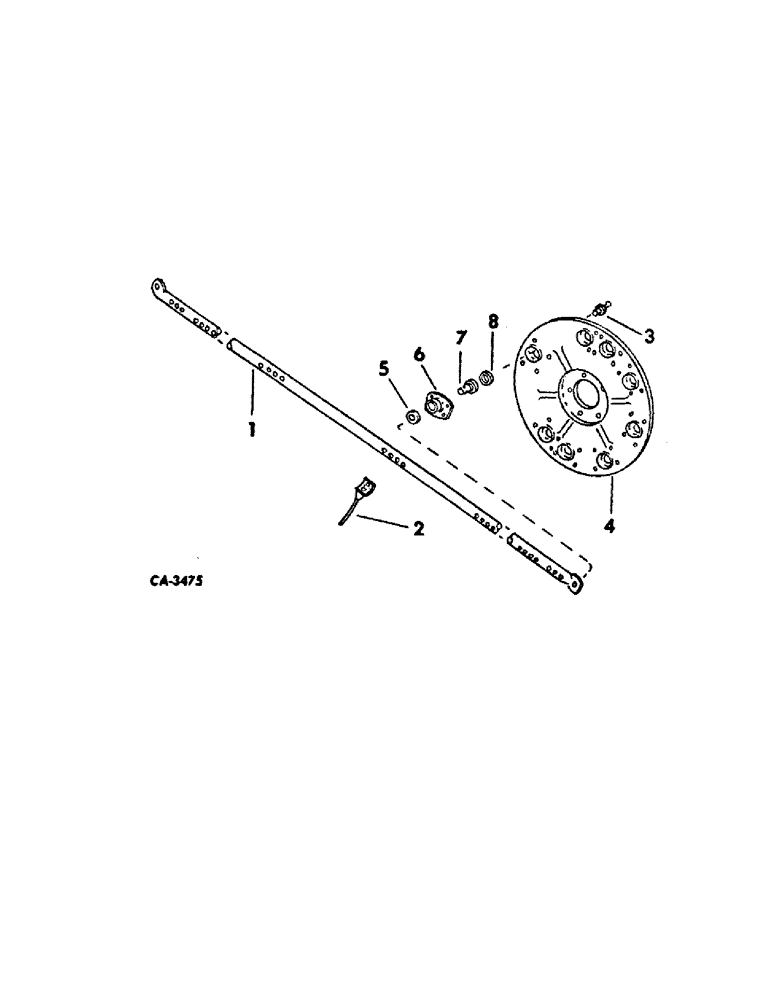

Запчасти Case IH 8 (E-4) - SPIDER DISC AND TOOTH BAR

1

59091C1

PIPE ASSY, tooth

4шт.

2

59092C1

TOOTH ASSY, rubber mounted

52шт.

541938R1

BOLT,Sq Nk, 5/16" - 18 x 2"

5/16 x 2 znd sq-nk crg

52шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z hex. flange lock

52шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap. lub

8шт.

4

473358R2

DISC

spider

2шт.

5

545569R1

SEAL

housing

8шт.

6

545568R1

RETAINER

HOUSING, tooth pipe bearing

8шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

32шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

32шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

32шт.

7

ST437

BALL BEARING,1.27" ID x 1.8504" OD x 0.5512"

BEARING, tooth pipe ball

8шт.

477243R1

WASHER,25/32" x 2" x .060"

25/32 x 2 x 16 ga C-Z

8шт.

473873R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 C-Z hex. two-way lock

8шт.

8

473383R1

RING

tooth pipe bearing

8шт.

545574R91

HOUSING

ASSY, used only to replace steel housing, 473381R1, composed of

1шт.

545568R1

RETAINER

HOUSING

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

4шт.

545569R1

SEAL

1шт.

469668R1

WASHER

4шт.

477243R1

WASHER,25/32" x 2" x .060"

1шт.
