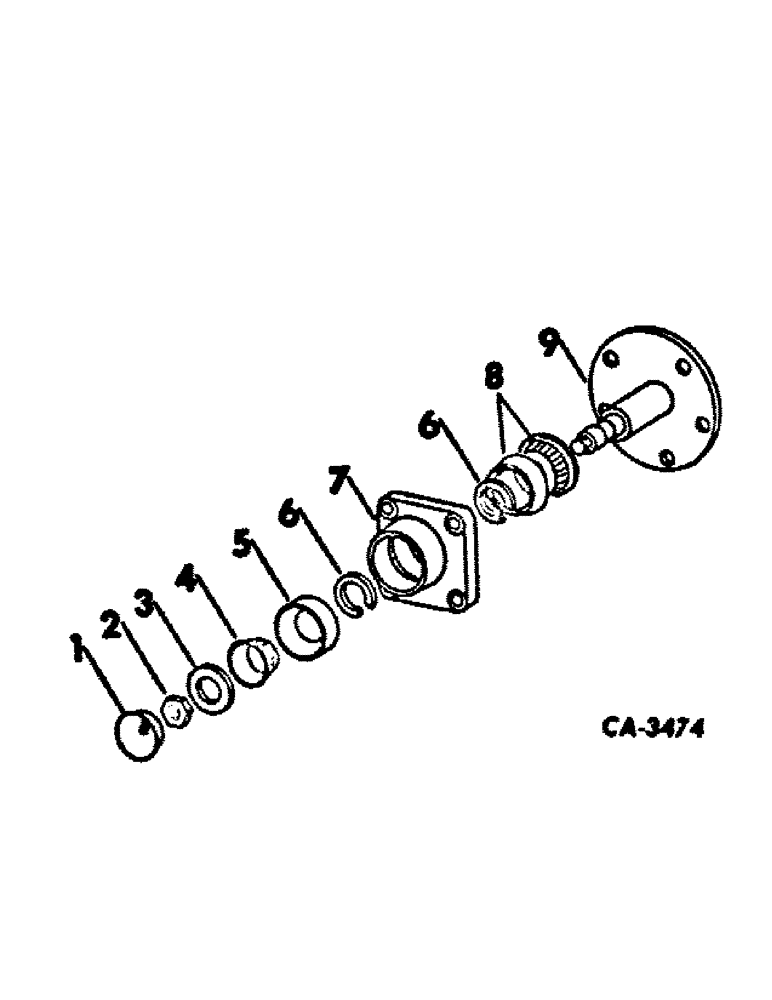

Запчасти Case IH 8 (E-3) - SPIDER DISC SHAFT AND BEARINGS

1

663906R1

CAP

wheel hub

1шт.

2

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 C-Z slt hex.

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

1шт.

3

446257

WASHER,3/4" x 1 3/4" x .148"

.812 x 1.75 x .122 znd

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, roller cone

1шт.

5

651817R1

BEARING CUP

BEARING, roller cup

1шт.

6

457381R1

RING

retaining

2шт.

7

473363R1

HOUSING

HUB, used on right end frame

1шт.

607895R1

WASHER

.531 x 1 x .105 znd

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

4шт.

8

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSY W/SEAL, roller

1шт.

9

473364R92

NOZZLE HOLDER

SHAFT ASSY, basket

1шт.

180144

RETAINER

7/16-14 x 7/8 znd hex-hd cap

5шт.

540842R1

NUT

7/16-14 C-Z hex. flange lock

5шт.
