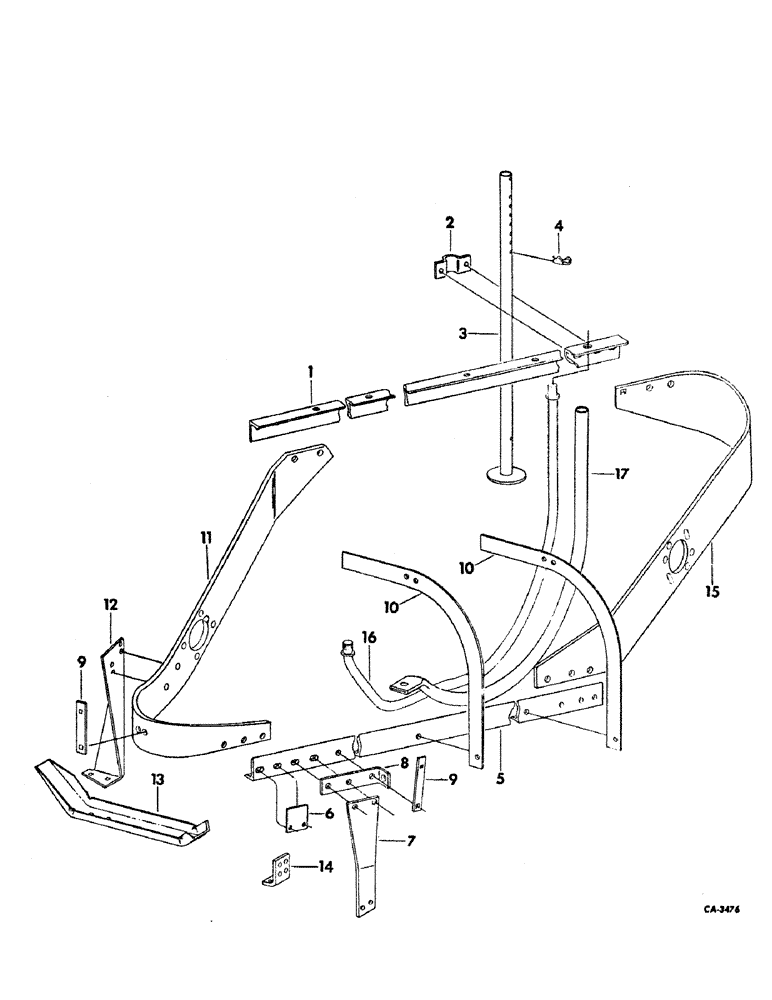

Запчасти Case IH 8 (E-2) - BASKET

1

59078C1

ANGLE, front frame

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

23930R1

WASHER, .531 x 1.25 x .06 znd

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

4шт.

2

59079C1

BRACKET, stand

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

1шт.

3

59080C1

STAND ASSY

1шт.

4

473865R91

LINCH PIN

PIN ASSY, quick attachable

1шт.

22946R1

PIN,5/16" x 1 3/4"

Split (Cotter), 5/16" x 1 3/4"

1шт.

5

59082C1

ANGLE, rear frame

1шт.

6

59083C1

PLATE, safety tape

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

3шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

5шт.

7

59270C1

BRACKET, rear mounting

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1/2-13 C-Z hex. flange lock

4шт.

8

59084C1

BRACKET, stabilizer

1шт.

9

59085C1

BRACKET, hyd tubes

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 znd sq-nk crg

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

2шт.

10

59086C1

ANGLE, basket stiffener

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/4 znd hex-hd cap

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8-11 znd hex. flange lock

2шт.

11

59087C1

FRAME, end

1шт.

12

59268C1

BRACKET, shoe mounting front

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

2шт.

13

59271C1

SHOE, gage

1шт.

493279R1

BOLT, 3/8 x 1-1/8 znd no. 3 hd plow

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

4шт.

59269C1

BRACKET, shoe mounting

1шт.

15

59088C1

FRAME, end

1шт.

477913R1

BOLT, 1/2 x 1-1/2 long nk crg

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

1шт.

16

59089C1

STRIPPER

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8-11 C-Z hex. flange lock

8шт.

17

59090C1

STRIPPER, end

1шт.

486180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT, 1/2-13 x 2-1/4 znd sq-nk crg

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

3шт.

480093R1

TOOL

stripper straightening

1шт.
