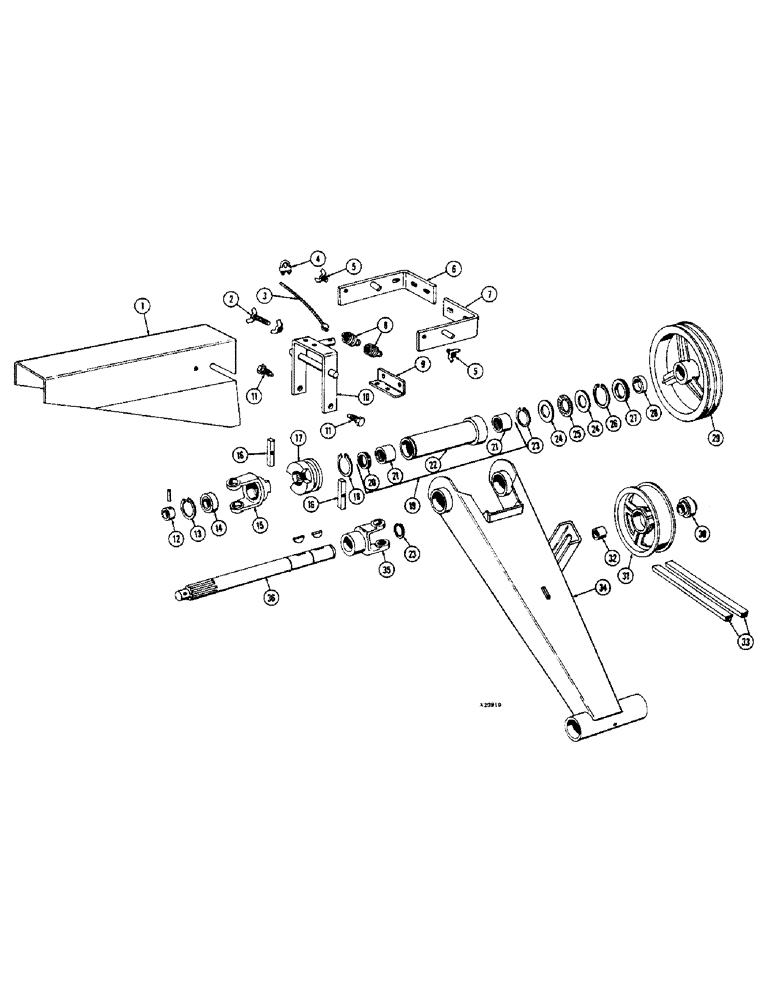

Запчасти Case IH 401 (14) - CLUTCH ASSEMBLY

1

T38026

SHIELD (YR. 68-)

1шт.

2

T38045

BOLT - wing, 5/16" x 1-3/4" (YR. 68-)

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16" N.C.

1шт.

3

T38038

CABLE - clutch (YR. 68-)

1шт.

4

T13418

CLAMP - w/nuts (YR. 68-)

1шт.

5

T38046

BOLT - wing, 5/16" x 1/2" (YR. 68-)

2шт.

6

T38023

SUPPORT - fork, L.H. (YR. 68-)

1шт.

7

T38029

SUPPORT - fork, R.H. (YR. 68-)

1шт.

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

8

O5731AB

SPRING

- 1-1/8" O.D. x 1-3/4" long 6-1/2 coils (YR. 68-)

2шт.

9

T38030

ANCHOR - spring (YR. 68-)

1шт.

10

T38025

FORK (YR. 68-)

1шт.

11

T38021

BOLT - shoulder (YR. 68-)

2шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

12

T38041

COLLAR (YR. 68-)

1шт.

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, (YR. 68-) 3/16" x 1", Slotted

1шт.

13

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, (YR. 68-) 1.375", Int, #137

1шт.

14

10231K

BEARING (YR. 68-)

1шт.

15

T38027

YOKE - u-joint (See page 16 for parts list) (YR. 68-)

1шт.

16

T38020

BLOCK - clutch guide (YR. 68-)

2шт.

17

T38018

COLLAR - drive (YR. 68-)

1шт.

18

T37909

SNAP RING,#150, Ext

Ring, Snap, (YR. 68-) #150, Ext

1шт.

19

T38043

HOUSING & BEARING ASSEMBLY (YR. 68-)

1шт.

20

A28211

OIL SEAL

(YR. 68-)

1шт.

21

G10420

NEEDLE BEARING

BEARING (YR. 68-)

2шт.

22

NSS

NOT SOLD SEPARAT

HOUSING (YR. 68-)

1шт.

23

A34428

SNAP RING,#98, Ext

Ring, Snap, (YR. 68-) #98, Ext

2шт.

24

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

- thrust (YR. 68-)

2шт.

25

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST (YR. 68-)

1шт.

26

T38039

SNAP RING,1.625", Int, #162

Ring, Snap, , (YR. 68-) 1.625", Int, #162

1шт.

27

T38044

SEAL (YR. 68-)

1шт.

28

T38040

RING - spacer (YR. 68-)

1шт.

29

T1995

PULLEY (YR. 66-)

1шт.

30

T32178

BALL BEARING,0.515" ID x 1.5748" OD x 0.72"

BEARING - pulley (YR. 66-)

1шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- 1/2" x 2-1/4" N.C. hex Z.P.

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

195-2057

WASHER - flat, 1-1/4" x 9/16" x #12 ga

1шт.

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

31

T1996

PULLEY - idler (YR. 66-)

1шт.

32

V30282

SPACER - idler pulley (YR. 66-)

1шт.

33

T32298

SET OF BELTS 0.66" W x 70.90" L, V-Belt, Matched pair (YR. 66-) 0.66" W x 70.90" L

1шт.

34

NSS

NOT SOLD SEPARAT

ARM - wheel, L.H., (See ref. 12 page 12) (YR. 68-)

1шт.

35

T32743

YOKE - u-joint (See page 16 for parts list) (YR. 66-)

1шт.

36

T38019

SHAFT (YR. 68-)

1шт.

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

2шт.
