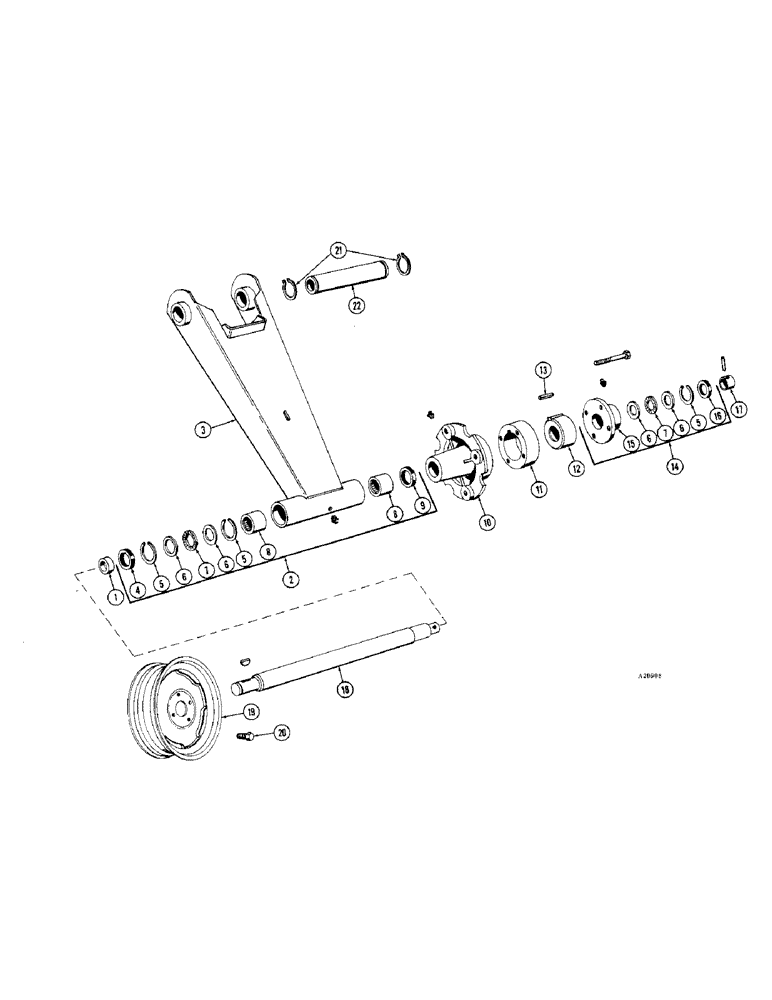

Запчасти Case IH 401 (10) - WHEEL ARM & AXLE, RIGHT HAND TWO WHEEL DRIVE

1

T38040

COLLAR (YR. 68-)

1шт.

2

T38032

ARM - wheel, R.H. assembly (YR. 68-)

1шт.

3

NSS

NOT SOLD SEPARAT

ARM - wheel, R.H. (YR. 68-)

1шт.

4

T38044

SEAL (YR. 68-)

1шт.

5

T38039

SNAP RING,1.625", Int, #162

Ring, Snap, , (YR. 68-) 1.625", Int, #162

2шт.

6

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

- thrust (YR. 68-)

2шт.

7

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST (YR. 68-)

1шт.

8

T32255

BEARING (YR. 68-)

2шт.

9

A35919

OIL SEAL

(YR. 68-)

1шт.

10

T1990

HUB (YR. 68-)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

11

T32192

HOUSING - clutch (YR. 66-)

1шт.

12

T32187

CAM - clutch (YR. 66-)

1шт.

13

T32194

KEY (YR. 66-)

1шт.

14

T38050

CAP - hub thrust assembly (YR. 68-)

1шт.

15

NSS

NOT SOLD SEPARAT

CAP - hub thrust (YR. 68-)

1шт.

5

T38039

SNAP RING,1.625", Int, #162

Ring, Snap, , (YR. 68-) 1.625", Int, #162

1шт.

6

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

- thrust (YR. 68-)

2шт.

7

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST (YR. 68-)

1шт.

16

T38044

SEAL (YR. 68-)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

17

T38037

COLLAR (YR. 68-)

1шт.

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

18

T38052

AXLE (YR. 68-)

1шт.

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

1шт.

19

T25852

RIM

WHEEL - disk, 14" (YR. 66-)

1шт.

19

F60951

WHEEL

- disk, 15" (YR. 66-)

1шт.

20

A29912

BOLT

BOLT - wheel (YR. 66-)

4шт.

21

R13338

SNAP RING,#150, Ext

Ring, Snap, (YR. 66-) #150, Ext

2шт.

22

T32247

PIN - wheel arm, R.H. (YR. 66-)

1шт.
