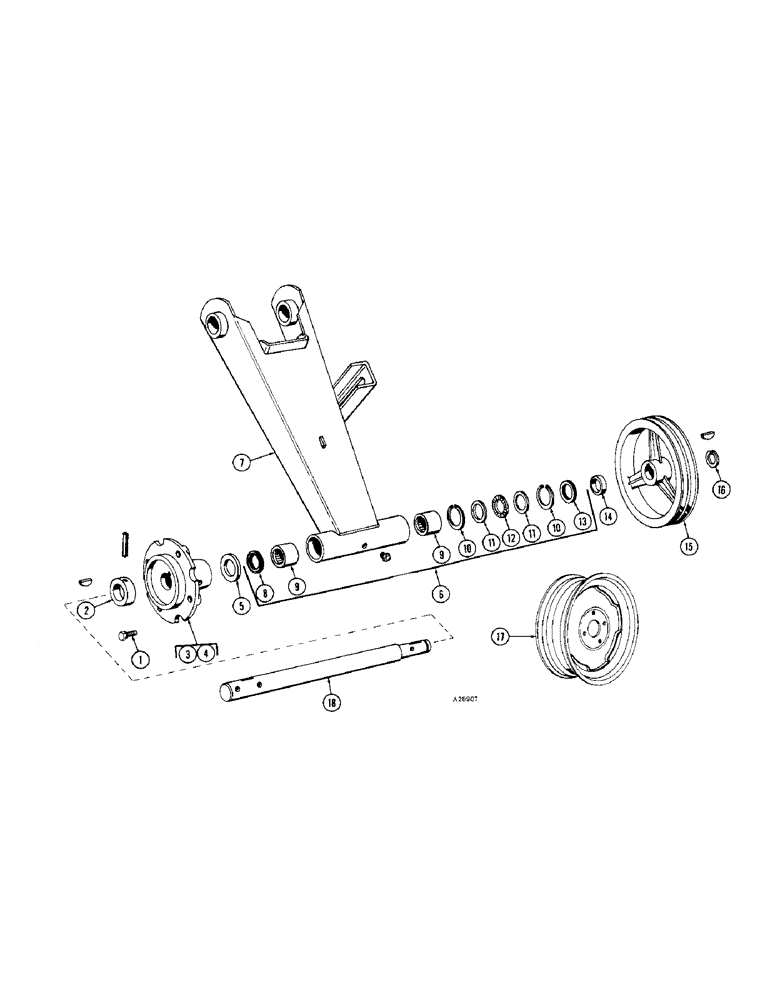

Запчасти Case IH 401 (08) - WHEEL ARM & AXLE, LEFT HAND ONE WHEEL DRIVE

1

A29912

BOLT

BOLT - wheel (YR. 66-)

4шт.

2

T38063

COLLAR (YR. 1968)

1шт.

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

3

T1992

HUB - (See T2152) (YR. 66-67)

1шт.

4

T2152

HUB (YR. 68-)

1шт.

5

T38064

WASHER (YR. 68-)

1шт.

6

T38031

ARM - wheel L.H. assembly (YR. 68-)

1шт.

7

NSS

NOT SOLD SEPARAT

ARM - wheel, L.H. (YR. 68-)

1шт.

8

A35919

OIL SEAL

(YR. 68-)

1шт.

9

T32255

BEARING (YR. 66-)

2шт.

10

T38039

SNAP RING,1.625", Int, #162

Ring, Snap, , (YR. 68-) 1.625", Int, #162

2шт.

11

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

- thrust (YR. 68-)

2шт.

12

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST (YR. 68-)

1шт.

13

T38044

SEAL (YR. 68-)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

14

T38040

COLLAR (YR. 68-)

1шт.

15

T1995

PULLEY (YR. 66-)

1шт.

16

A34428

SNAP RING,#98, Ext

Ring, Snap, (YR. 68-) #98, Ext

1шт.

17

T25852

RIM

WHEEL - disk, 14" (YR. 66-)

1шт.

17

F60951

WHEEL

- disk, 15" (YR. 66-)

1шт.

18

T38062

AXLE (YR. 68-)

1шт.

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

2шт.

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

131-703

LOCK NUT

LOCKNUT - 5/16"

1шт.
