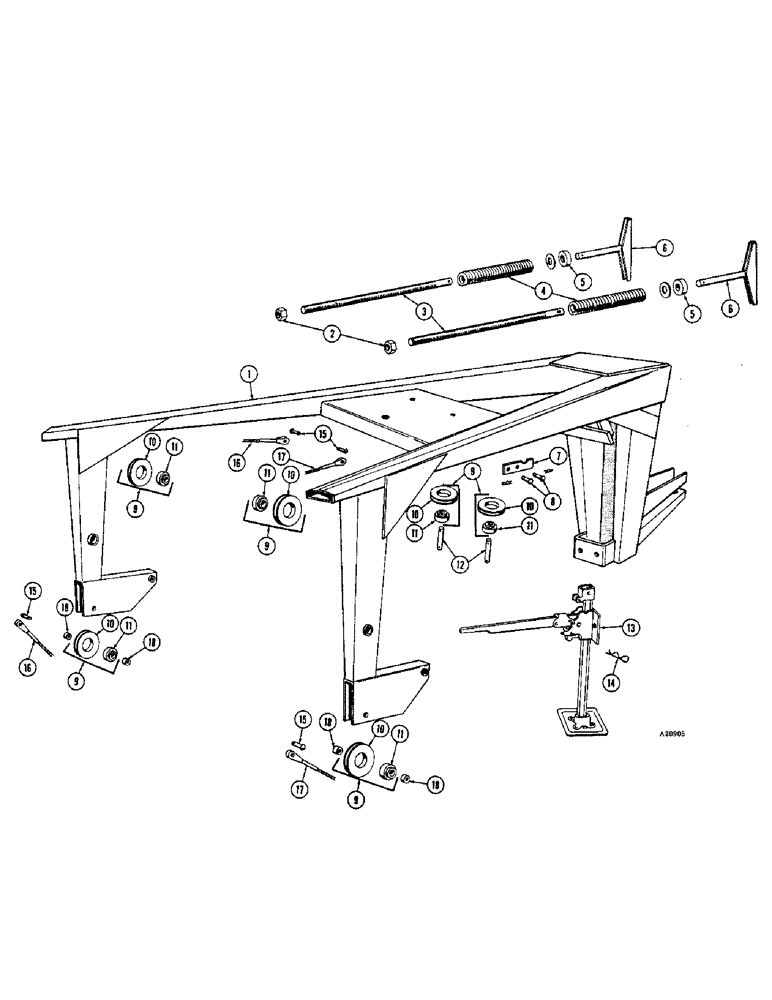

Запчасти Case IH 401 (04) - FRAME

1

T38058

FRAME (YR. 68-)

1шт.

2

T32279

NUT - hex, 1" (YR. 66-)

2шт.

3

T32277

SCREW - elevating (YR. 66-)

2шт.

4

V13820

SPRING - elevating (YR. 66-)

2шт.

5

T17337

BEARING - thrust (YR. 66-)

2шт.

6

T32671

EXTENSION - elevating screw (YR. 66-)

2шт.

195-109

WASHER,3/4"

- 2" x 13/16" Z.P.

2шт.

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

7

T32284

LOCK - ram anchor (YR. 66-)

1шт.

8

O4524N

RIVET - rd. hd. (5/16" x 1-3/8") (YR. 66-)

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

9

T32171

PULLEY - cable, cpt. (YR. 66-)

6шт.

10

NSS

NOT SOLD SEPARAT

PULLEY (YR. 66-)

6шт.

11

T32178

BALL BEARING,0.515" ID x 1.5748" OD x 0.72"

BEARING (YR. 66-)

6шт.

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex, Z.P.

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.

12

T32219

PIN - cable pulley (1/2" x 3-9/16") (YR. 66-)

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

13

T33474

JACK

(YR. 66-)

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.

14

F60838

SPLIT PIN

HAIRPIN (YR. 66-)

1шт.

15

A20726

PIN - cable (YR. 66-)

4шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

16

T32176

CABLE, L. H. - reel lift (YR. 66-)

1шт.

17

T32177

CABLE, R. H. - reel lift (YR. 66-)

1шт.

18

T30946

BUSHING

SPACER - rear, leg pulley (YR. 66-)

4шт.
