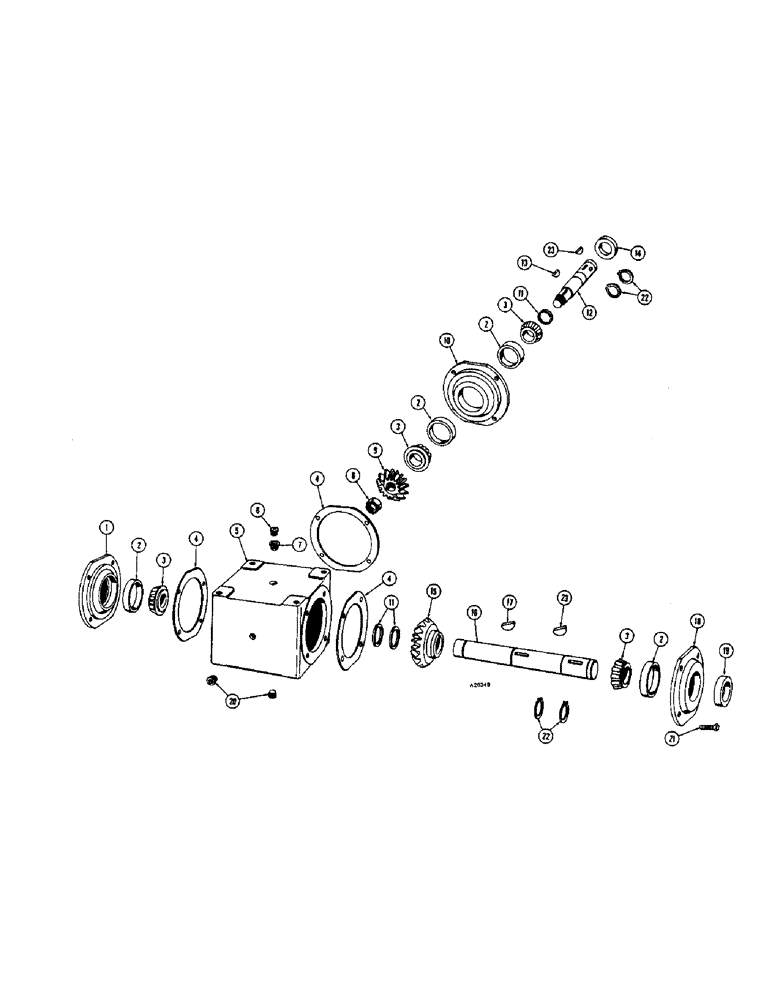

Запчасти Case IH 401 (22) - GEAR BOX

T32223

BOX - gear, cpt. (Use T38060) (YR. 66-67)

1шт.

T38060

BOX - gear, cpt. (YR. 68-)

1шт.

1

T2008

CAP - closed (YR. 66-)

1шт.

2

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - bearing (YR. 66-)

4шт.

3

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - bearing (YR. 66-)

4шт.

4

T32754

GASKET (YR. 66-)

1шт.

5

T2006

CASE (YR. 66-)

1шт.

6

T32763

X

VENT - relief, pressure (YR. 66-)

1шт.

7

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING (YR. 66-)

1шт.

8

131-37

LOCK NUT,3/4"-16

NUT - 3/4" N.F. (YR. 66-)

1шт.

9

T32757

GEAR - pinion, 16T (YR. 66-)

1шт.

10

T32758

HOUSING - pinion (YR. 66-)

1шт.

11

A26949

RING, SNAP

RING - snap (YR. 66-)

3шт.

12

T32759

SHAFT - pinion (Does not have bolt hole) (YR. 66-67)

1шт.

12

T38053

SHAFT - pinion (YR. 68-)

1шт.

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

131-703

LOCK NUT

LOCKNUT - 5/16" N.C.

1шт.

13

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(YR. 66-) #9, 3/16" x 3/4"

1шт.

14

T32762

SEAL

(YR. 66-)

1шт.

15

T32755

GEAR - 24T (YR. 66-)

1шт.

16

T32756

SHAFT - cross (YR. 66-)

1шт.

17

126-24

WOODRUFF KEY,#15, 1/4" x 1"

(YR. 66-) #15, 1/4" x 1"

1шт.

18

T2007

CAP (YR. 66-)

1шт.

19

A23903

OIL SEAL

(YR. 66-)

1шт.

20

221-841

PLUG

- pipe, 1/4" N. P. T. (YR. 66-)

2шт.

21

61-516

HEX SOC SCREW,5/16"-18 x 1"

CAPSCREW - 5/16" x 1" N.C. (YR. 66-)

12шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

195-2024

WASHER,3/8" x 7/8" x .065"

- 7/8" O.D. x 13/32" I.D. x 16 ga.

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

B18208

SNAP RING,#100, Ext

(YR. 66-) #100, Ext

4шт.

23

126-24

WOODRUFF KEY,#15, 1/4" x 1"

(YR. 66-) #15, 1/4" x 1"

2шт.
