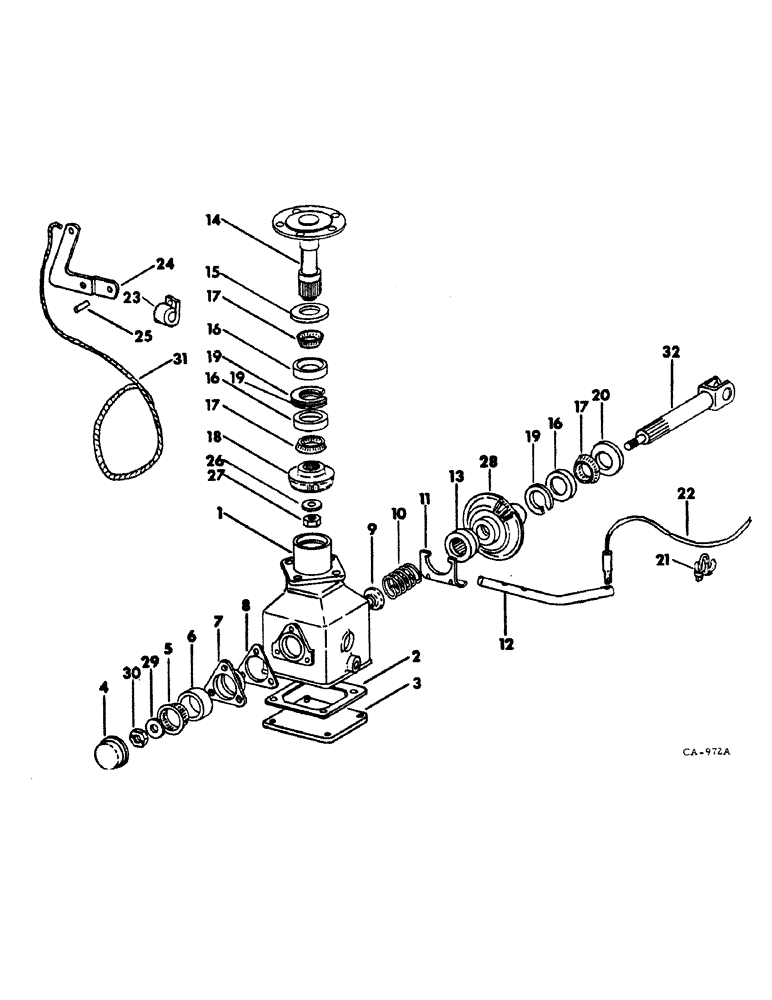

Запчасти Case IH 35 (D-08) - DRIVE, GROUND DRIVEN RAKES

1

457821R2

CASE

gear

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4 cast iron sq-hd pipe

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2 cast iron sq-hd pipe

1шт.

444598

PLUG

1 in. cast iron sq-hd pipe

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

4шт.

2

457823R1

GASKET

gear case

1шт.

3

457822R1

COVER

gear case

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

651194R1

CAP

dust

1шт.

5

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, roller cone

1шт.

5

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

6

651814R1

BEARING CUP

BEARING, roller cup

1шт.

7

540779R1

CAP

bearing

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd cap

3шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

8

540780R1

GASKET

1шт.

9

540778R1

CUP

RETAINER, spring

1шт.

10

540775R1

SPRING

compression

1шт.

11

540771R1

FORK

shifter

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 znd int-tooth lock

2шт.

12

540772R1

ROD

shift fork

1шт.

13

540774R3

CLUTCH

1шт.

14

540781R2

SHAFT

ASSY, output

1шт.

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

7/16-14 x 7/8 znd hex-hd cap

5шт.

540842R1

NUT

7/16-14 C-Z hex. flange lock

5шт.

15

540782R91

OIL SEAL

oil

1шт.

16

651817R1

BEARING CUP

BEARING, roller cup

3шт.

16

651817R1GV

BEARING CUP

Value, Bearing Cup

3шт.

17

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, roller cone

3шт.

18

GEAR, spider shaft, 20 teeth, not serviced separately, order matched gear set, 543112R91

1шт.

19

457381R1

RING

retaining

3шт.

20

464910R91

OIL SEAL

SEAL, oil

1шт.

21

480472R1

CLIP

wire rope, replaces 457797R1

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22

457798R91

CABLE

w/eye assy, throw-out lever

1шт.

Q1284

HEADED PIN,6.35mm OD x 19.05mm L

PIN, 1/4 x 3/4 std-hd

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23

GUIDE, cable, not serviced separately

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd cap

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

1шт.

24

457794R1

SUPPORT

LEVER, clutch throwout

1шт.

25

518083R1

WASHER

SPACER, clutch throwout lever

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

1шт.

26

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

27

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 C-Z slt hex.

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

1шт.

28

GEAR, clutch driven, 31 teeth, not serviced separately, order matched gear set, 543112R91

1шт.

29

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

30

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 C-Z slt hex.

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

1шт.

31

ROPE, 3/8 x 12 ft., purchase locally

1шт.

32

YOKE, stud, order joint assy, 540777R91

1шт.

543112R91

GEAR

SET, matched, consists of gear, clutch driven, 31 teeth (NSS), gear, spider shaft, 20 teeth (NSS)

1шт.
