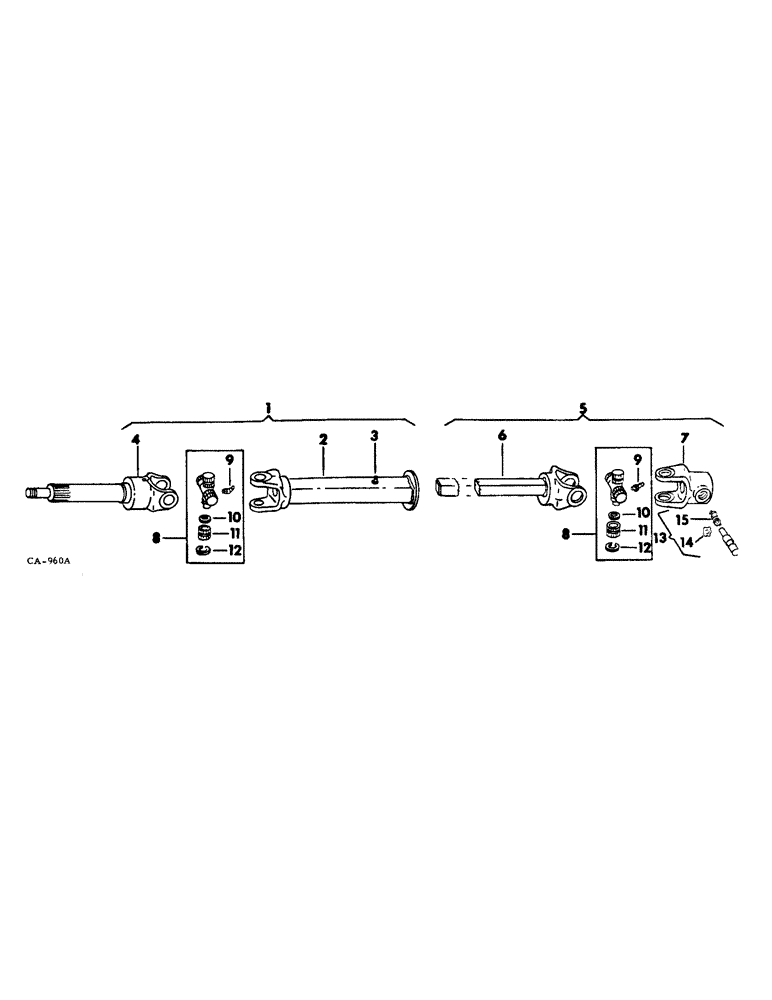

Запчасти Case IH 35 (D-07) - DOUBLE UNIVERSAL DRIVE JOINT

1

540777R91

JOINT

ASSY, rear gear box end

1шт.

2

541057R1

TUBE

YOKE AND TUBE

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 5/16 str drive type lub, Rockwell Standard

1шт.

REF# 3 IF YOUR CUSTOMER IS REQUESTING THE YOKE WITH A .375 DIAMETER HOLE IN IT HE SHOULD ORDER 546098R1.

1шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITIING, 3/16 hole lub, chain belt

1шт.

4

YOKE, stud, not serviced separately, order 540777R91

1шт.

5

540776R91

JOINT

ASSY, front axle end

1шт.

6

541056R1

YOKE

AND SHAFT

1шт.

7

134176A1

YOKE

ASSY (replaces 541059R91)

1шт.

has 6 splines with 1.25 id and is 1.820" between the ears.

1шт.

8

659262R91

U-JOINT SPIDER

CROSS ASSY, Rockwell Standard, optional W/480486R91

1шт.

8

480486R91

CROSS

ASSY, chain belt, replaces 541194R91, optional w/659262R91

1шт.

9

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle

1шт.

10

SEAL, cork, not serviced separately, order cross assy

4шт.

11

CUP, needle brg, not serviced separately, order cross assy

4шт.

12

661657R1

RING

snap, Rockwell Standard

4шт.

12

606177R1

SNAP RING

RING, snap, chain belt

4шт.

13

455346R21

PIN

ASSY

1шт.

14

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X

1шт.

15

455347R1

VALVE SPRING

SPRING, locking pin

1шт.
