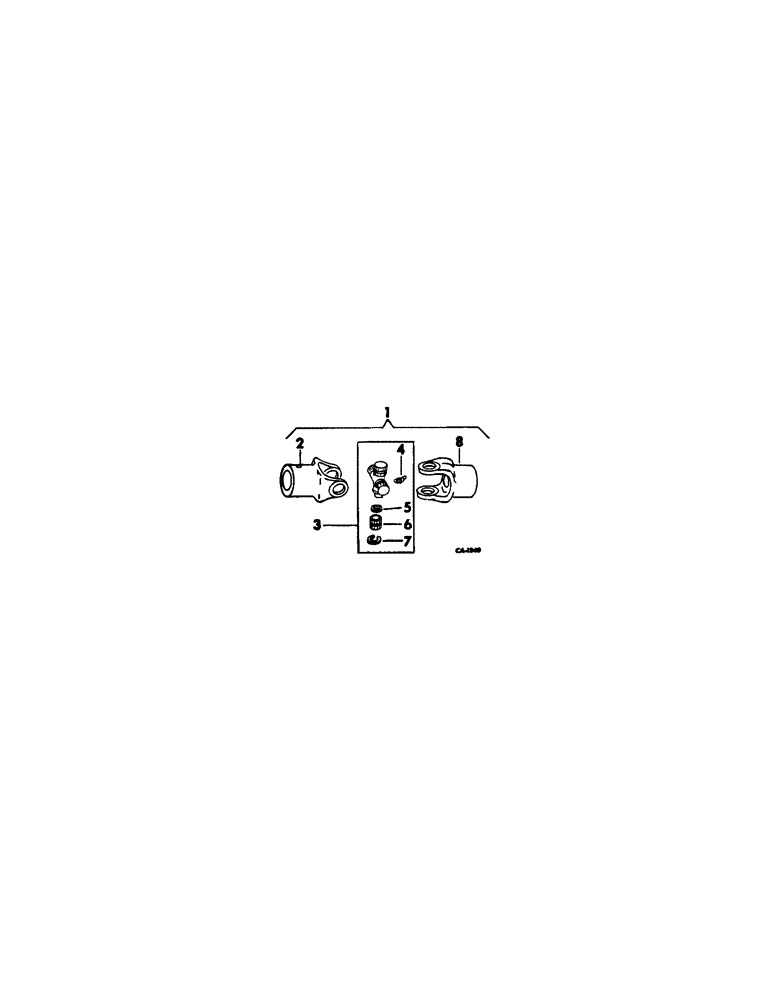

Запчасти Case IH 35 (D-07[A]) - SINGLE UNIVERSAL JOINT ASSY

1

540825R91

JOINT

ASSY, LH, composed of ref nos. 2, 3 and 8

1шт.

1

540826R91

JOINT

ASSY, RH, composed of ref nos. 3 and 8

1шт.

2

546098R1

YOKE

1 used for joint, 540825R91, 2 used for joint, 540826R91

1шт.

3

150635R92

SPIDER

CENTER CROSS KIT

2шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, cork, not serviced separately, order center cross kit 150635R92

4шт.

6

NSS

NOT SOLD SEPARAT

CUP, needle bearing, not serviced separately, order center cross kit, 150635R92

4шт.

7

357426R1

RING

snap

4шт.

8

546097R1

YOKE

for joint, 540825R91

1шт.
